Line Pressure/EPC Pressure Test

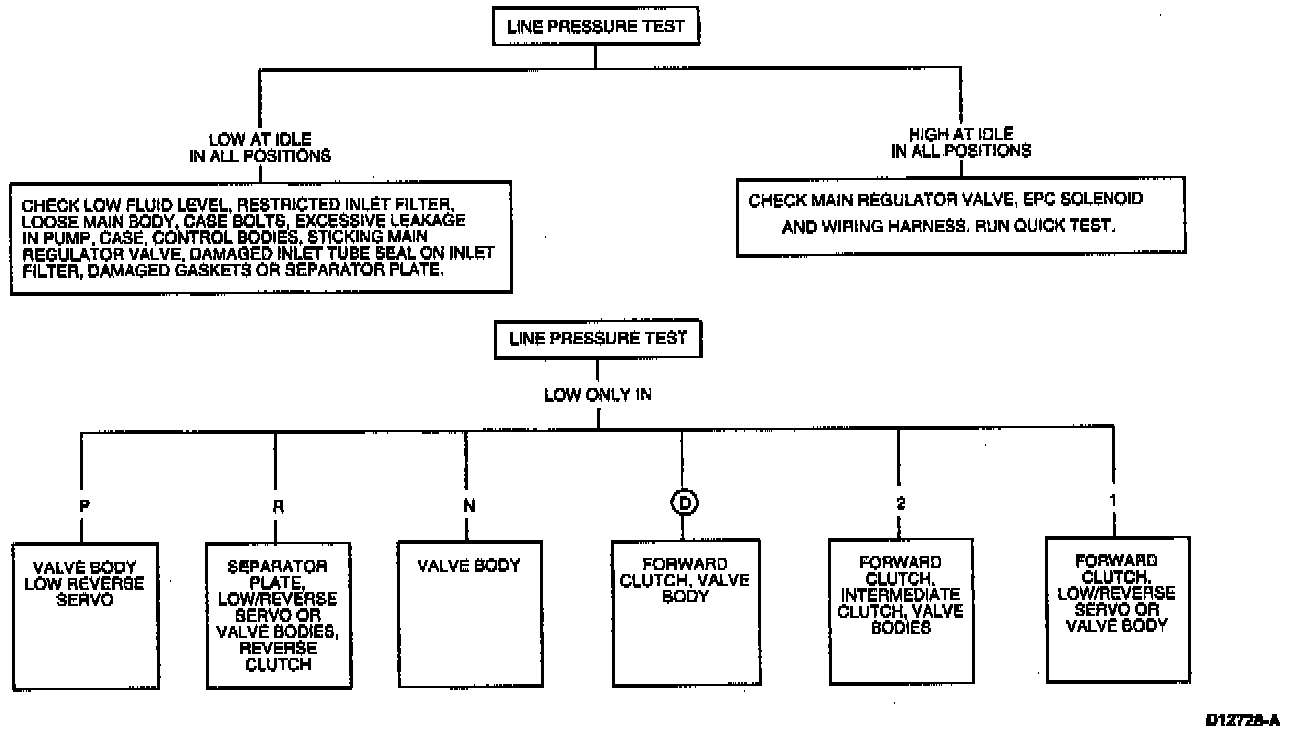

Line Pressure Test Chart:

CAUTION:
- Perform line pressure test prior to performing stall speed test. If line pressure is low at stall, do not perform stall speed test or further transmission damage will occur. Do not maintain Wide Open Throttle (WOT) in any transmission range For more than five seconds.
- Transmission tester must be removed from the transmission and the vehicle harness reinstalled to verify these pressures. Improper pressure readings may lead to improper parts replacement or internal damage.

PROCEDURE
This test verifies that the line pressure is within specification.

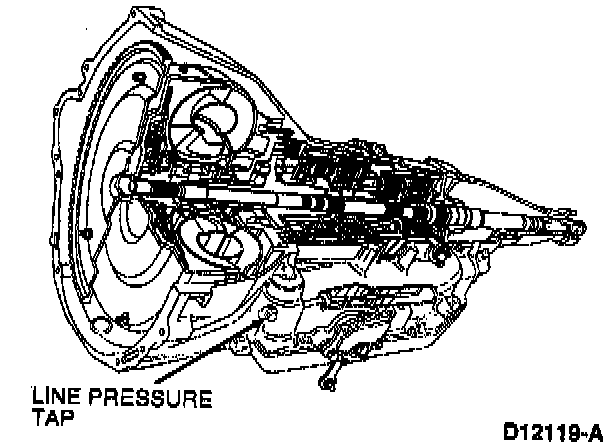

1. Connect pressure gauge to line pressure tap.

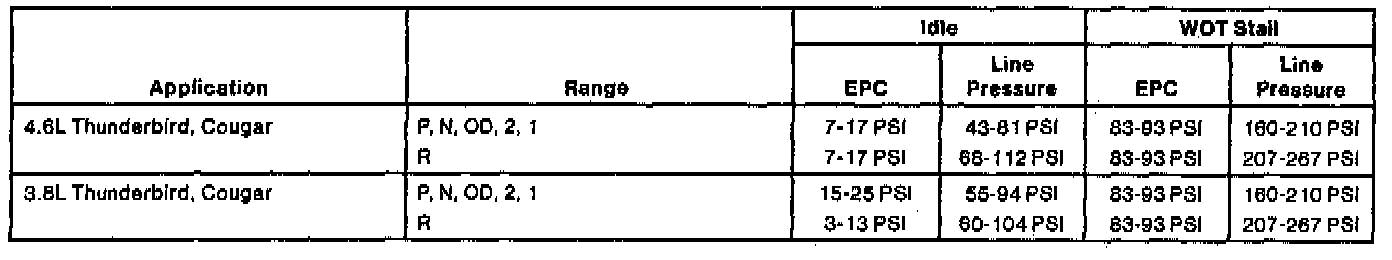

Chart No. 401. Pressure Reference.:

2. Start engine and check line pressures.
3. If line pressure is not within specification, check EPC pressure.

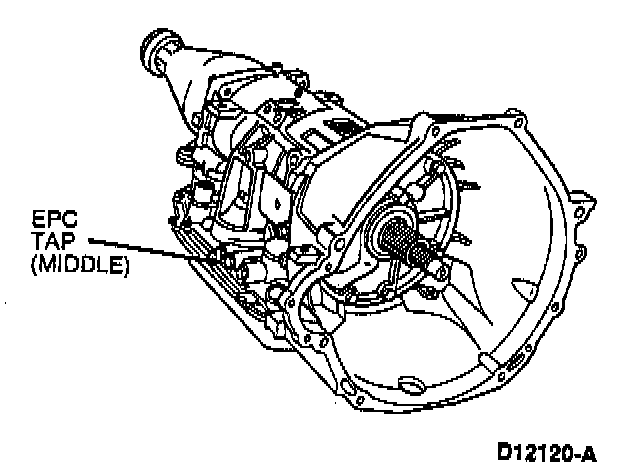

4. Connect pressure gauge to EPC pressure tap.
5. Restart engine and check EPC pressure.
- If EPC pressure is not within specification, perform Pinpoint Test E to diagnose EPC operation. Pinpoint Tests
- If EPC operation is OK, refer to Line Pressure Test Chart for line pressure concern causes.
