Sun Gear: Service and Repair

DISASSEMBLY

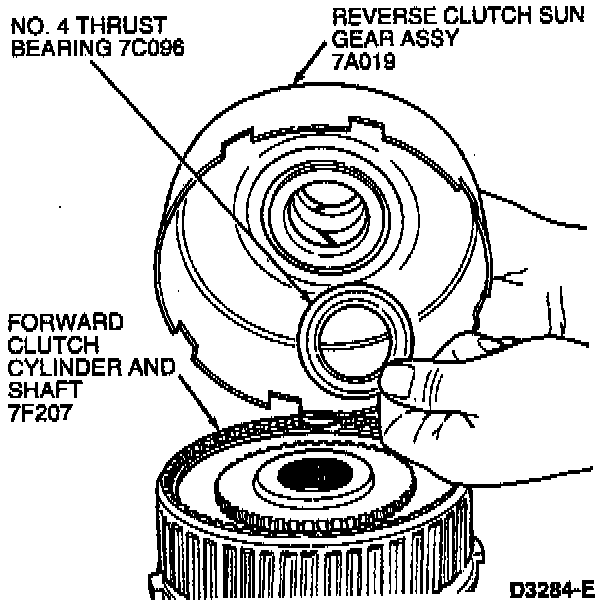

1. Remove the No. 4 thrust bearing from reverse sun gear assembly.

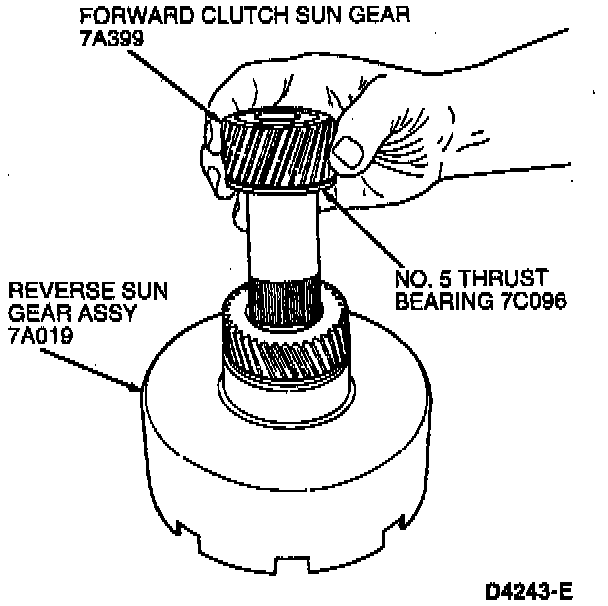

2. Remove forward clutch sun gear and No. 5 thrust bearing from reverse sun gear assembly.

ASSEMBLY

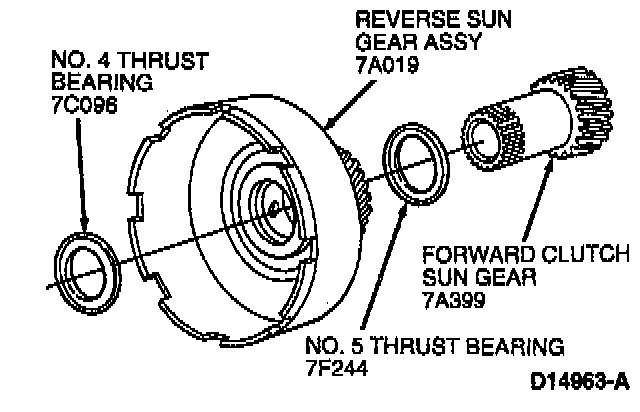

The forward clutch sun gear and reverse sun gear assembly is assembled as part of the transmission assembly procedure.
