Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Pinpoint Tests >> C: Transmission Control Indicator Lamp Not Operating Properly

C: Transmission Control Indicator Lamp Not Operating Properly

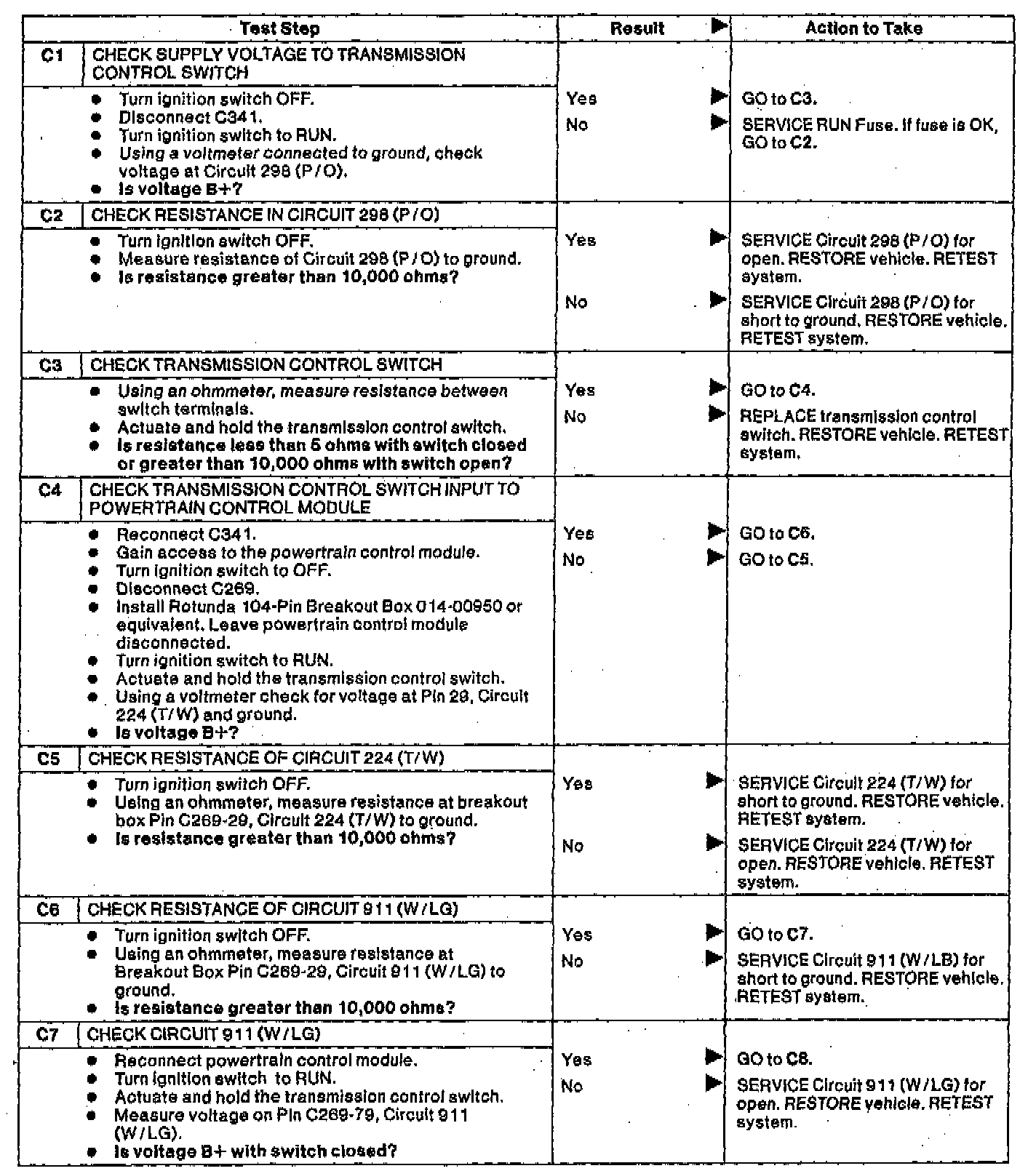

Part 1 Of 2:

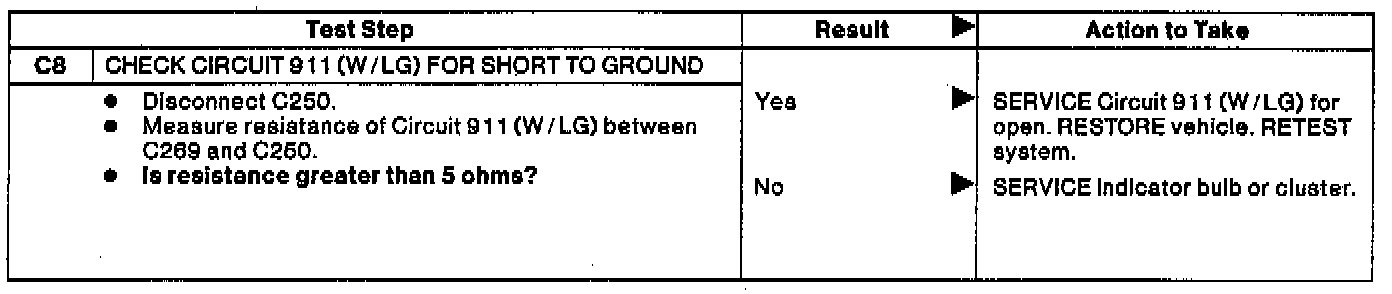

Part 2 Of 2:
