Output Shaft: Service and Repair

DISASSEMBLY

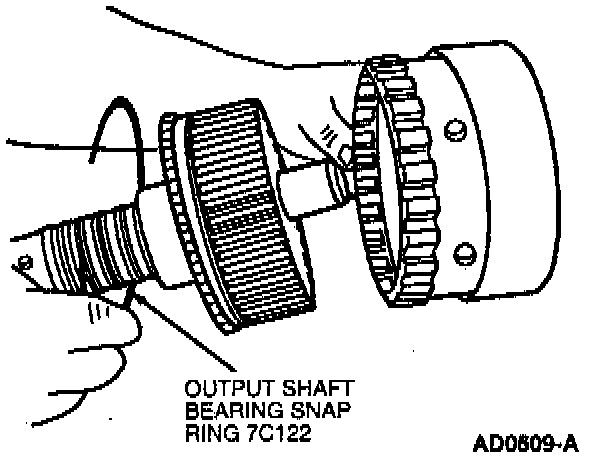

1. Remove snap ring retaining the output shaft hub to ring gear.





2. Separate output shaft from ring gear.

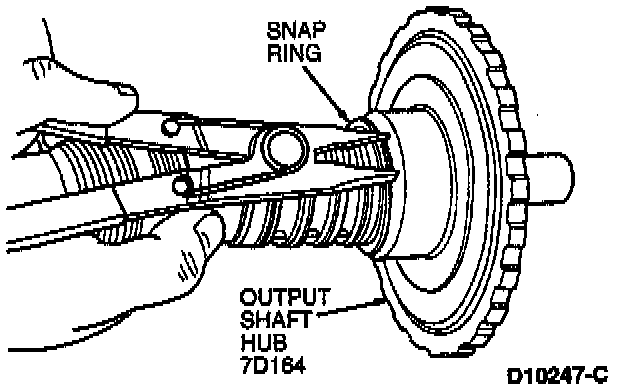

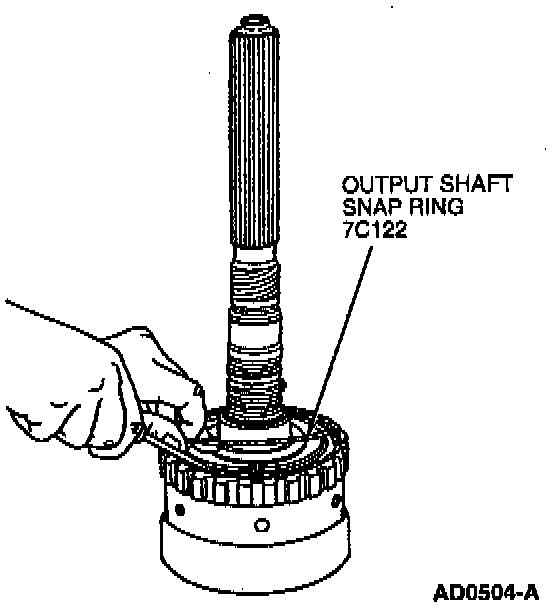

3. Remove snap ring retaining output shaft hub. Slide output shaft hub off rear of output shaft.





4. Remove three output shaft to case seals and output shaft O-ring seal.

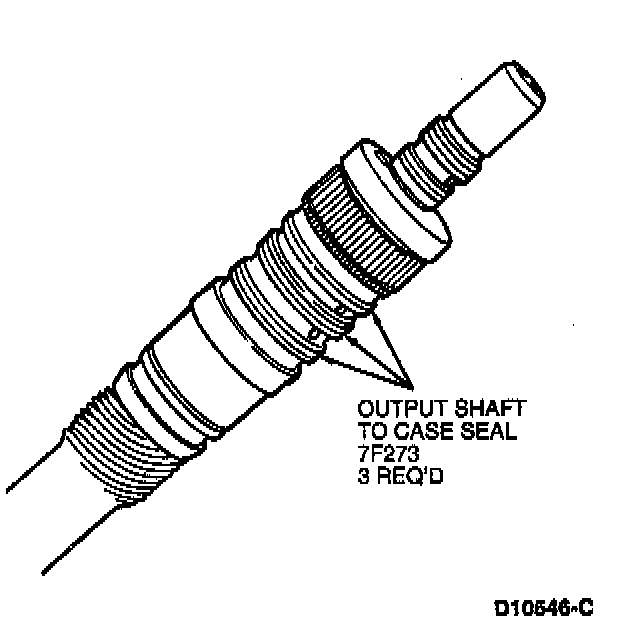

NOTE: The illustration shows the correct locations for output shaft to case seals.





5. Remove two output shaft to direct clutch cylinder seals from the output shaft. Note the direction of the output shaft to direct clutch cylinder seals.

ASSEMBLY





1. Install two output shaft to direct clutch cylinder seals. Make sure output shaft to direct clutch cylinder seals are properly lapped.

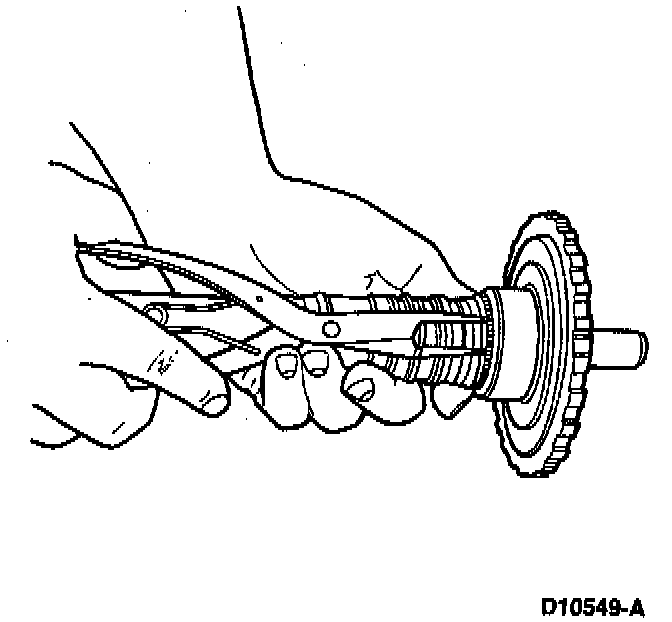

2. Install output shaft hub. Install snap ring.

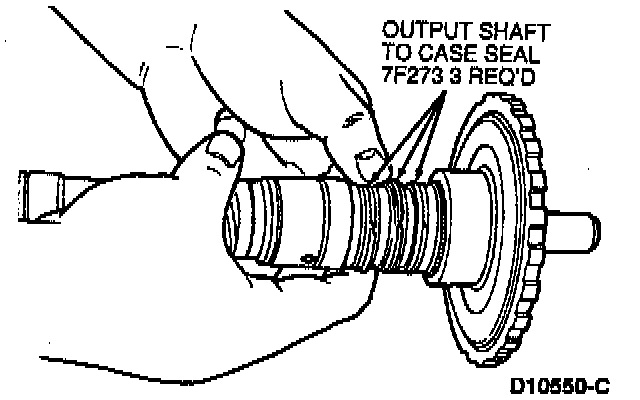

3. Install three output shaft to case seals and output shaft O-ring seal.

NOTE: Make sure output shaft to case seals are lapped properly.

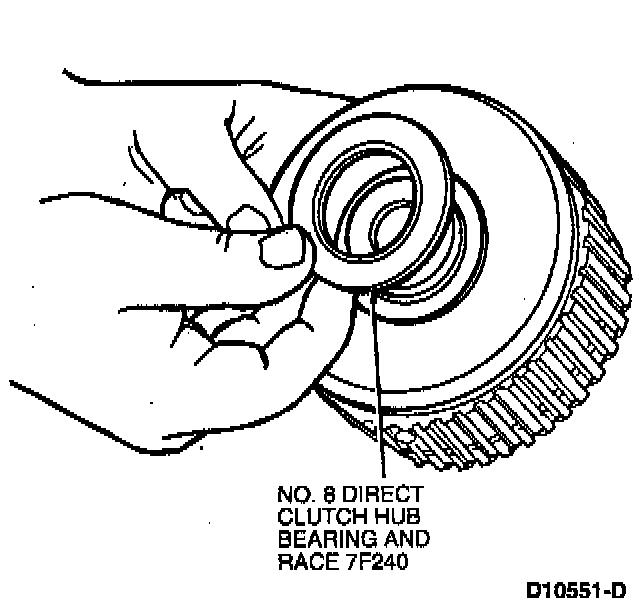

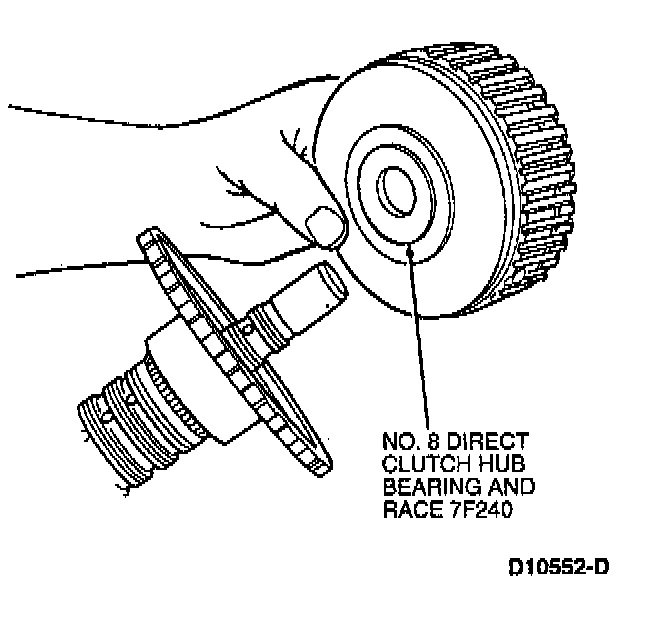

4. Install No. 8 direct clutch hub bearing and race on direct clutch cylinder.

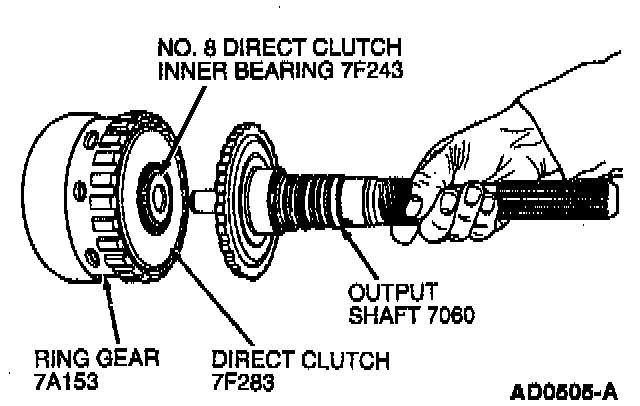

5. Install direct clutch cylinder on output shaft.

NOTE: Direct clutch cylinder may be installed after ring gear is installed to output shaft hub.





6. Install ring gear and snap ring on output shaft.
