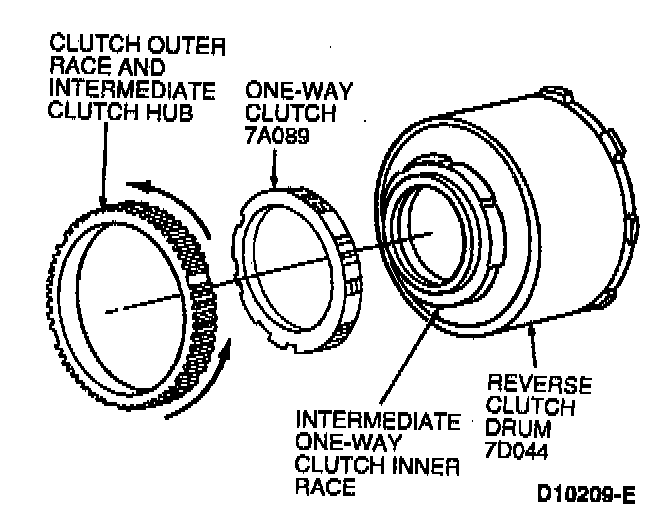

Intermediate Clutch

NOTE: One-way clutch must rotate counterclockwise when installed on drum.





DISASSEMBLY

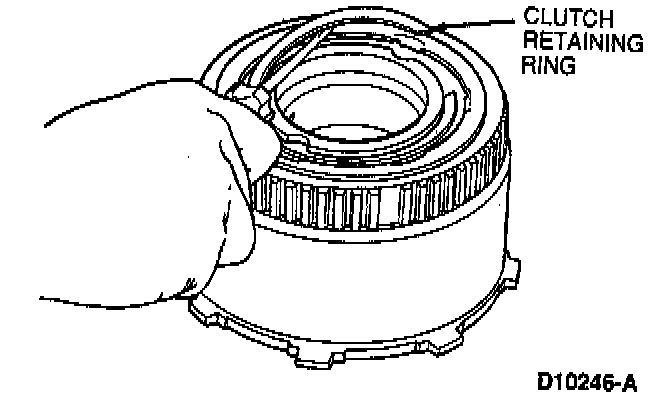

1. Remove clutch retaining ring.

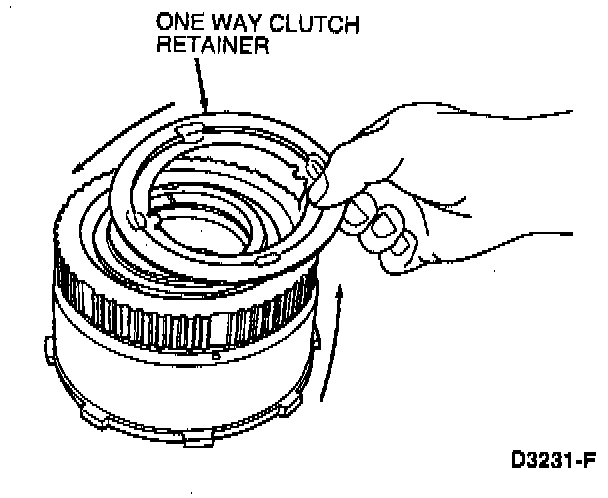

2. Remove one-way clutch retainer.

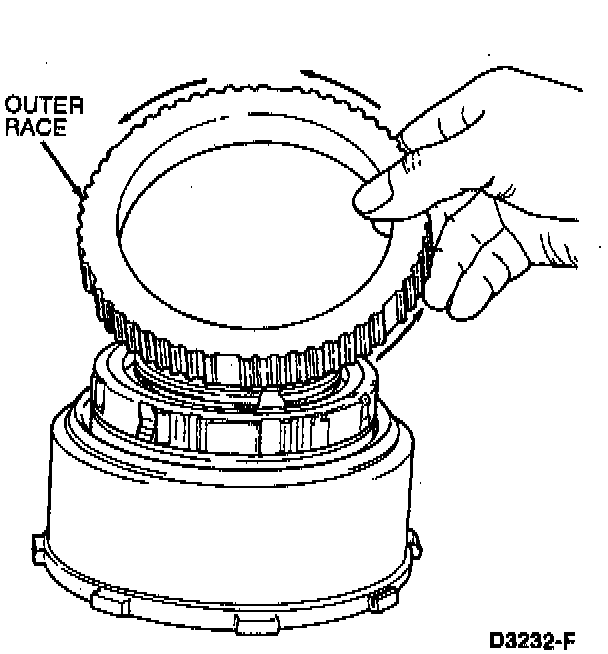

3. Remove clutch outer race by lifting on the race while turning counterclockwise.
4. Carefully lift one-way clutch from reverse clutch drum.





ASSEMBLY

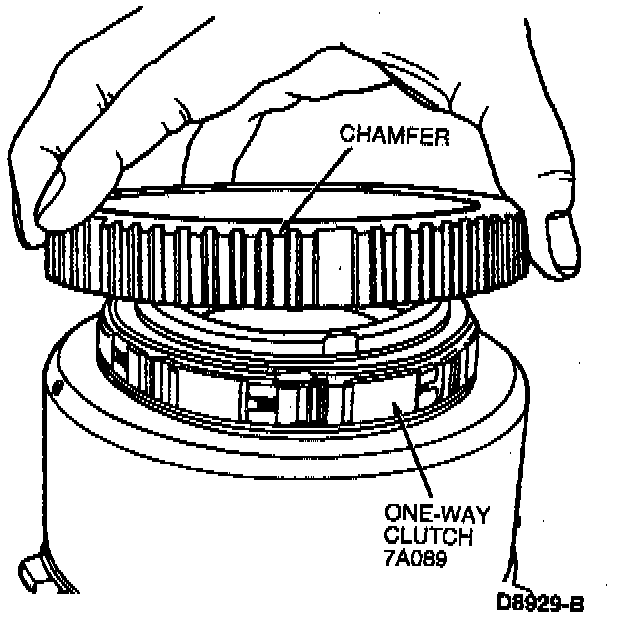

NOTE: For ease in assembly, the chamfer on the outer clutch race splines should face upward.

1. Install one-way clutch on reverse clutch drum.

NOTE: One-way clutch must rotate counterclockwise when installed on reverse clutch drum.

2. Install clutch outer race.
3. Install one-way clutch retainer and springs.
4. Install clutch retaining ring.
