Automatic Transmission/Transaxle: Application and ID

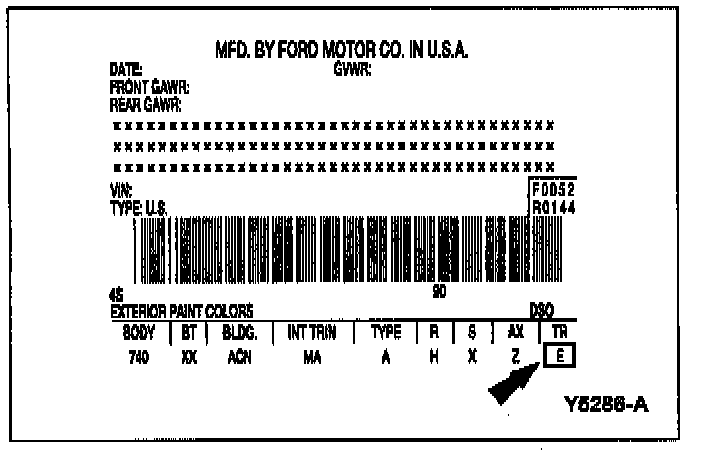

All vehicles are equipped with a vehicle certification label, affixed to the LH (driver's) side door lock post. The code within the "TR" space denotes the type of transmission installed.

MANUAL TRANSMISSION
5 -- 5 speed overdrive (T5OD)
6 -- 5 speed overdrive (T45OD)

AUTOMATIC TRANSMISSION
U -- 4 speed overdrive (4R70W)
L -- 4 speed overdrive (4R70W)

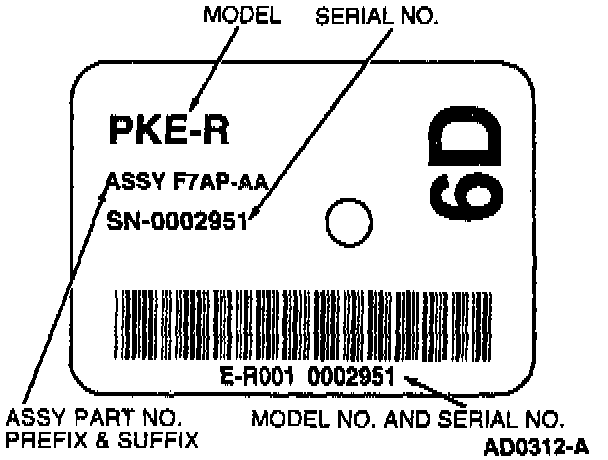

For additional information such as: model, service identification level or build date, refer to the transmission service identification tag which is attached to transmission case.
