Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Testing and Inspection >> Pinpoint Tests >> E: Driveshaft Vibration

E: Driveshaft Vibration

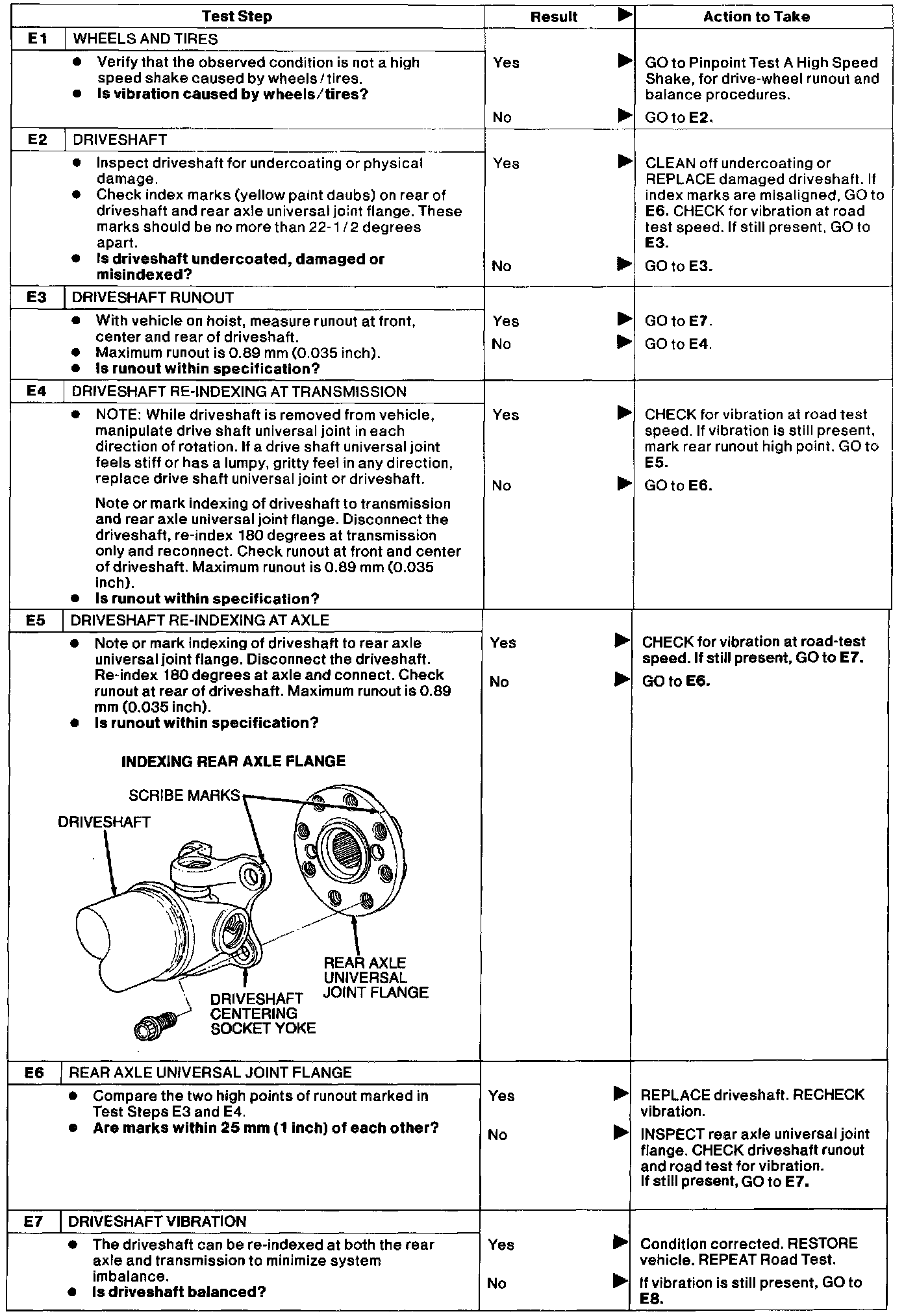

E1 - E7:

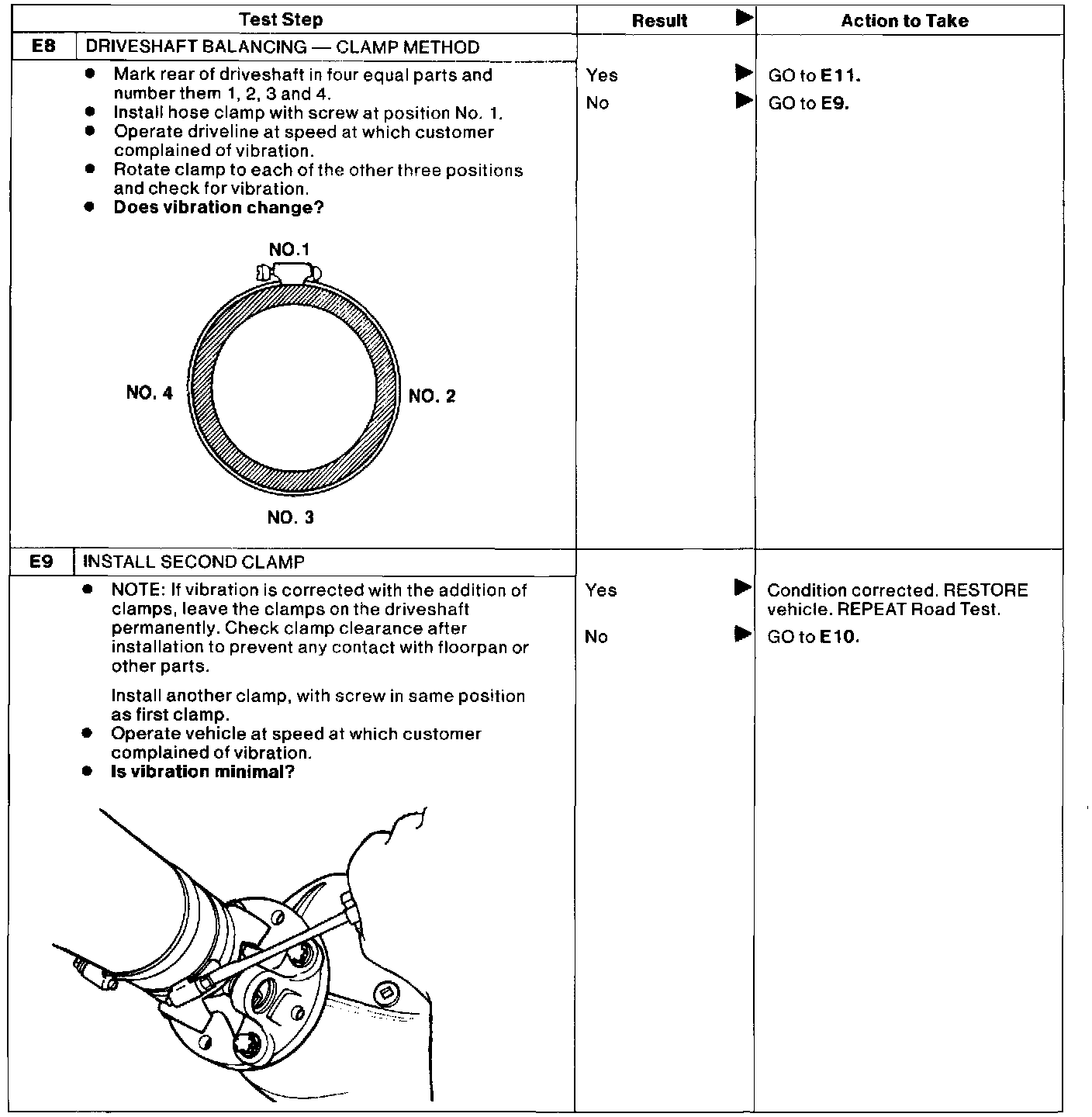

E8 - E9:

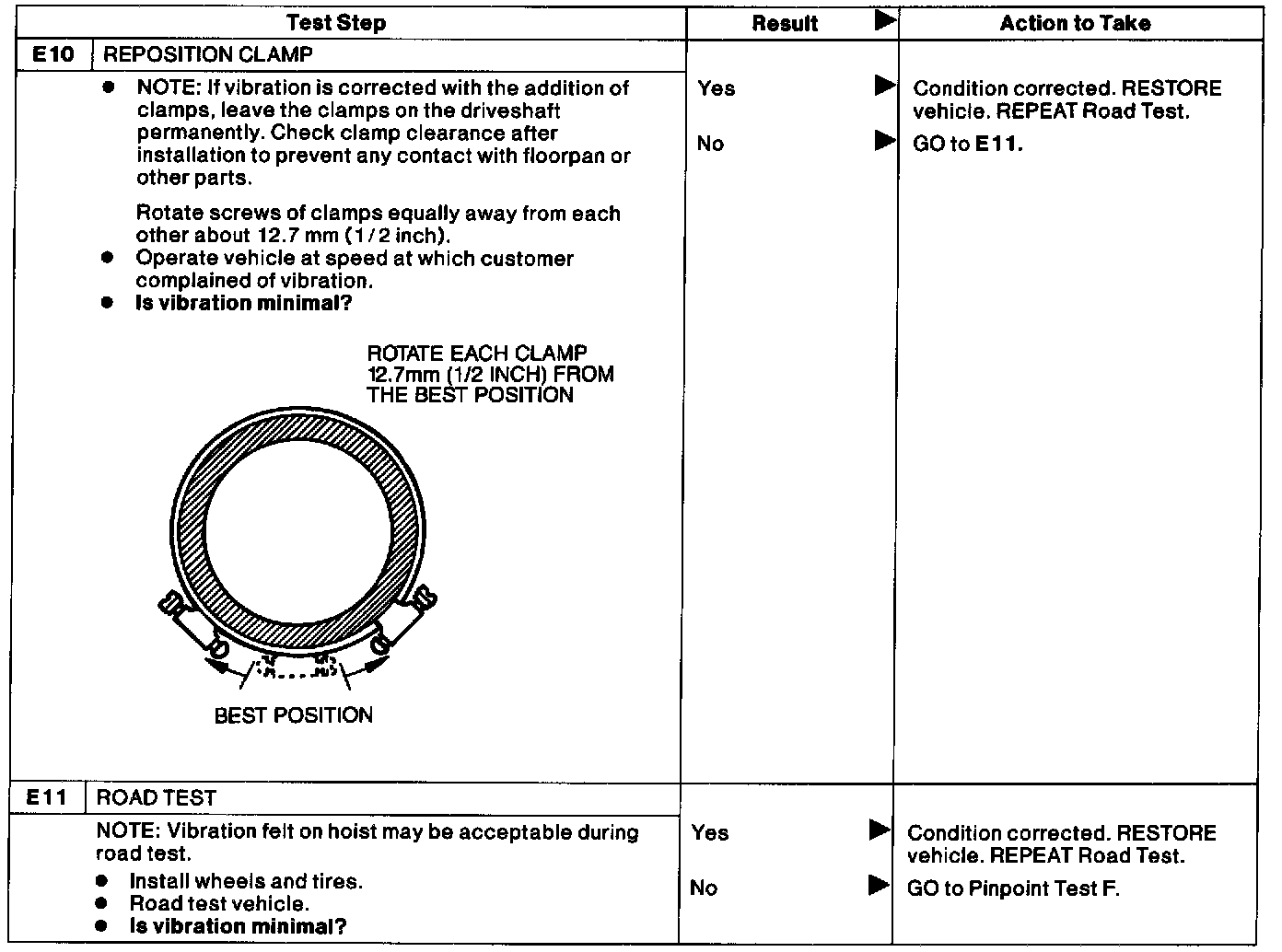

E10 - E11:
