Steel Wheels

NOTE: A Phillips-head screwdriver is required for the installation of the wheel cover. However, the wheel may be removed from the vehicle without removing the wheel cover. Only the wheel cover applique of the wheel cover needs to be removed.

REMOVAL
1. Pry the center wheel cover applique from the wheel cover using the wheel lug wrench provided with the vehicle.
2. The wheel, with the wheel cover still attached, may now be removed from the vehicle by removing the five lug nuts.
3. If the tire needs to be removed from the wheel, first remove the five screws, using a Phillips-head screwdriver, and pull the wheel cover off of the wheel.

INSTALLATION

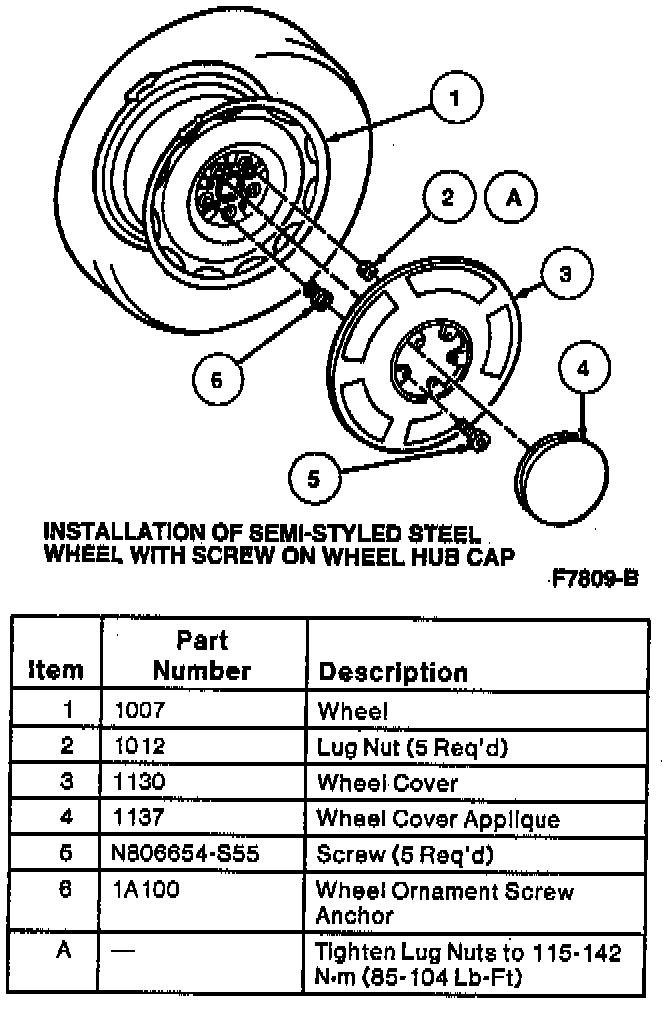

1. Insert wheel ornament screw anchors provided into the square slots on the wheel.
2. Align the valve hole in the wheel cover with the valve stem and install the wheel cover into the wheel.
3. Align the holes in the wheel cover mounting pads with the center holes in the wheel ornament screw anchor.
4. Install the five screws and tighten securely with a Phillips-head screwdriver.

NOTE: Do not use power tools for wheel cover installation.

5. Align the legs of the wheel cover applique with the slots on the wheel cover and install.
