To Body

REMOVAL
1. Remove front suspension lower arm.

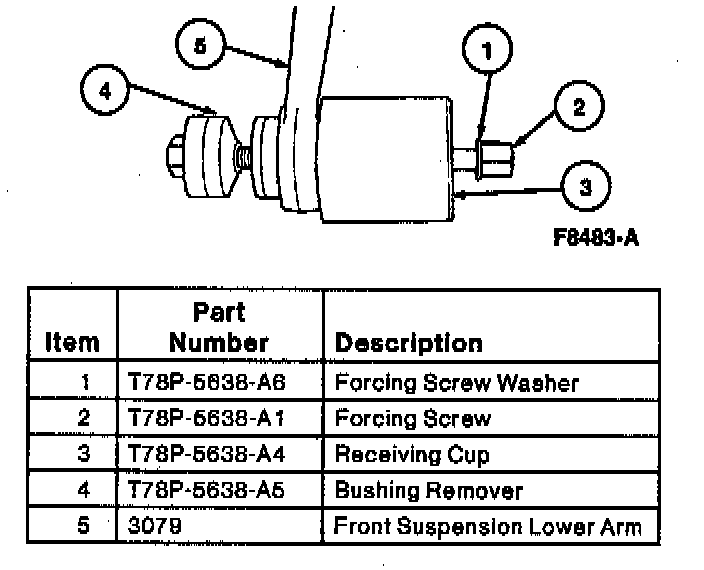

2. Press out front suspension lower arm mounting bolt bushing with Bushing Remover T78P-5638-A5, Receiving Cup T78P-5638-A4 and Forcing Screw T78P-5638-A1.





INSTALLATION
1. Install new front suspension lower arm mounting bolt bushing into front suspension lower arm from front of front suspension lower arm using Bushing Replacer T89P-5638-A, Pivot Bushing Replacer T89P-5493-B, Forcing Screw T78P-5638-A1 and Forcing Screw Washer T79P-5638-A6. Turn forcing screw until it bottoms.
2. Install front suspension lower arm.
3. Check front end alignment.
