Battery Tray Replacement

REMOVAL
1. Remove battery from vehicle.

WARNING: THE BACKUP POWER SUPPLY ENERGY MUST BE DEPLETED BEFORE ANY AIR BAG COMPONENT SERVICE IS PERFORMED. TO DEPLETE BACKUP POWER SUPPLY ENERGY, FIRST DISCONNECT THE BATTERY GROUND CABLE, THEN DISCONNECT THE POSITIVE BATTERY CABLE AND WAIT ONE MINUTE TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

NOTE
- When the battery has been disconnected or reconnected, some abnormal drive symptoms may occur while the Powertrain Control Module (PCM) relearns its fuel trim. The vehicle may need to be driven 18 km (10 miles) or more to relearn the fuel trim.
- When the battery has been disconnected or reconnected, volatile memory information will be lost. The affected systems will have to be programmed by the technician or customer. These systems include: radio station presets, clock settings and customer input keyless entry codes.

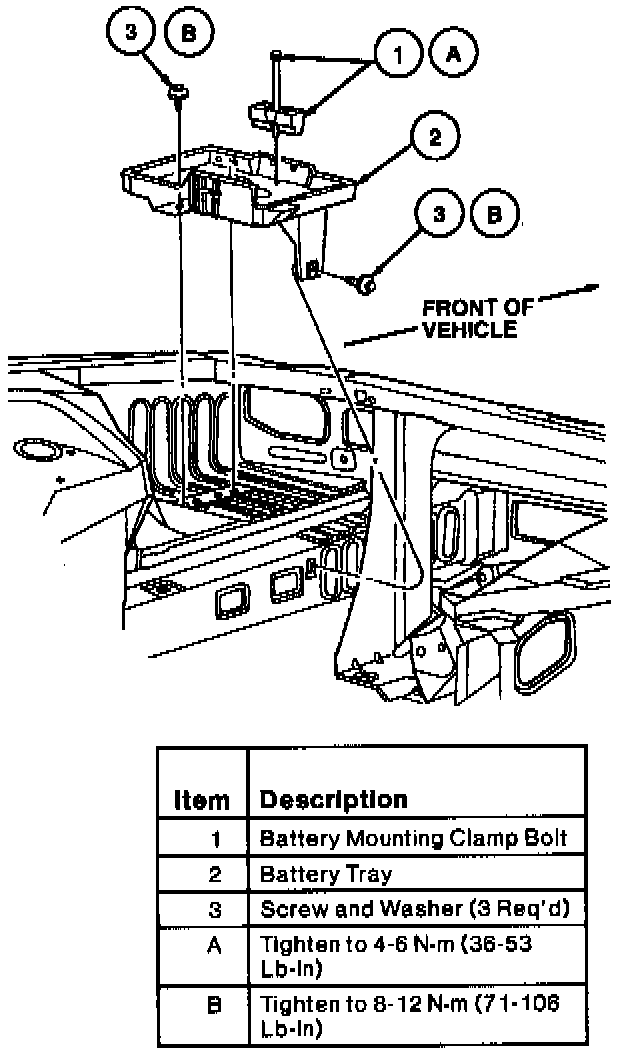

2. Remove retaining screws and washers from battery tray.
3. Remove battery tray from vehicle.







INSTALLATION
1. Position battery tray in engine compartment.
2. Install retaining screws and washers. Tighten to 8-12 N.m (71-106 lb-in).
3. Install battery.
