Ford Traction LOK 8.8

Ford Traction Lok 8.8, Ring Gear Backlash (Mustang):

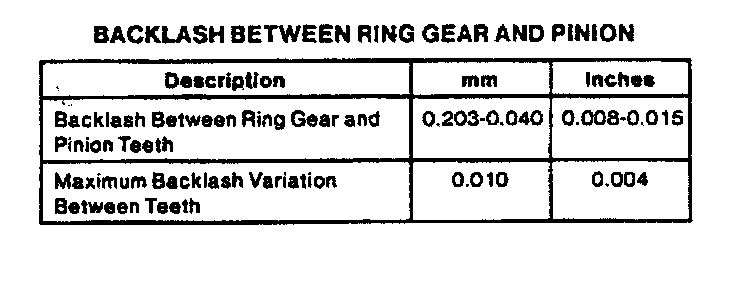

Ford Traction Lok 8.8, Ring Gear Backlash (T-bird/Cougar):

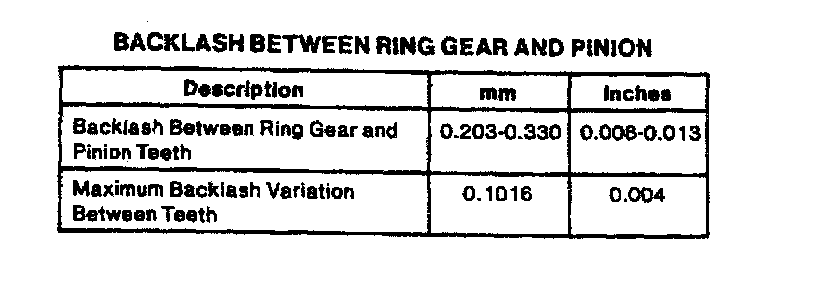

Ford Traction Lok 8.8, Ring Gear/Pinion Backlash (Town Car):
