Pressure Feedback Exhaust Sensor: Service and Repair

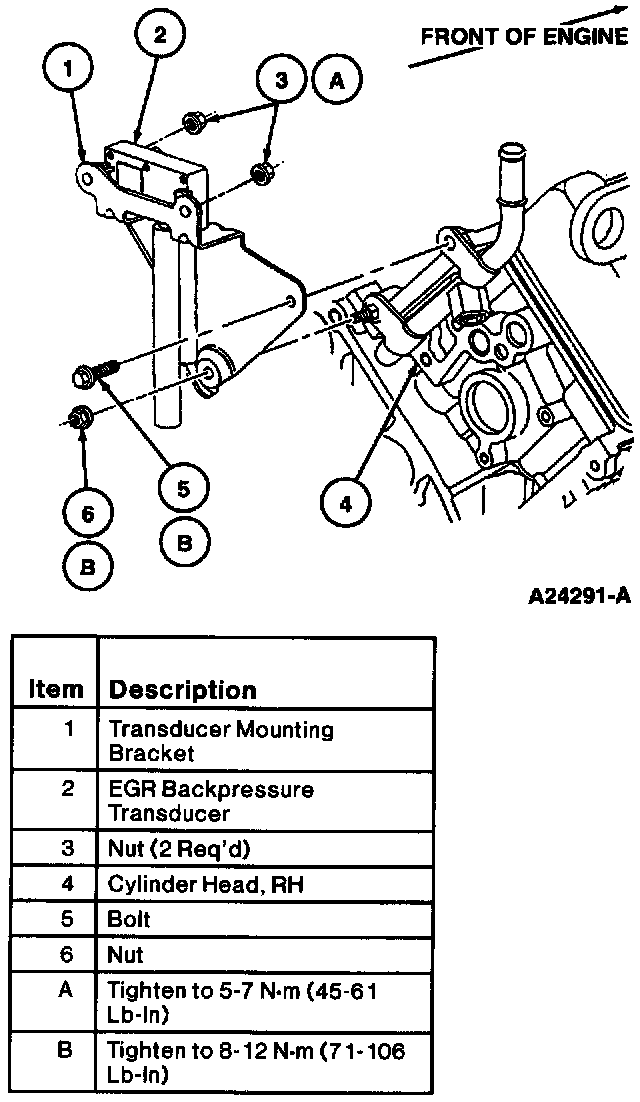

REMOVAL
1. Disconnect fuel charging wiring connector from pressure feedback exhaust sensor.
2. Disconnect hoses from pressure feedback exhaust sensor.
3. Remove retaining nuts and pressure feedback exhaust sensor from mounting bracket.
4. If necessary, remove the mounting bracket from the RH cylinder head.

INSTALLATION
1. Follow removal procedure in reverse order.
2. If removed, tighten retainers for the transducer mounting bracket to 8-12 Nm (71-106 lb in). Tighten pressure feedback exhaust sensor retaining nuts to 5-7 Nm (45-61 lb in).
