Headlamp Switch
>>
Testing and Inspection
>>
With Autolamps
With Autolamps

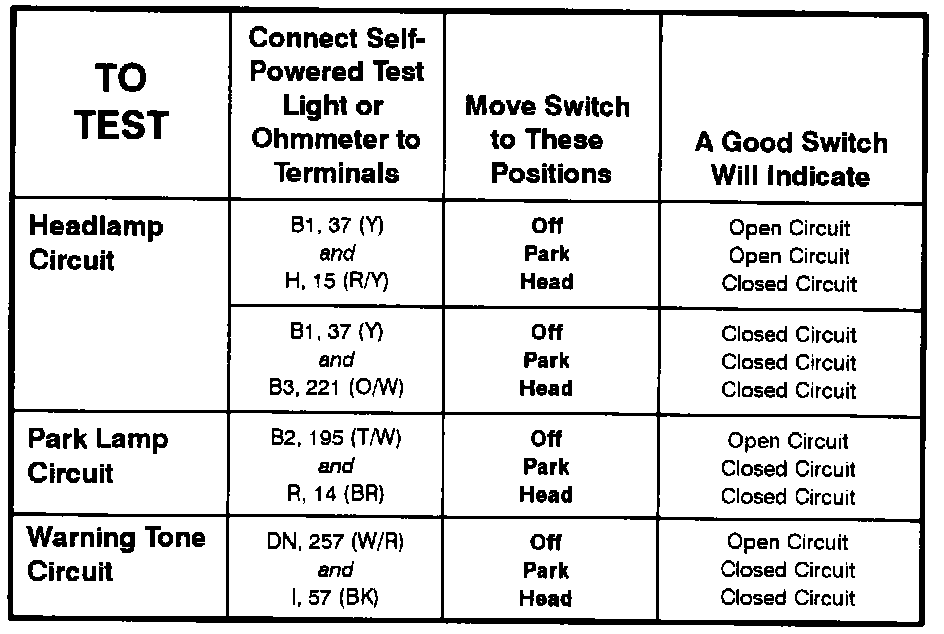

Multi-Function Switch - Component Testing Procedure (With Autolamps):
Main Light Switch - Terminal Locations (With Autolamps):

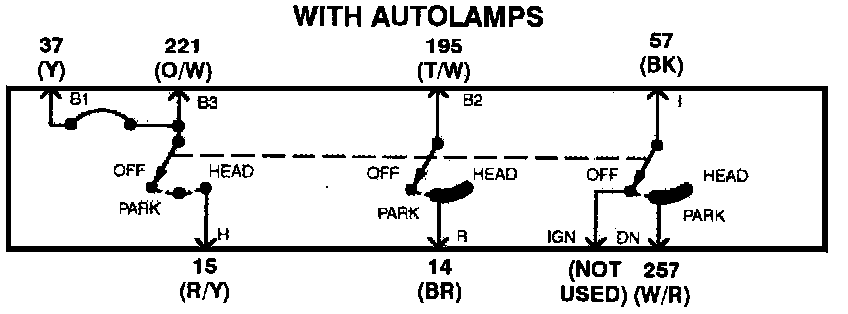

Multi-Function Switch - Schematic (With Autolamps):
