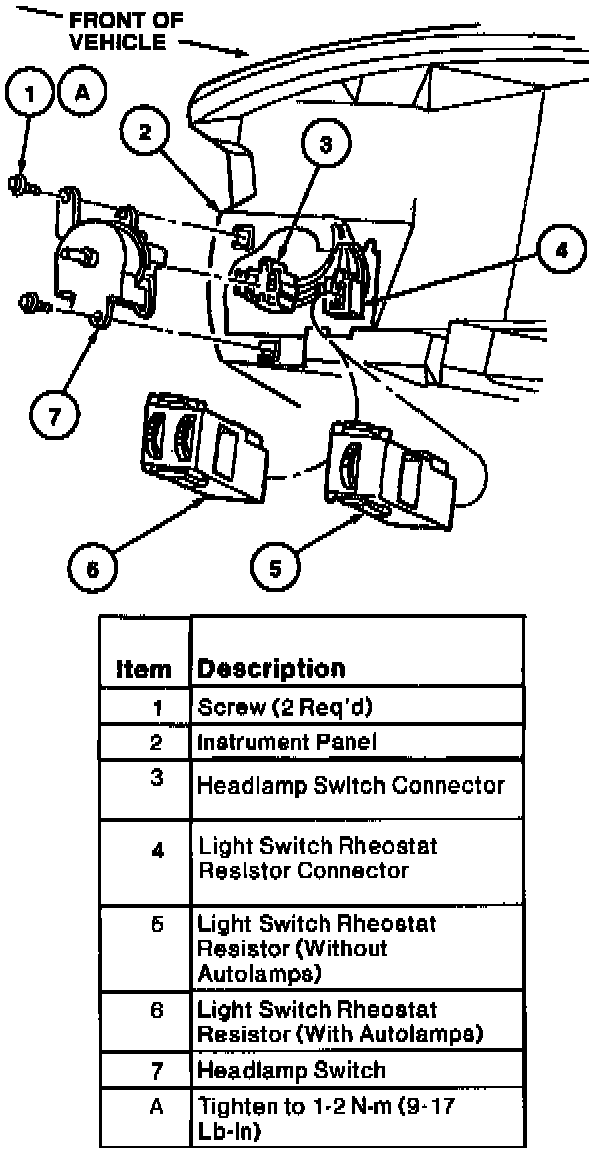

Light Switch Rheostat Resistor






REMOVAL
1. Remove headlamp switch.
2. Remove screws retaining light switch rheostat resistor.
3. Disconnect electrical connector and remove light switch rheostat resistor.

INSTALLATION
1. Follow removal procedure in reverse order.
