Ambient Temperature Sensor / Switch HVAC: Description and Operation

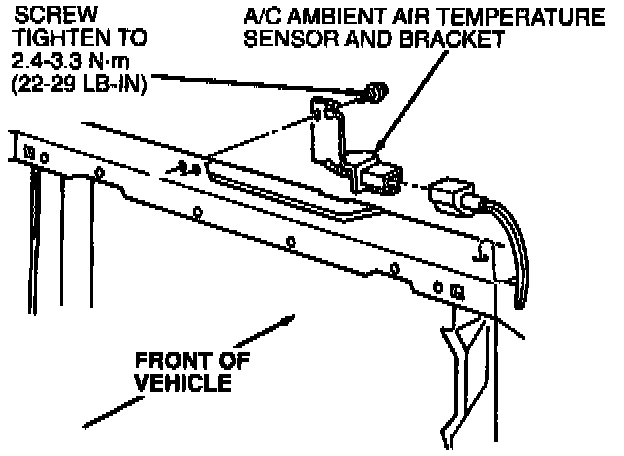

The A/C ambient air temperature sensor and bracket:
^ is located in front of the A/C condenser core on the RH lower side of the vehicle.
^ contains a thermistor which measures the temperature of the outside air.
^ sends the temperature reading to the control assembly.
