Sunroof / Moonroof Switch: Service and Repair

REMOVAL

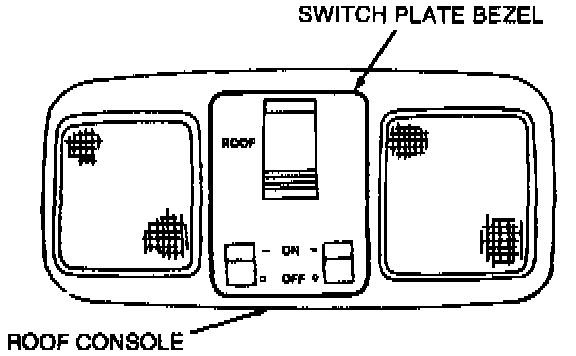

1. Remove switch plate bezel.

NOTE: Use a pry tool in the front edge of the switch plate bezel to remove switch plate bezel.

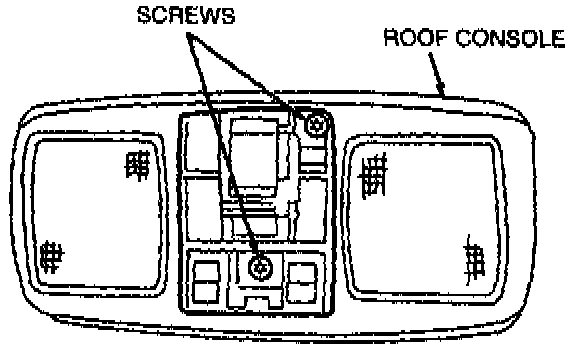

2. Remove two screws and roof console.

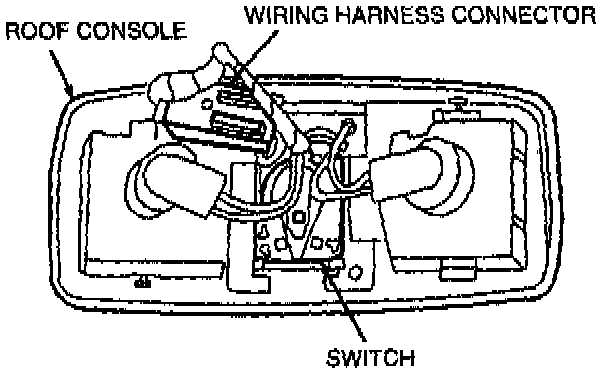

3. Disconnect the wiring connectors and the roof sliding panel switch from the roof console.

INSTALLATION
1. Follow removal procedure in reverse order.
