Child Seat Tether Attachment: Locations

Tether Attachment Location

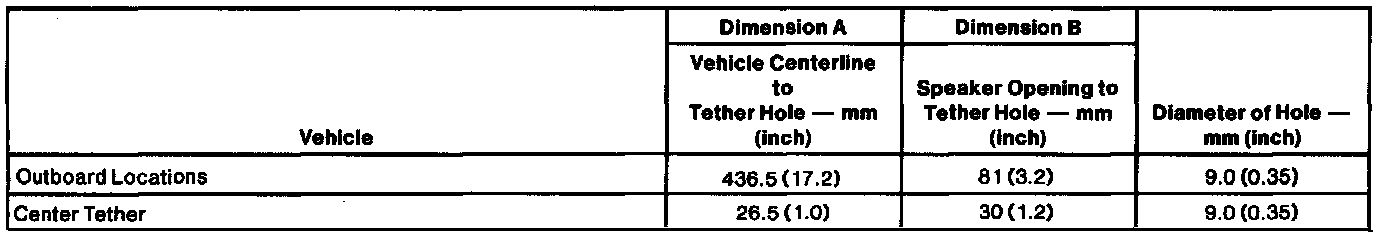

Dimension A is the distance from the centerline of the vehicle to the center of the tether attachment holes.

Dimension B is the approximate distance from the center of the radio speaker grille opening to the center of the tether attachment holes.

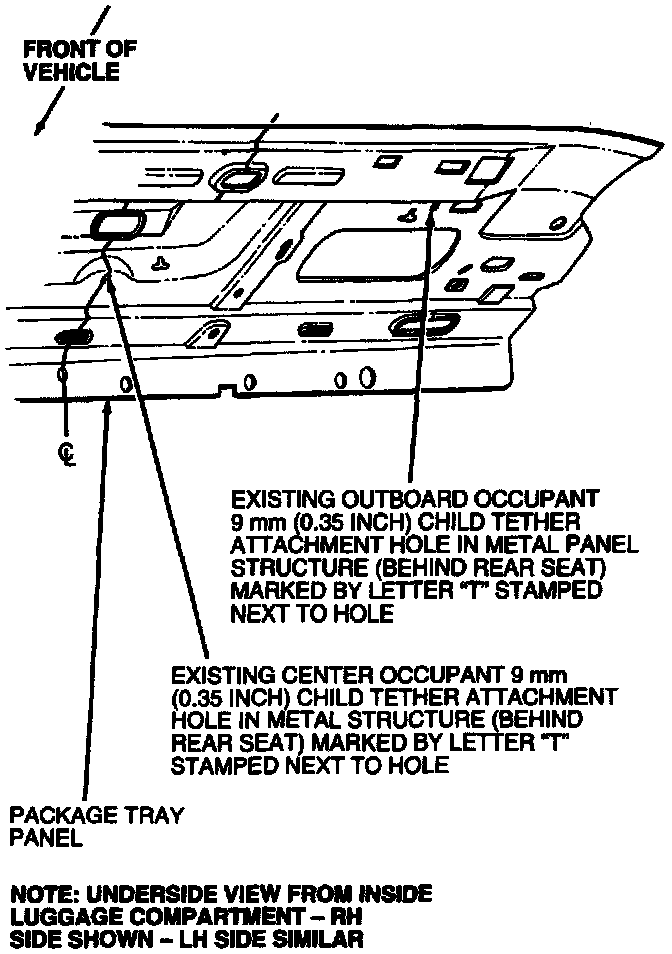

Three 9 mm (0.35-inch) diameter holes are provided in the rear window tray sheet metal structure for attaching the child safety belt anchor tether. For easy identification, these holes are stamped with the letter T next to the hole.
