Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> DTC 33 : Passenger Air Bag Circuit High Resistance/Open >> Steps 33-1 to 33-4

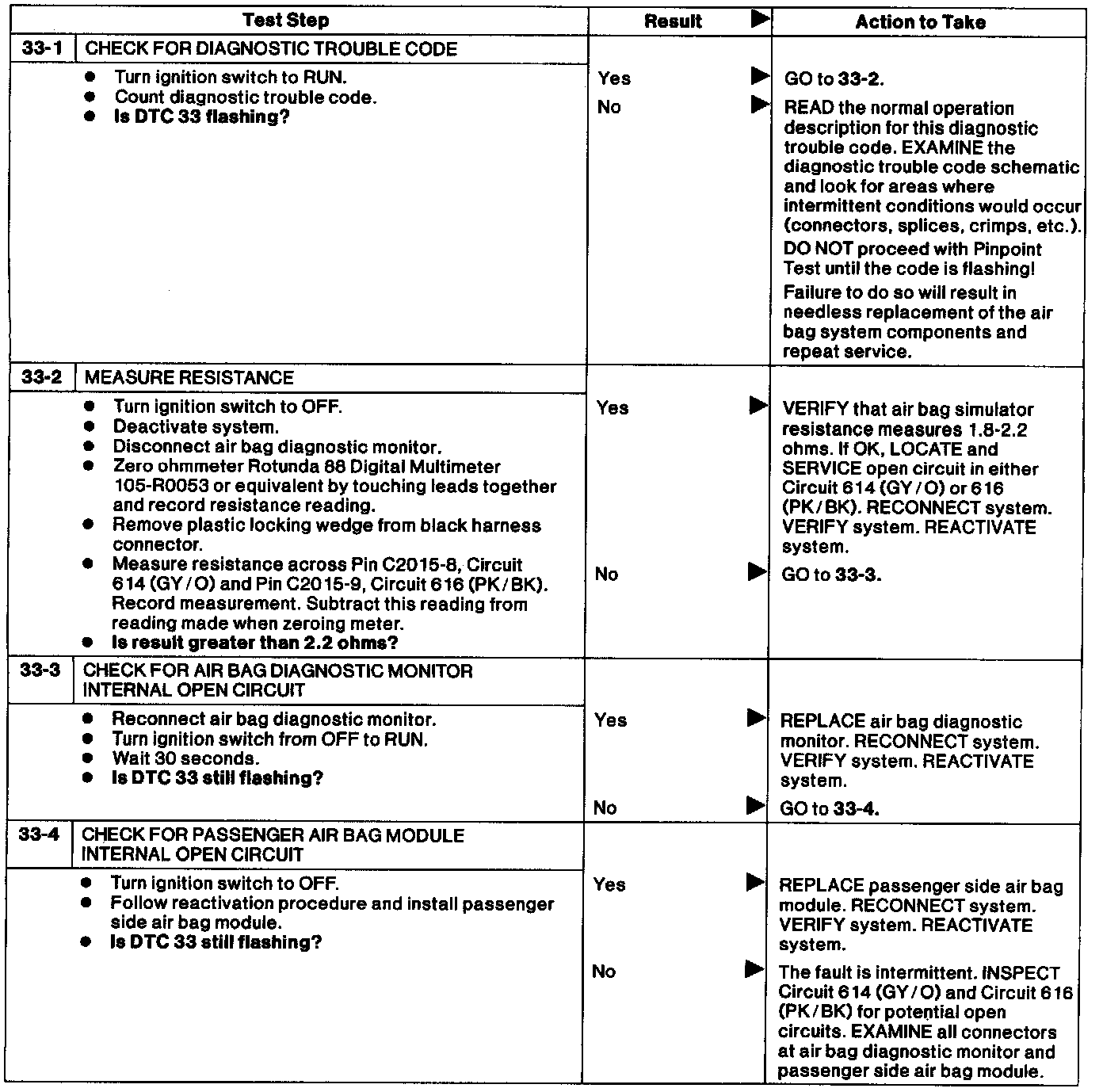

Steps 33-1 to 33-4
