Steering Control Module: Locations

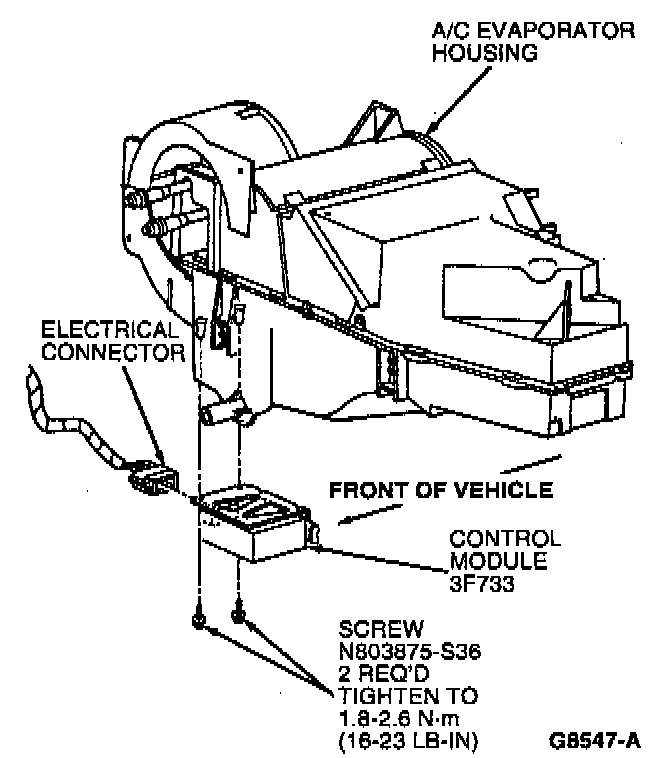

Behind Instrument Panel View:





The Electronic Variable Orifice Module is located behind RH side of the instrument panel.
