Horn Relay: Locations

Engine View:

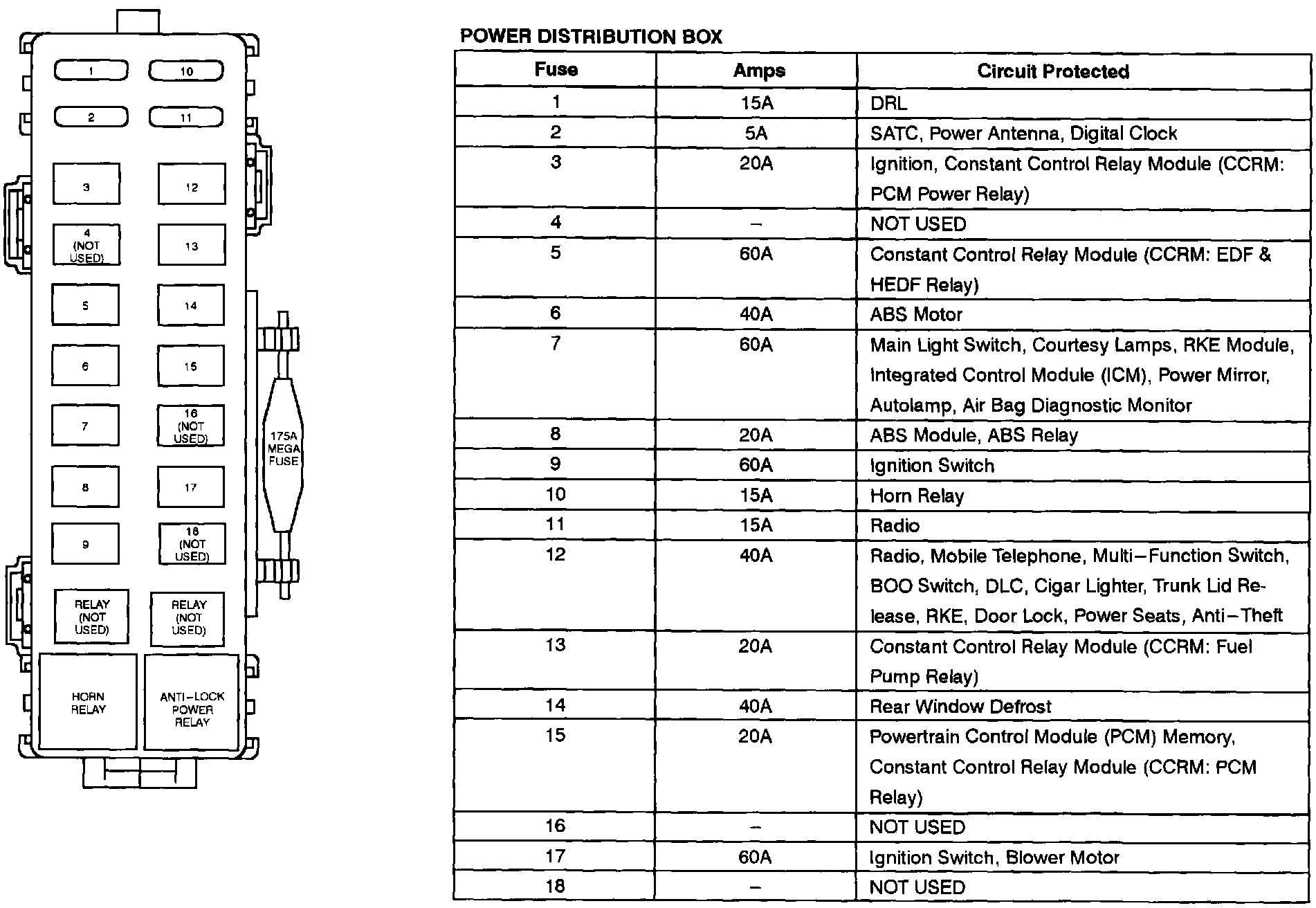

Power Distribution Box:





The Horn Relay is located at the LH side of the engine compartment, in the power distribution box.
