Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> E: Electronic Pressure Control (EPC) Solenoid

E: Electronic Pressure Control (EPC) Solenoid

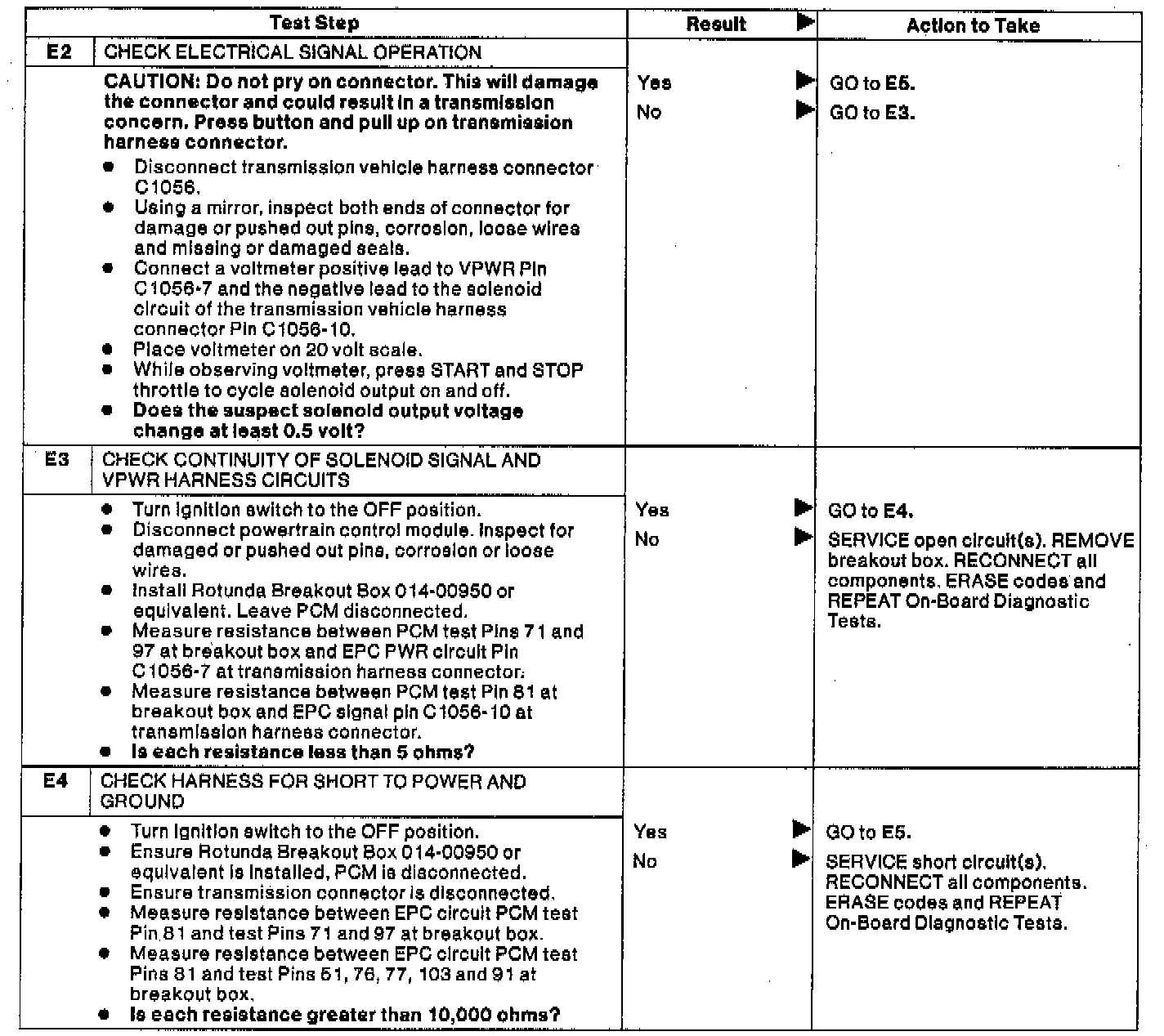

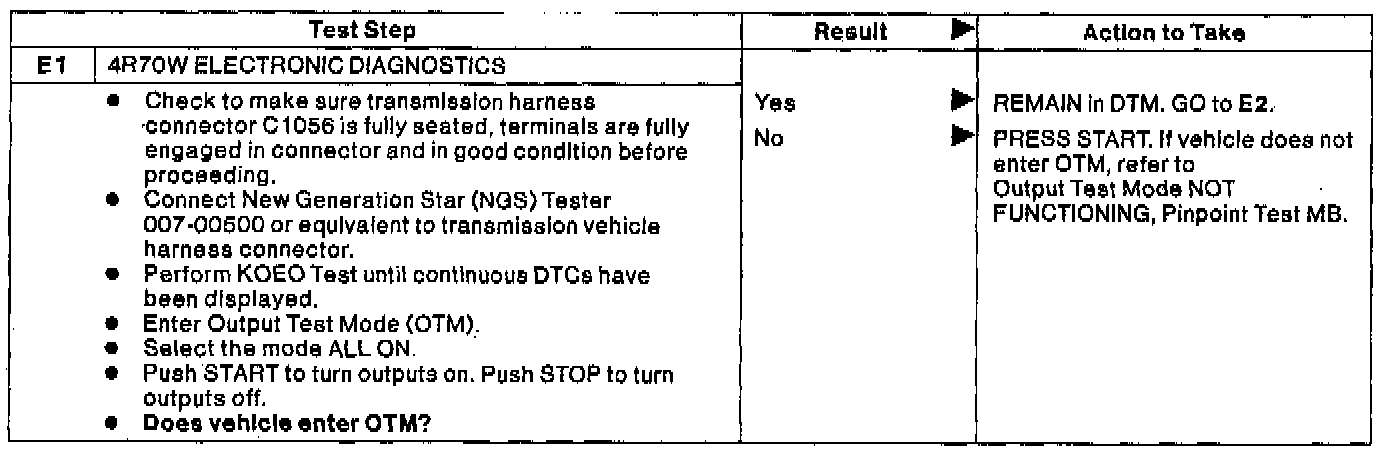

Part 1 Of 5:

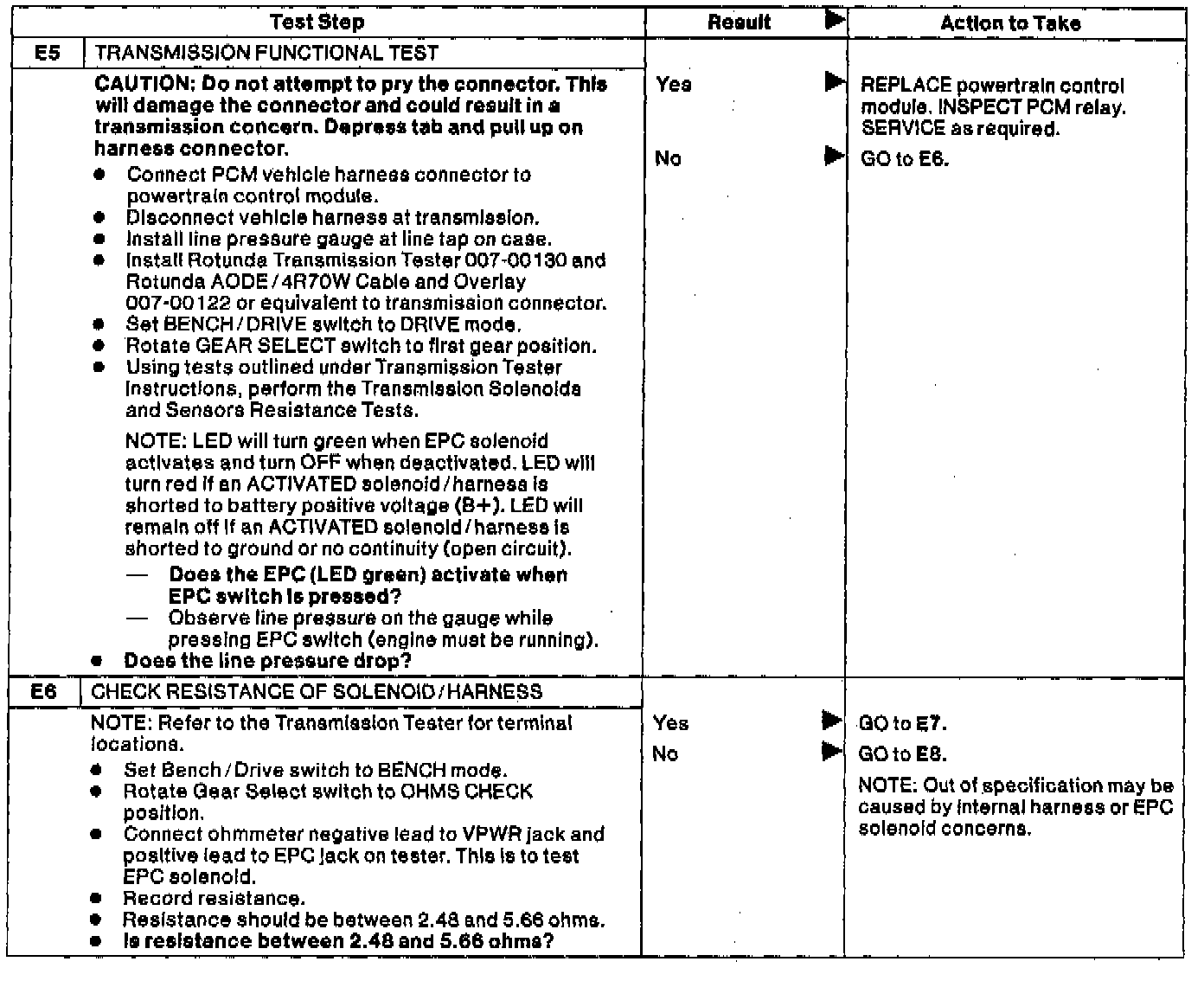

Part 2 Of 5:



Part 3 Of 5:

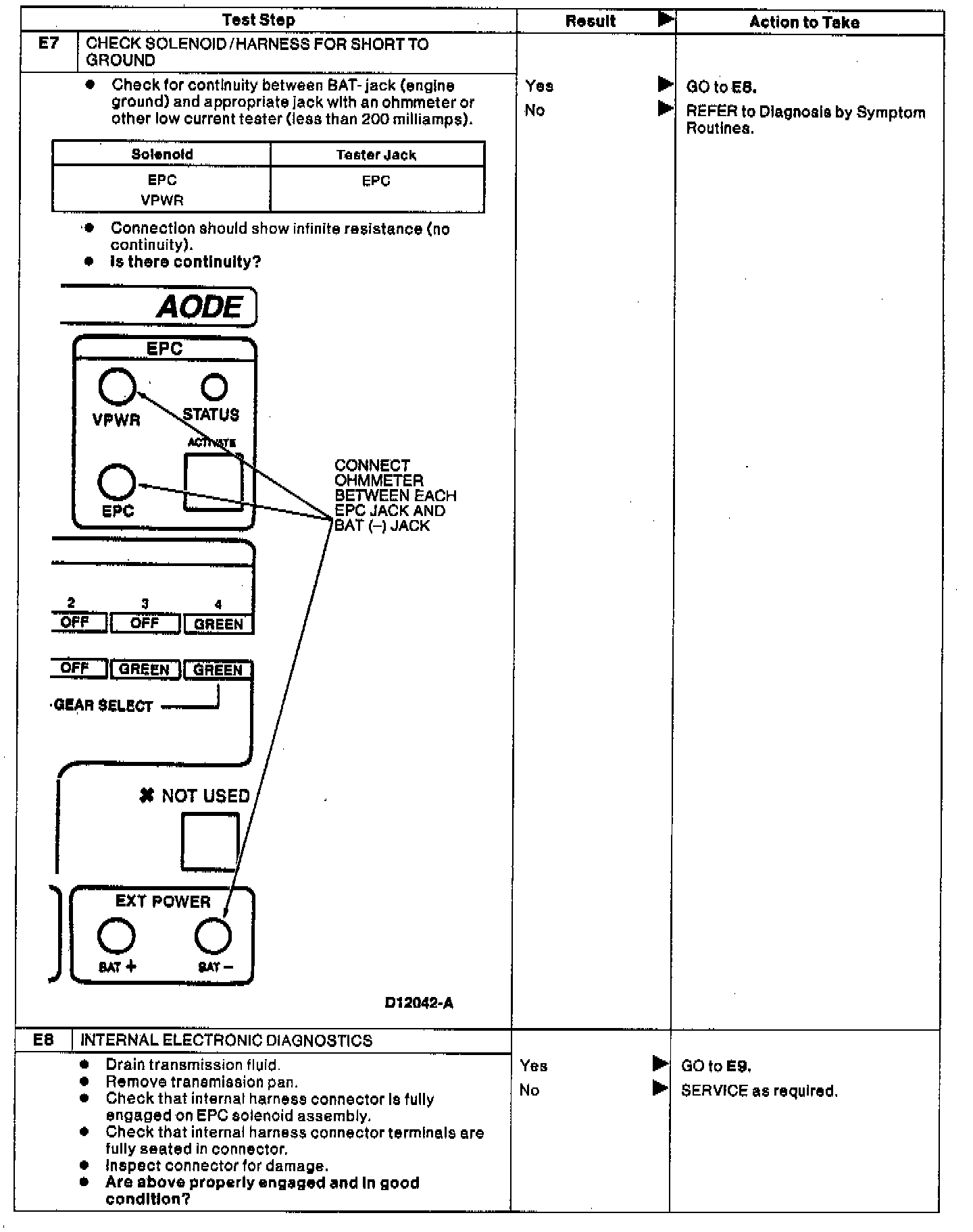

Part 4 Of 5:

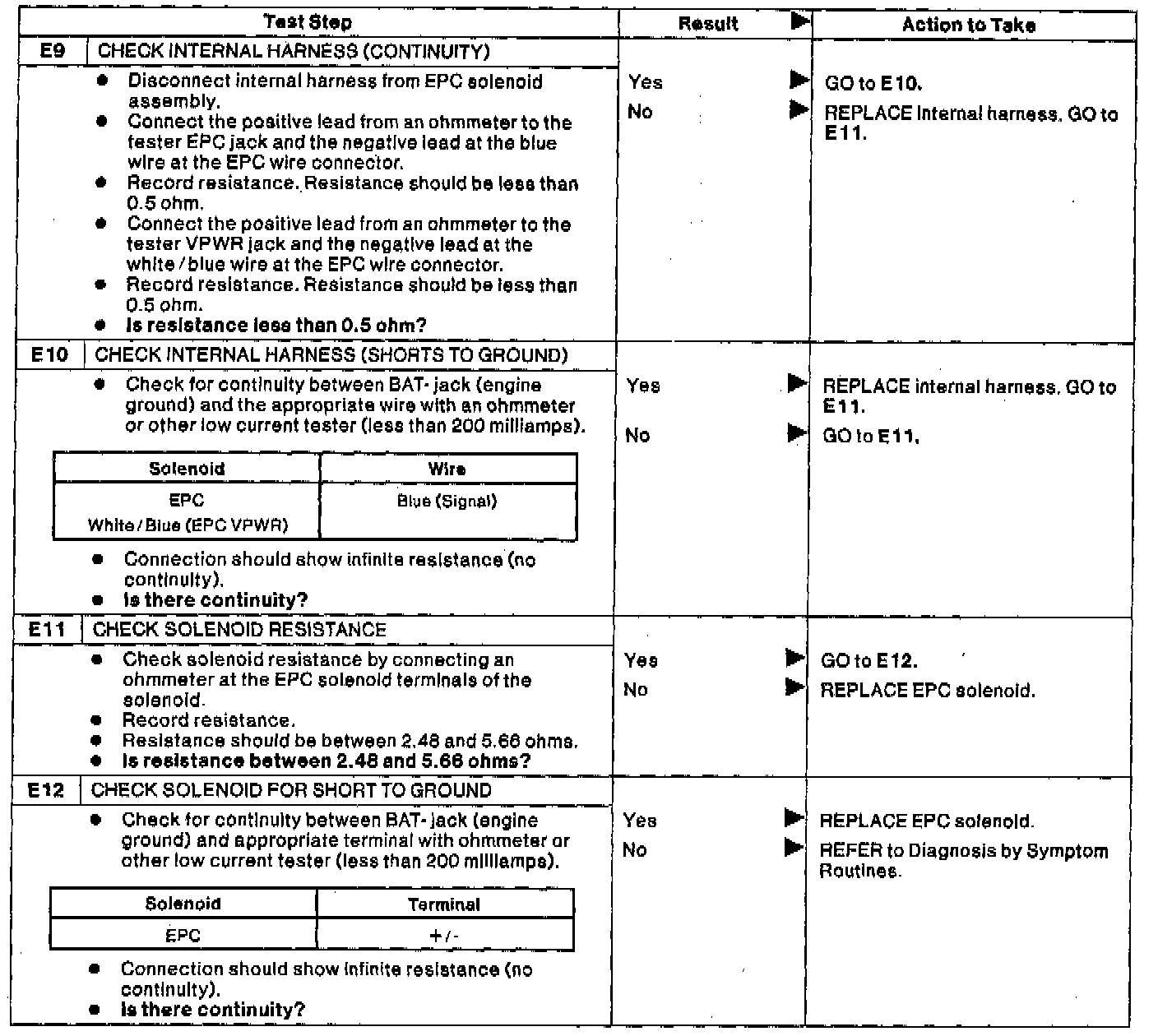

Part 5 Of 5:
