EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect fuel charging wiring from EGR vacuum regulator solenoid.
2. Disconnect main emission vacuum control connector from EGR vacuum regulator solenoid.

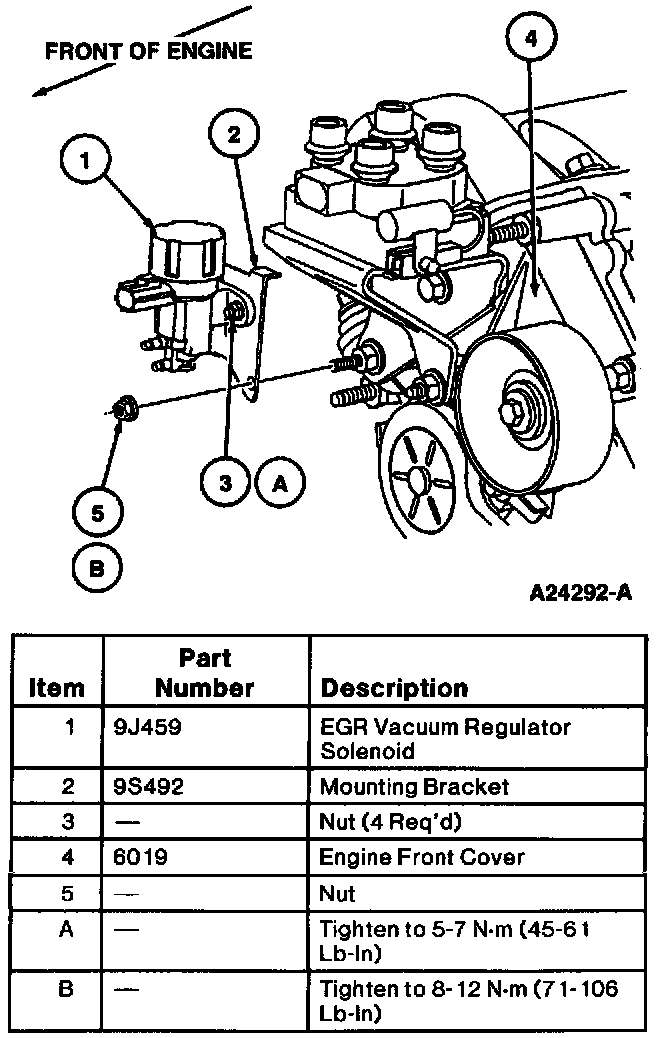

3. Remove retaining nuts and EGR vacuum regulator solenoid from mounting bracket located at RH side of engine front cover.
4. If necessary, remove mounting bracket.

INSTALLATION
1. Follow removal procedure in reverse order.
2. If removed, tighten mounting bracket nut to 8-12 Nm (71-106 lb in).
3. Tighten retaining nuts for EGR vacuum regulator solenoid to 5-7 Nm (45-61 lb in).
