Evaporative Emission Control Canister: Service and Repair

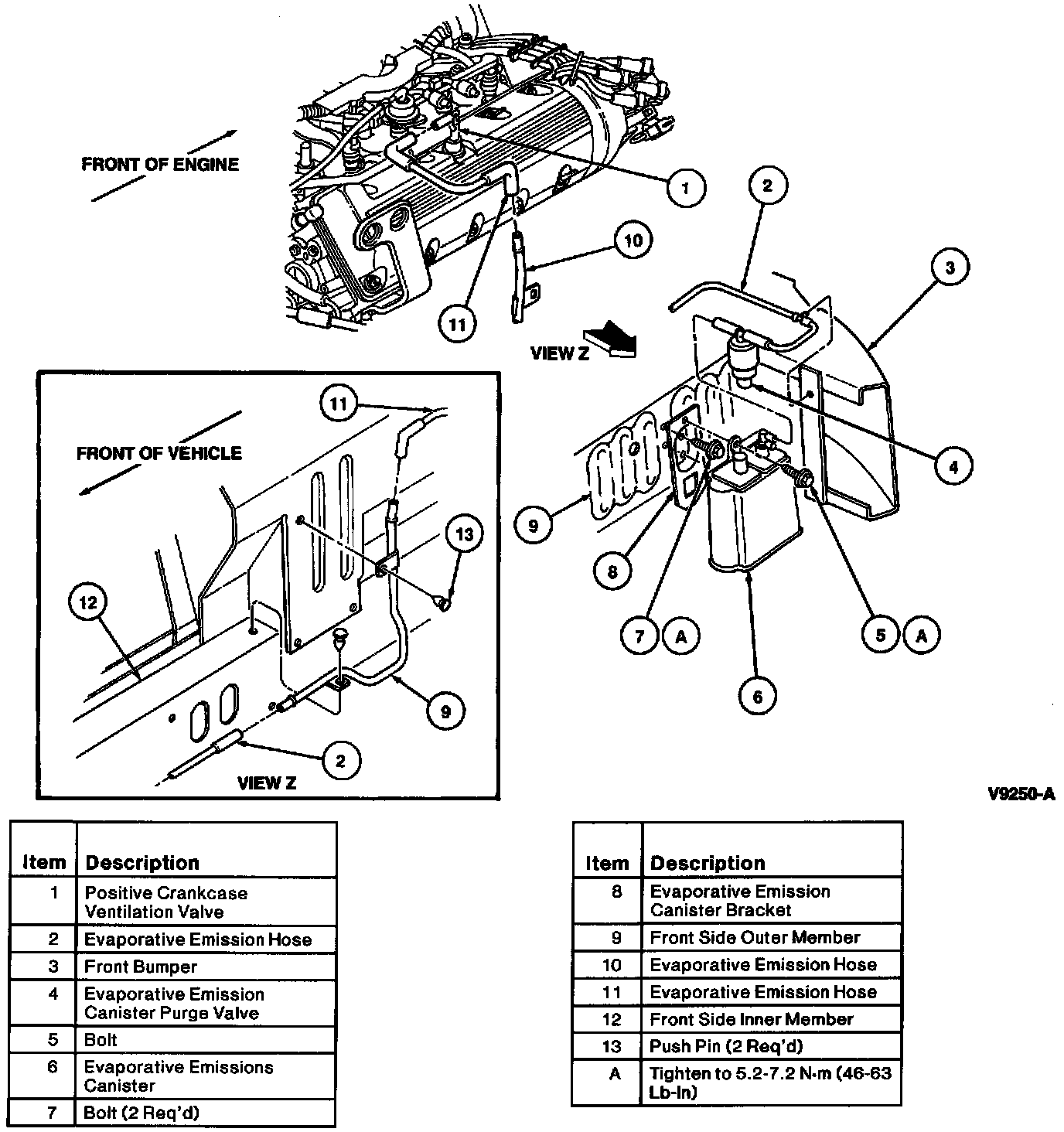

REMOVAL
1. Raise vehicle on hoist.
2. Remove evaporative emission canister retaining bolt.
3. Partially lower evaporative emissions canister and disconnect evaporative emission hose, evaporative emission canister purge valve and front fuel supply return and vapor tube from evaporative emissions canister.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten evaporative emission canister retaining bolt to 5.2-7.2 Nm (46-63 lb in).
