Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HT - Traction Control (TC) System >> Tables and Charts

Tables and Charts

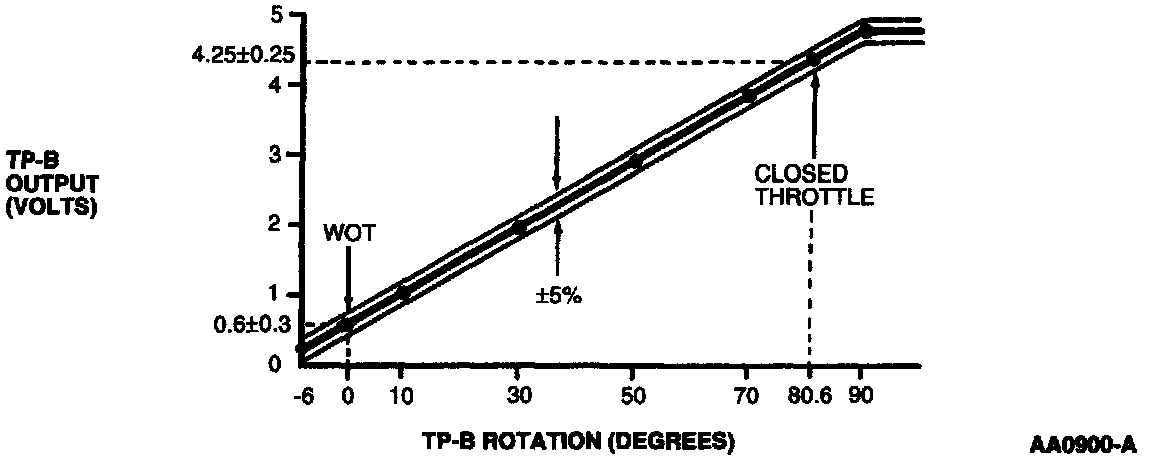

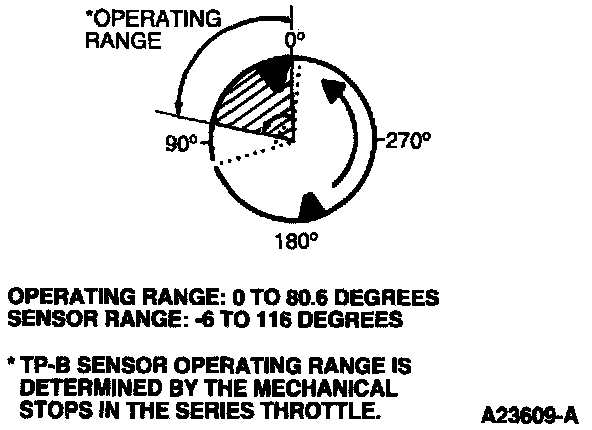

Throttle Position Sensor B Graph
