Data Link Connector: Locations

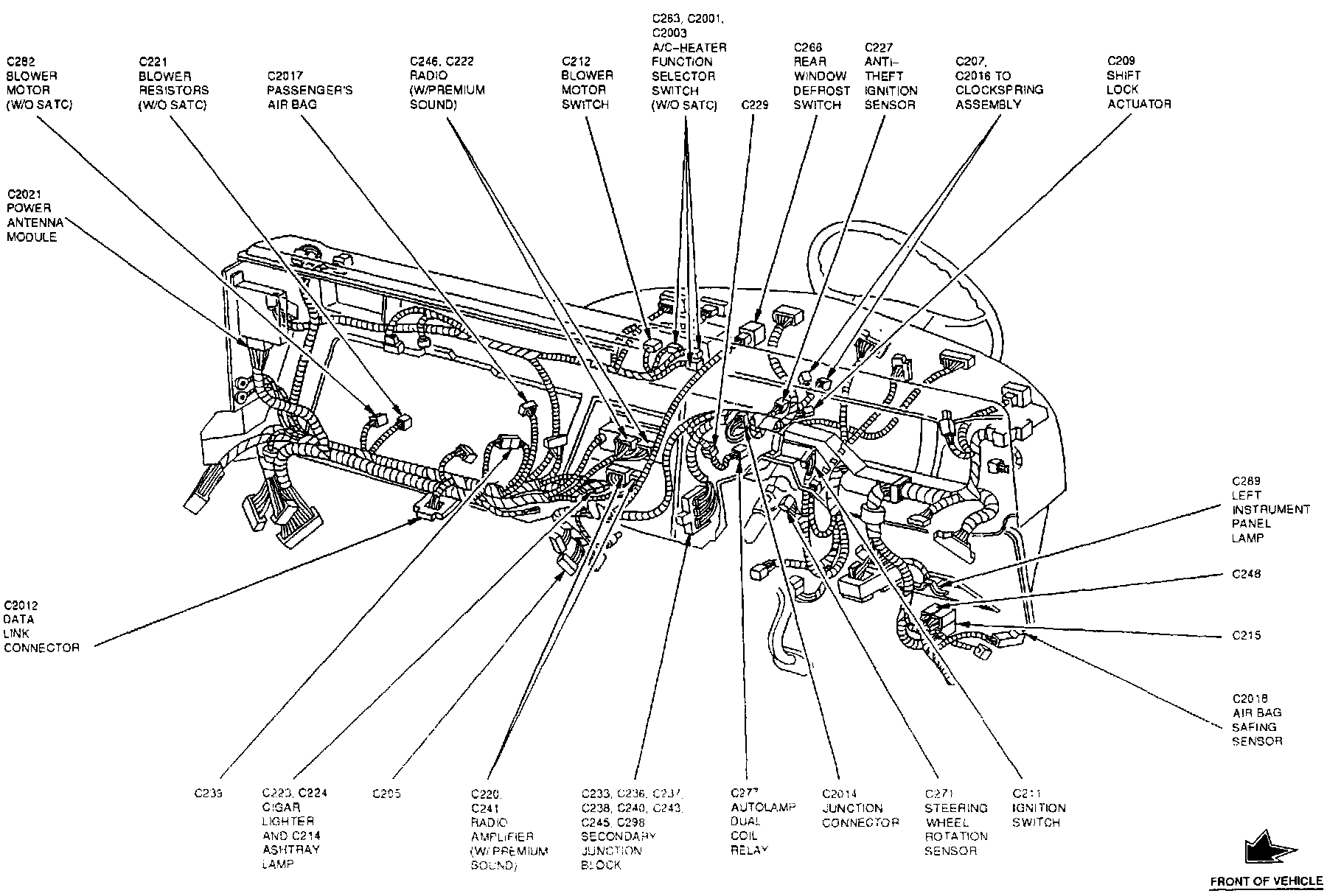

Behind Instrument Panel View:





The Data Link Connector is located at the bottom of instrument panel, below the glove box.
