Instrument Cluster and Panel Lighting
>>
Test E : Single Illumination Source Inoperative

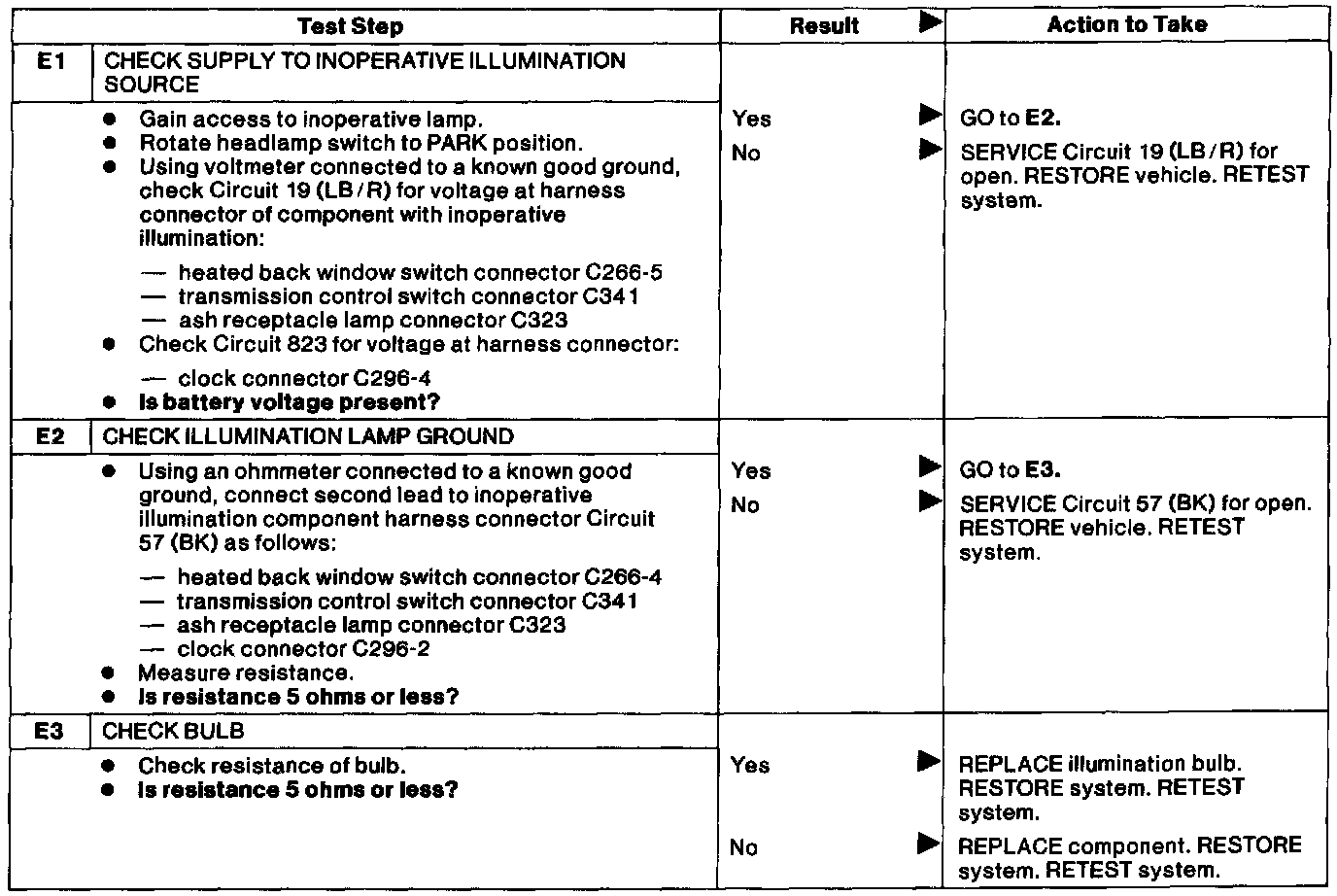

Test E : Single Illumination Source Inoperative
E1 - E3:
