Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster and Panel Lighting >> Test D : Audio System Illumination Inoperative

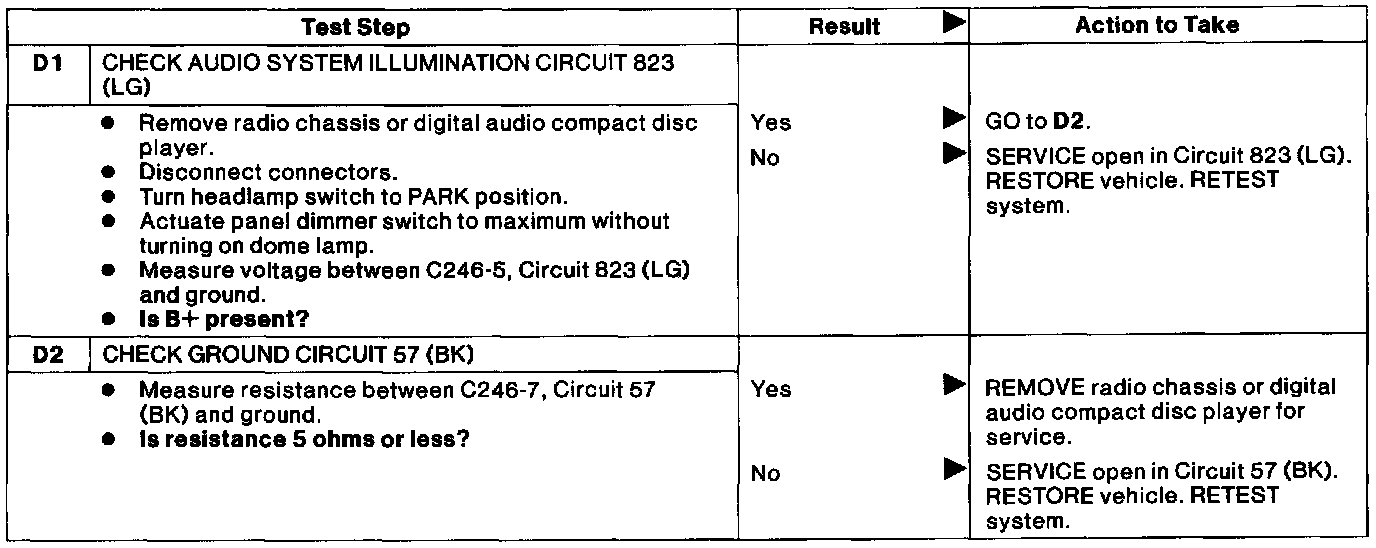

Test D : Audio System Illumination Inoperative

D1 - D2:
