Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster and Panel Lighting >> Test A : Control Illumination Inoperative

Test A : Control Illumination Inoperative

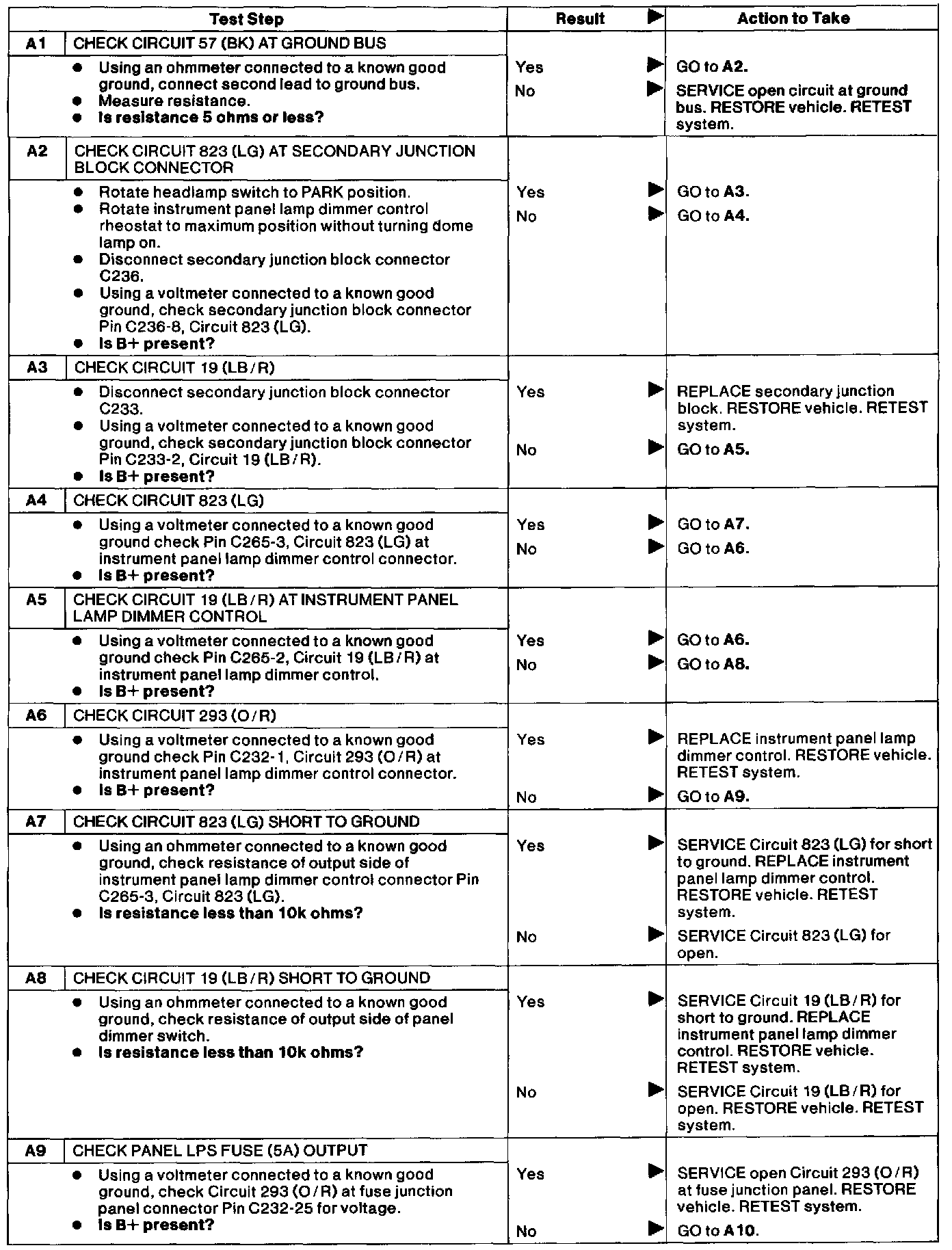

A1 - A9:

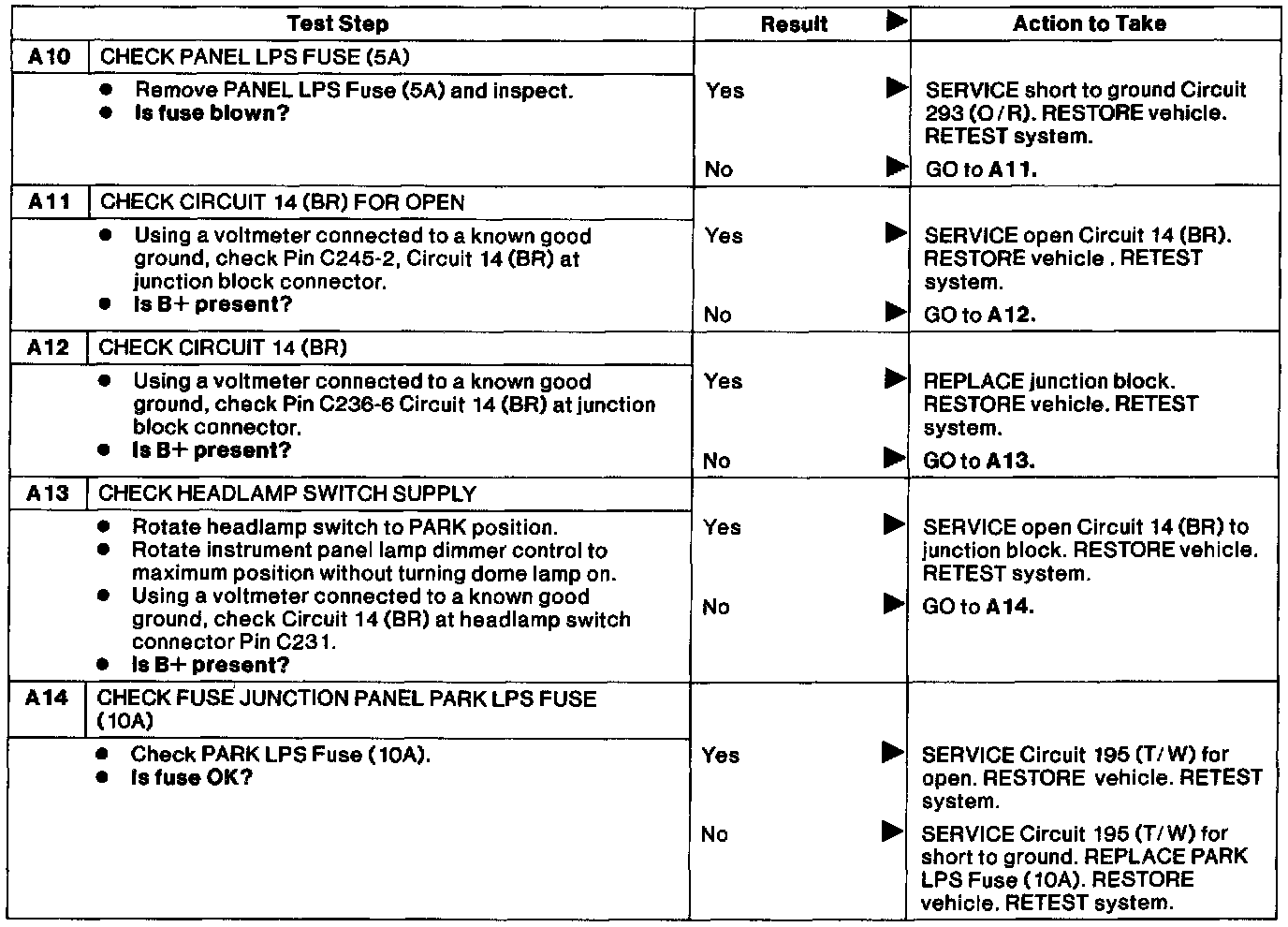

A10 - A14:
