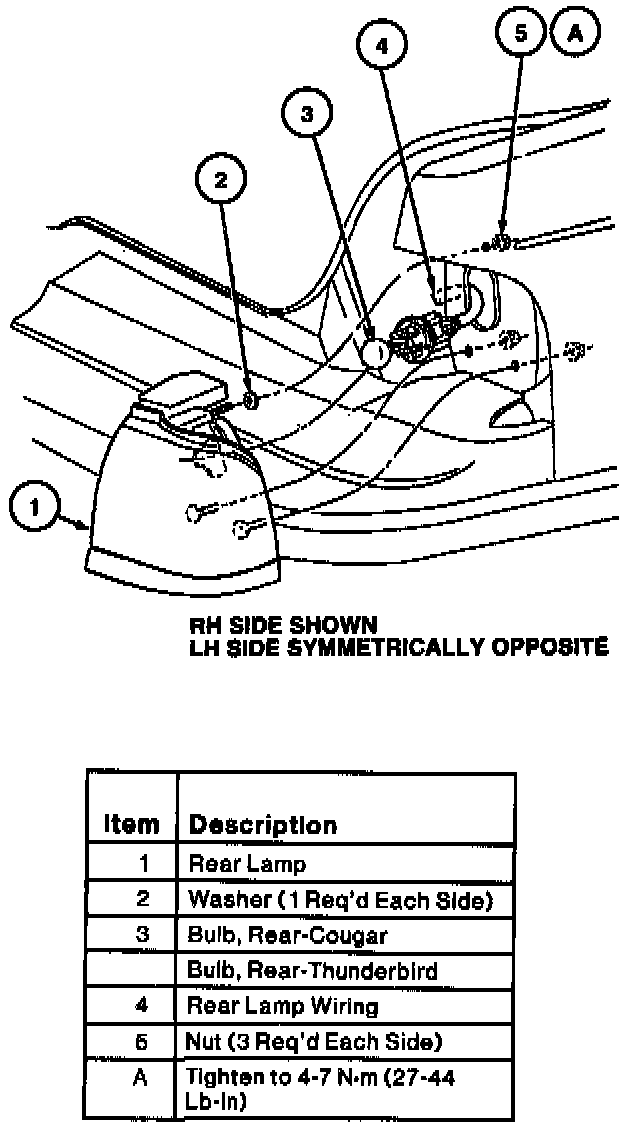

Rear Lamps

Thunderbird Shown, Cougar Similar:

REMOVAL
1. Remove luggage compartment front cover as necessary.
2. Remove three nuts retaining rear lamp to lower back panel.
3. Remove rear lamp from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten nuts to 4-7 Nm (27-44 Lb-In).
