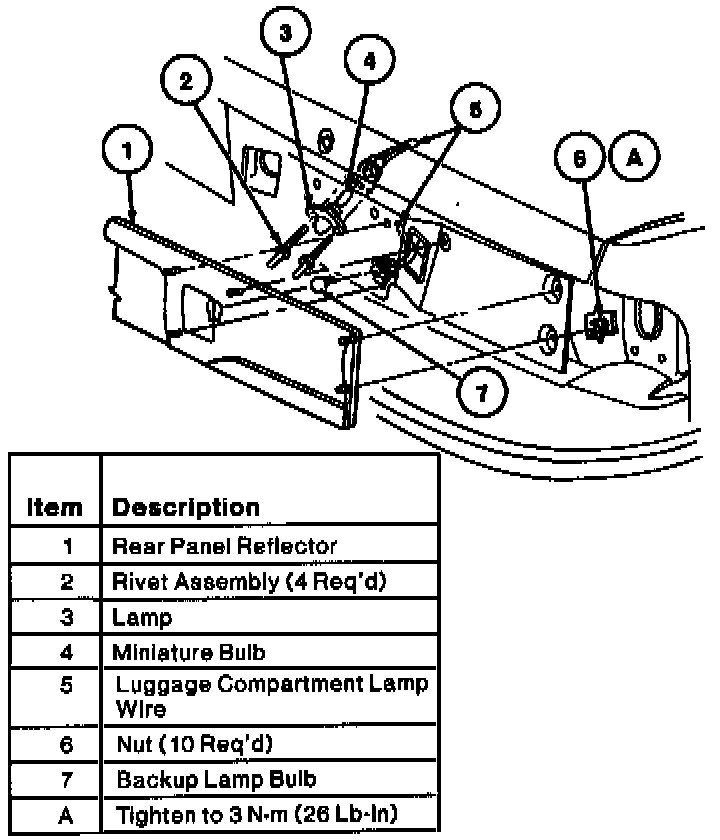

Rear Lamp Reflector

REMOVAL
1. Remove two lamps through luggage compartment door access holes.
2 Remove 10 nuts retaining rear panel reflector to luggage compartment door.
3. Remove rear panel reflector from luggage compartment door.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten nuts retaining rear panel reflector to 3 Nm (26 Lb-In).
