Horn Switch: Service and Repair

REMOVAL
1. Center front wheels to the straight-ahead position.

WARNING: ALWAYS WEAR SAFETY GLASSES WHEN SERVICING AN AIR BAG VEHICLE AND WHEN HANDLING AN AIR BAG.

2. Disconnect battery ground cable.
3. Disconnect positive battery cable and wait one minute.
4. Remove driver side air bag module.

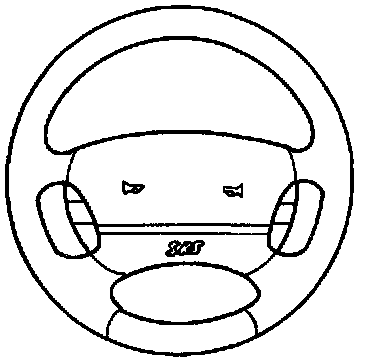

5. Disconnect two ground wires (BK) from upper horn switch plates. Disconnect horn wire (P/O) at lower right horn switch plate. Remove four Torx(R) head retaining bolts and remove horn switch plates.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining bolts to 4-5 N.m (36-44 Lb-in).
