Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Service and Repair

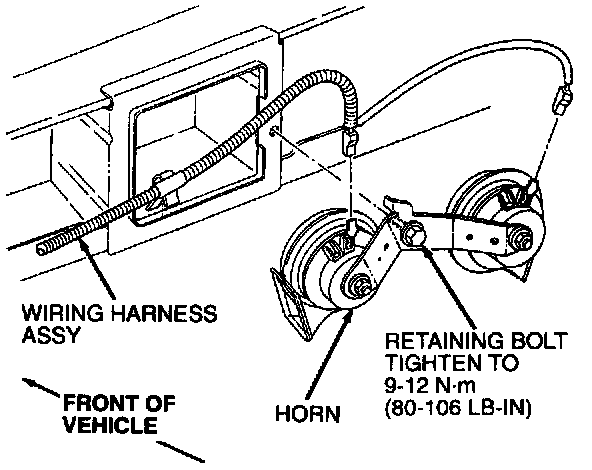

Horn: Service and Repair
REMOVAL
1.
Disconnect
horn
.
2.
Remove bolt retaining
horn
and support assembly.
INSTALLATION
1.
Follow removal procedure in reverse order.
2.
Tighten retaining bolt to 9-12 N.m (80-106 Lb-in).
