Glove Box Lamp: Service and Repair

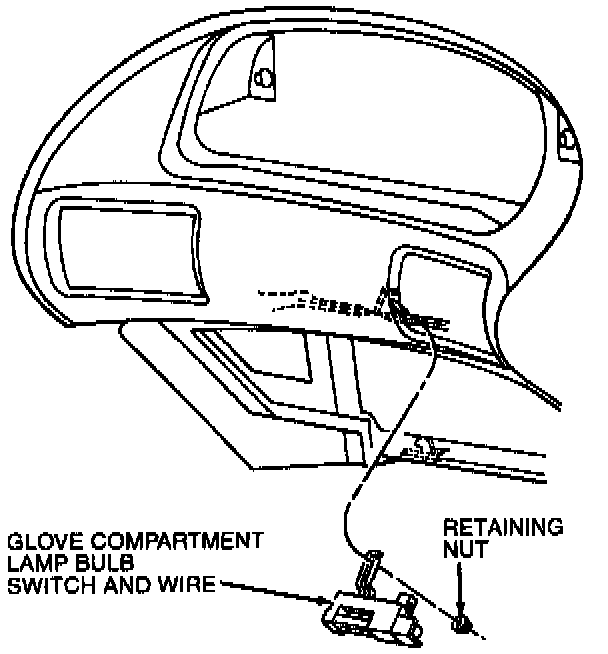

REMOVAL
1.
Remove glove compartment lamp retaining nut.
2.
Disconnect electrical connector.
3.
Remove glove compartment lamp switch and wire.
INSTALLATION
1.
Follow removal procedure in reverse order.
