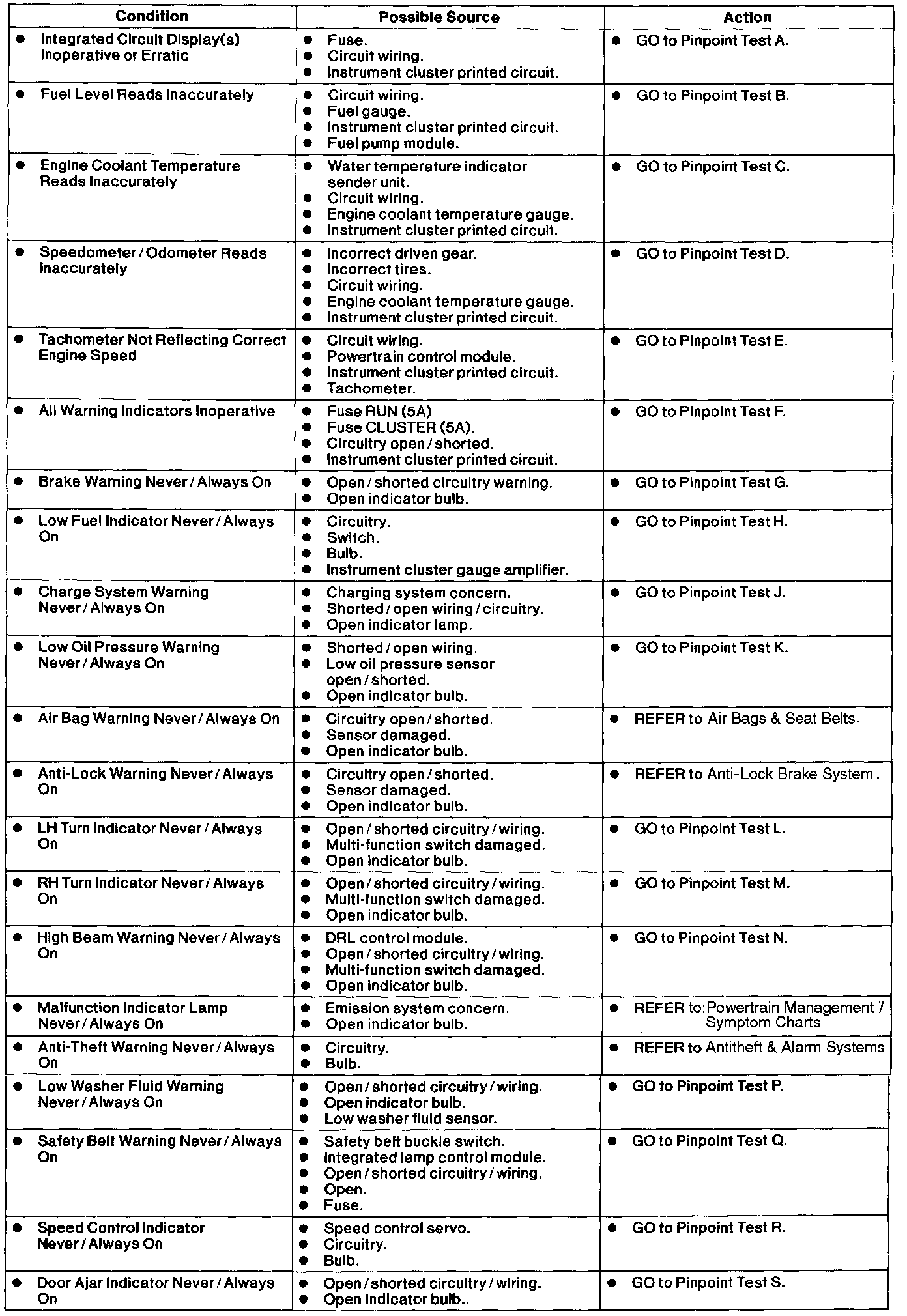

Conventional Instrument Cluster
Conventional Instrument Cluster
Use Rotunda 73 Digital Multimeter 105-R0051 and Instrument Gauge System Tester 014-R1063 or equivalent to perform pinpoint tests.
