Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Conventional Instrument Cluster) >> M: RH Turn Lamp Never/Always ON

M: RH Turn Lamp Never/Always ON

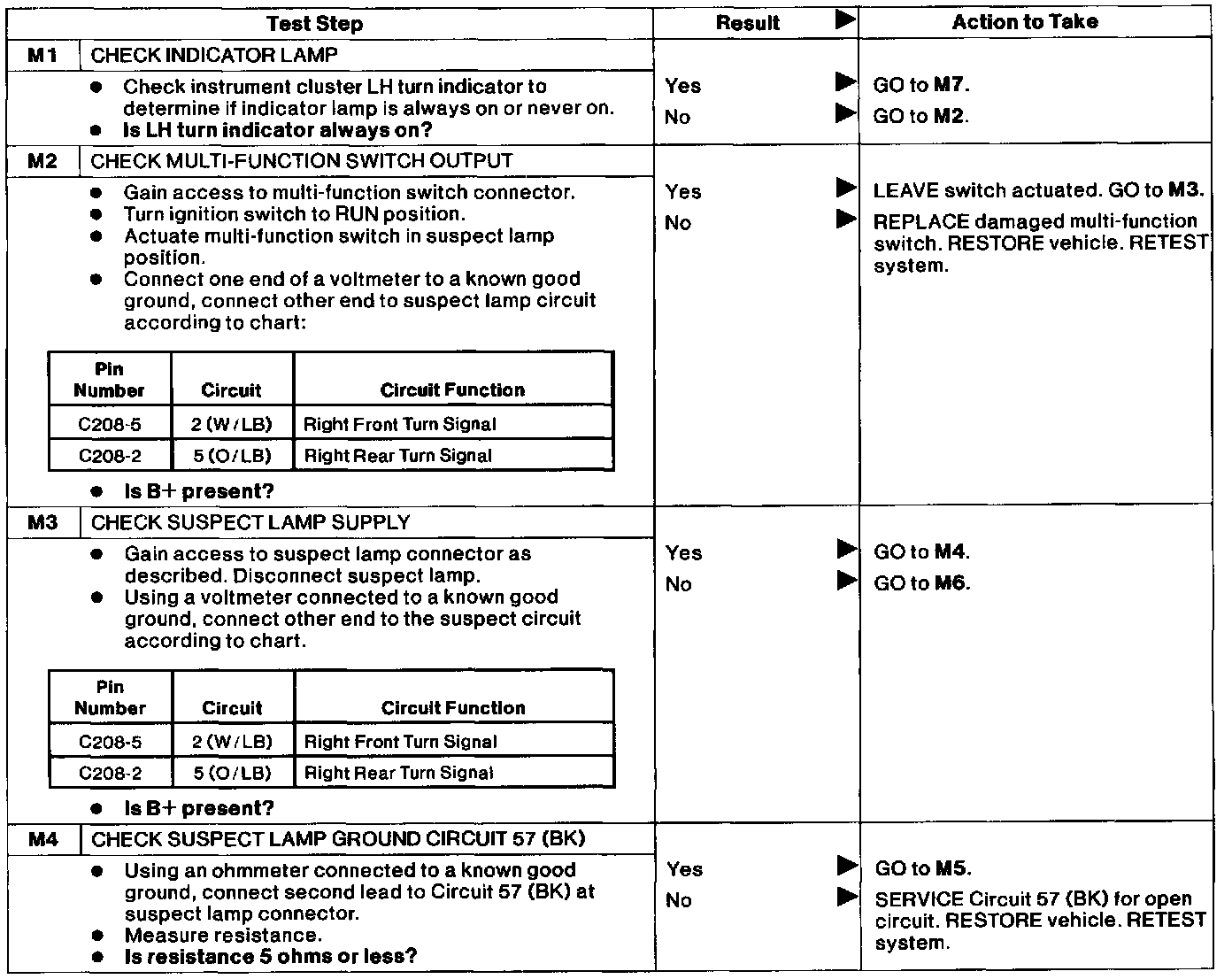

M1 - M4:

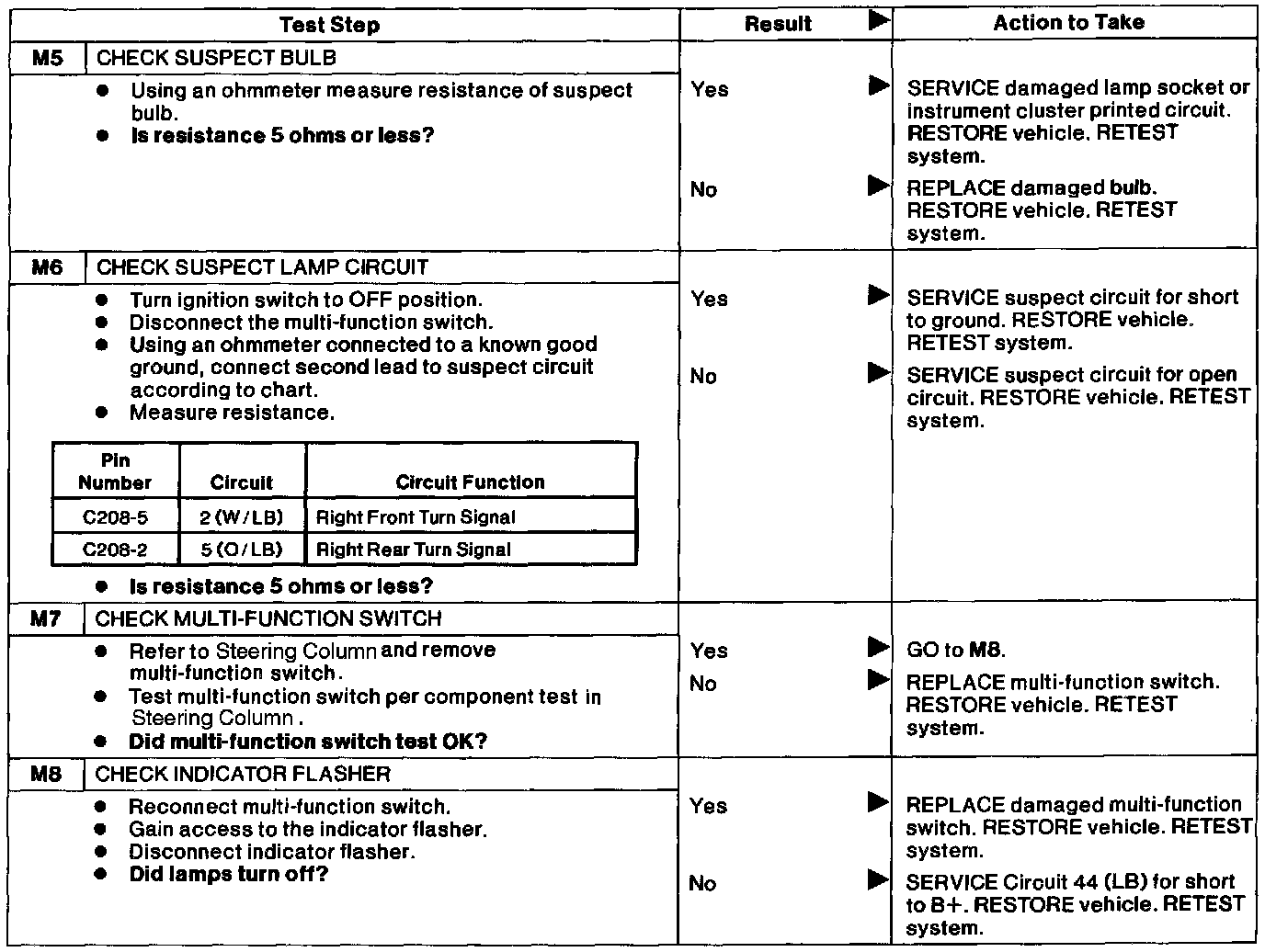

M5 - M8:
