Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Conventional Instrument Cluster) >> B: Fuel Level Reads Inaccurately

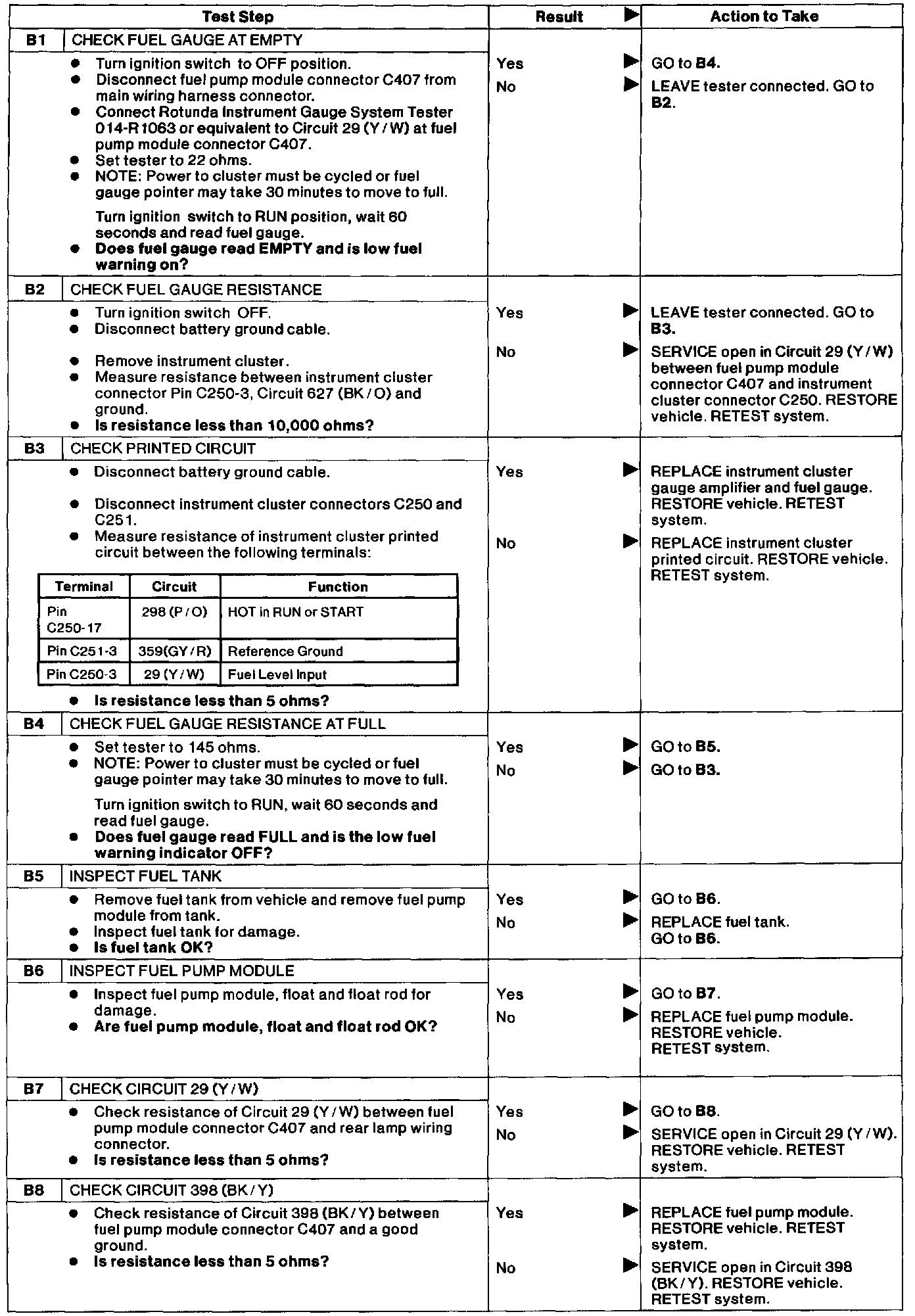

B: Fuel Level Reads Inaccurately

B1 - B8:
