Removal and Installation

REMOVAL
1. Disconnect battery ground cable.
2. Remove retaining screws and instrument panel reinforcement.
3. Remove retaining screws and instrument panel lower shield.
4. Remove fasteners holding steering column. Gently lower steering column.

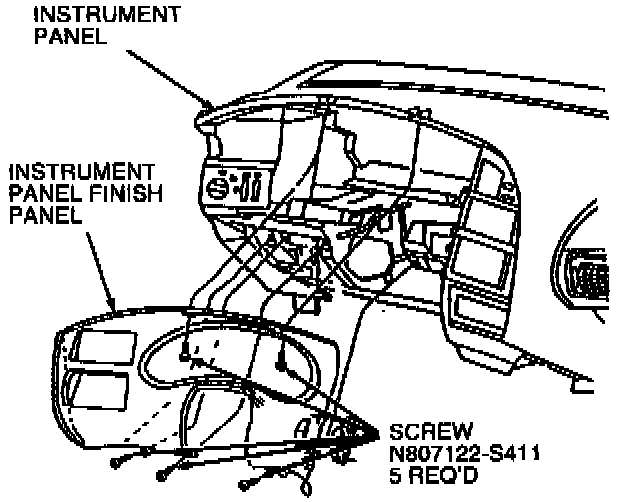

5. Remove screws holding the instrument panel finish panel and gently pry off.

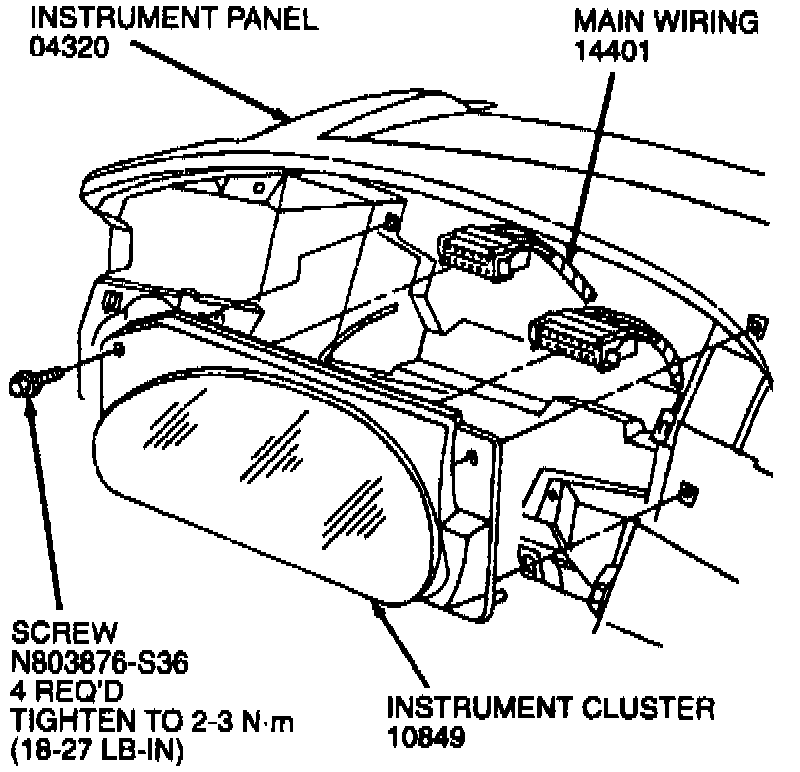

6. Remove four instrument cluster retaining screws. (Do not remove screws from the instrument cluster main lens and instrument cluster mask).
7. Slide the instrument cluster to the right of the instrument panel opening and disconnect the instrument panel harness from the back of the instrument cluster.
8. Remove the instrument cluster from the instrument panel.

Instrument Panel Replacement (Part 2 Of 2):

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten instrument cluster retaining screws to 2-3 N.m (18-27 Lb-in).
