Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Semi Automatic Climate Control >> D: A/C Sunload Sensor Inoperative

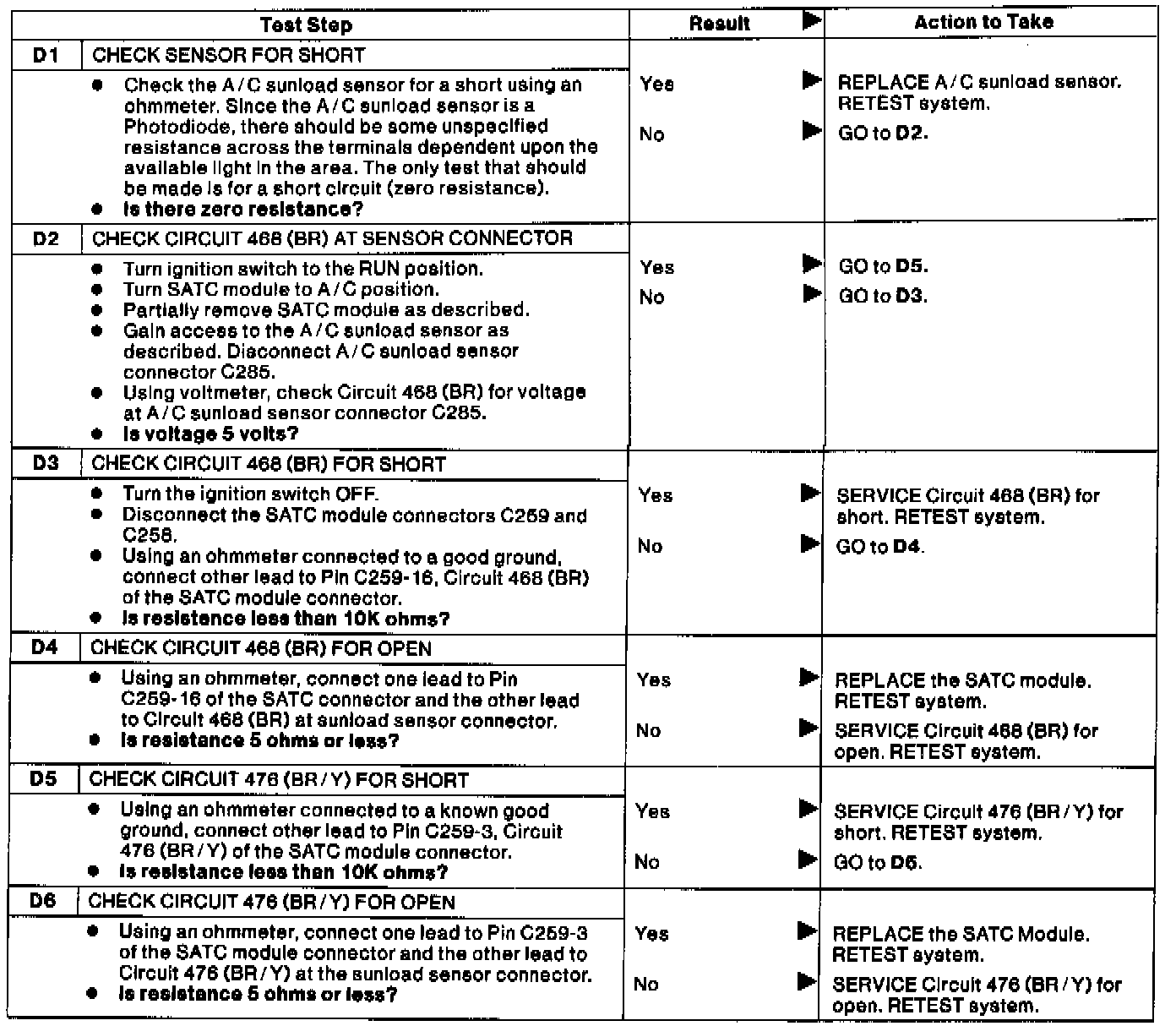

D: A/C Sunload Sensor Inoperative

D1-D6:
