Service Port HVAC: Locations

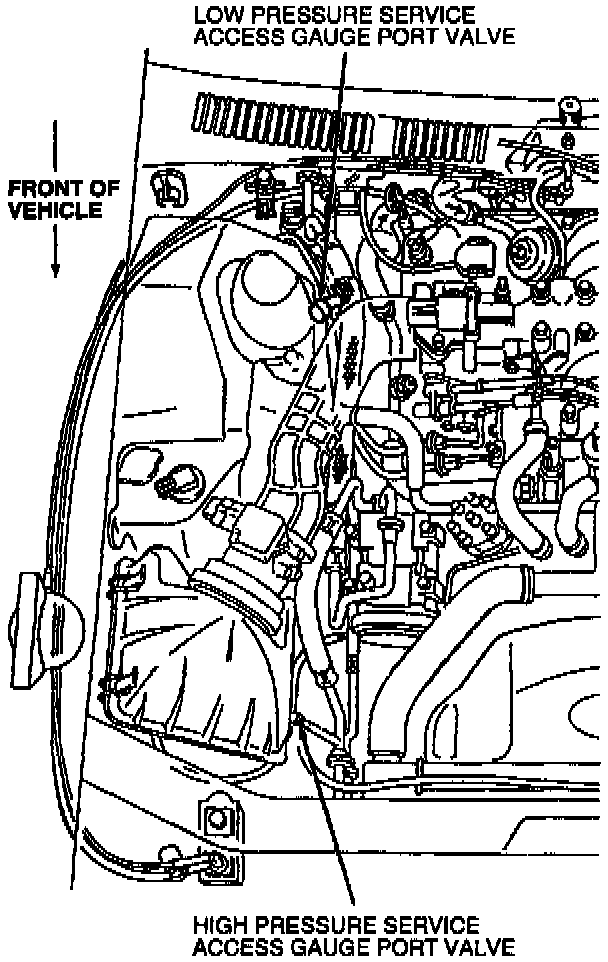

The low-pressure service access gauge port valve is located on the suction accumulator/drier between the A/C evaporator core and the A/C compressor.

The high-pressure service access gauge port valve is located on the A/C compressor to condenser discharge line.
