Cabin Temperature Sensor / Switch: Service and Repair

Removal

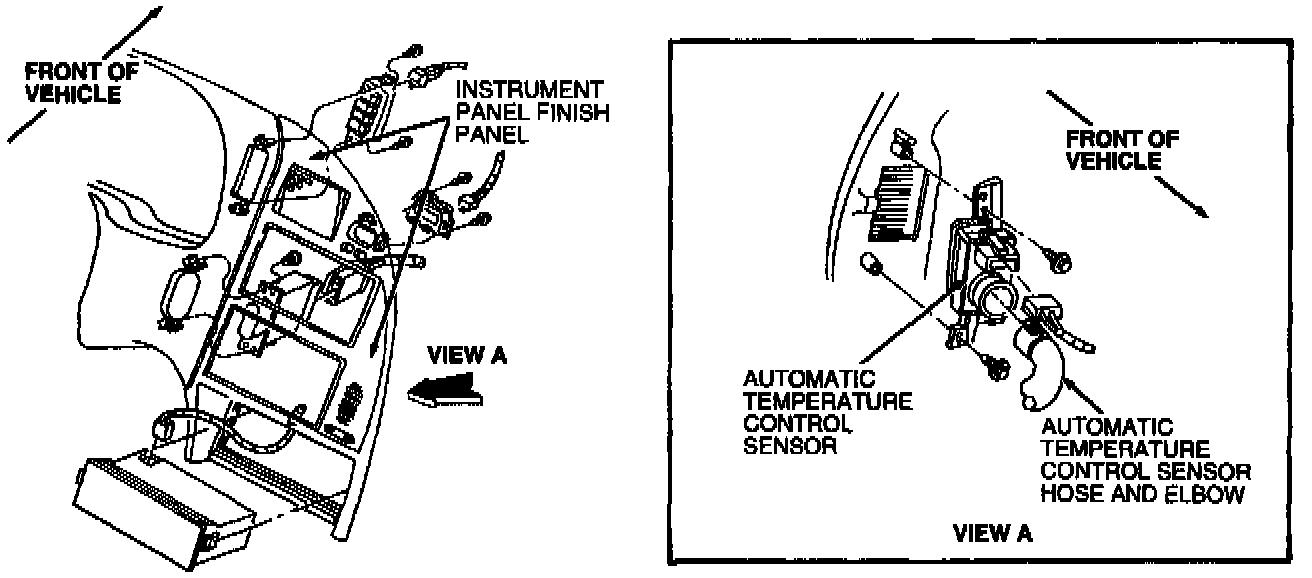

1. Remove instrument panel finish panel and cluster instrument panel.
2. Remove electrical connector and automatic temperature control sensor hose and elbow from automatic temperature control sensor.
3. Remove the two screws which retain the automatic temperature control sensor and remove automatic temperature control sensor.

Installation
1. Follow removal procedure in reverse order.
