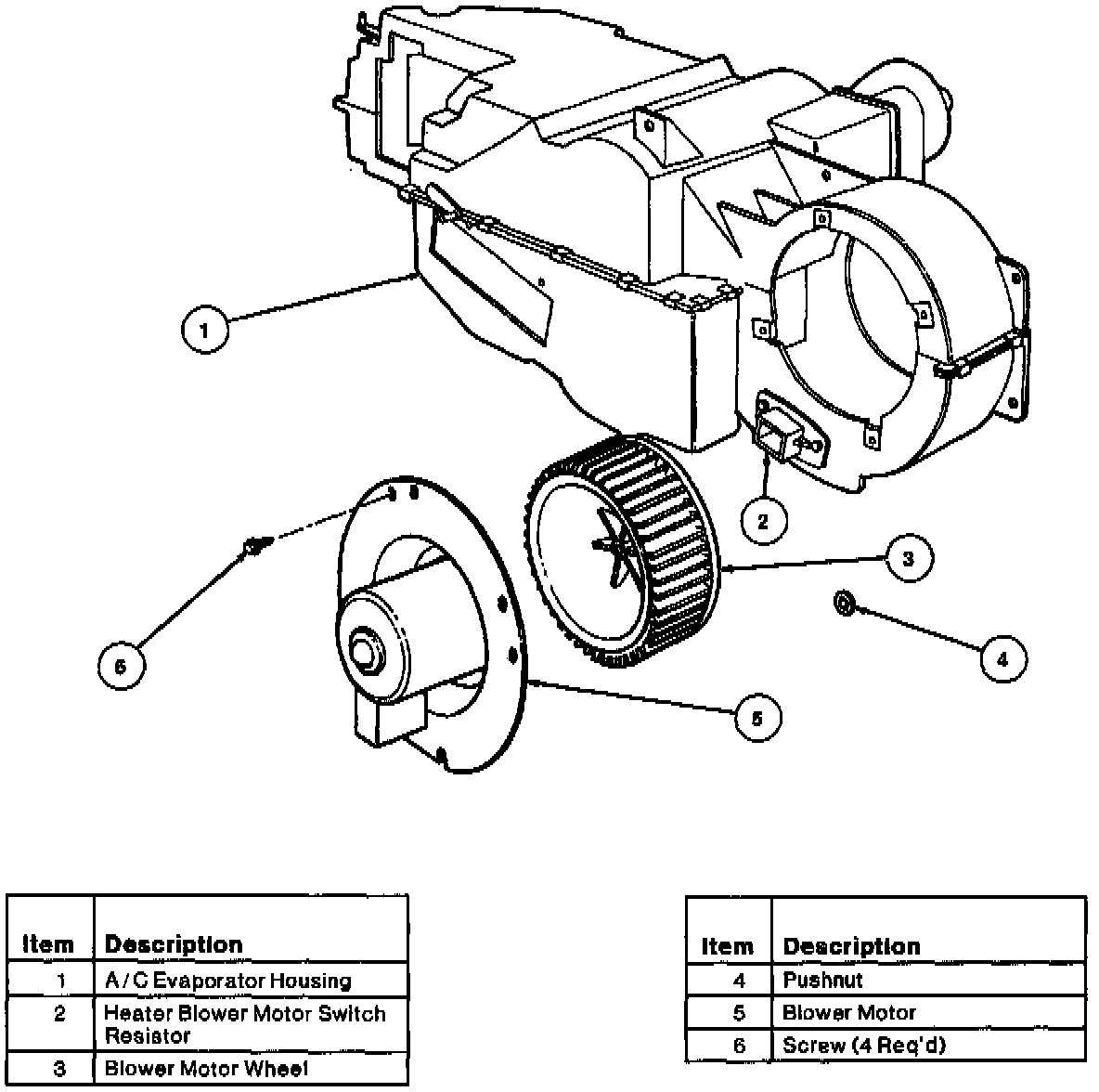

Heater Blower Motor and Blower Motor Wheel Assembly

Removal
1. Remove the glove compartment to gain access to the heater blower motor and blower motor wheel assembly mounting screws.
2. Disconnect wire harness connector from blower motor.
3. Remove four screws and remove the heater blower motor assembly and blower motor wheel assembly from the heater blower motor housing.

Installation
1. Follow removal procedure in reverse order.
