Removal

1. Remove cooling fan motor/fan blade (8600) and fan shroud (8146) assembly.

CAUTION: The valve covers (6582), oil pan (6675) and oil pan gasket (6710) must be removed prior to the engine front cover (6019) or possible engine damage and/or leakage may occur upon reassembly.

2. Loosen water pump pulley bolts.
3. Remove drive belt (8620).
4. Remove water pump pulley (8509).
5. Raise vehicle on hoist
6. Remove bolts retaining power steering pump to cylinder blocks (6010) and engine front cover.

NOTE: The front lower bolt on the power steering pump (3A674) will not come all the way out.

7. Wire power steering pump out of way.
8. Remove oil pan and oil pan gasket.
9. Remove crankshaft pulley bolt (6A340) and crankshaft pulley retaining washer (6378) from crankshaft (6303).

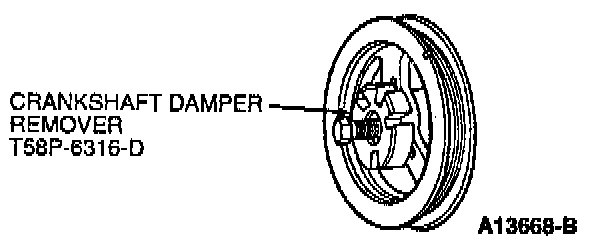

10. Install Crankshaft Damper Remover T58P-6316-D on crankshaft pulley (6312) and pull crankshaft Dulled from crankshaft
11. Lower vehicle.
12. Remove bolts retaining power steering oil reservoir (3A697) to the LH coil bracket and position power steering oil reservoir out of the way.
13. Remove both RH and LH valve covers.
14. Disconnect the fuel charging wiring (9D930) from both ignition coils (12029) and camshaft position sensor (CMP sensor)(6B288).
15. Remove three bolts retaining RH ignition coil bracket to engine front cover.
16. Remove LH ignition coil from bracket and lay on top of engine.
17. Remove three nuts retaining LH ignition coil bracket to engine front cover.
18. Slide RH ignition coil bracket and ignition wires off mounting studs and lay assembly on top of engine. Remove bolts and retaining belt idler pulley, then remove pulley.
19. Disconnect fuel charging wiring from crankshaft position sensor (CKP sensor)(6C315).

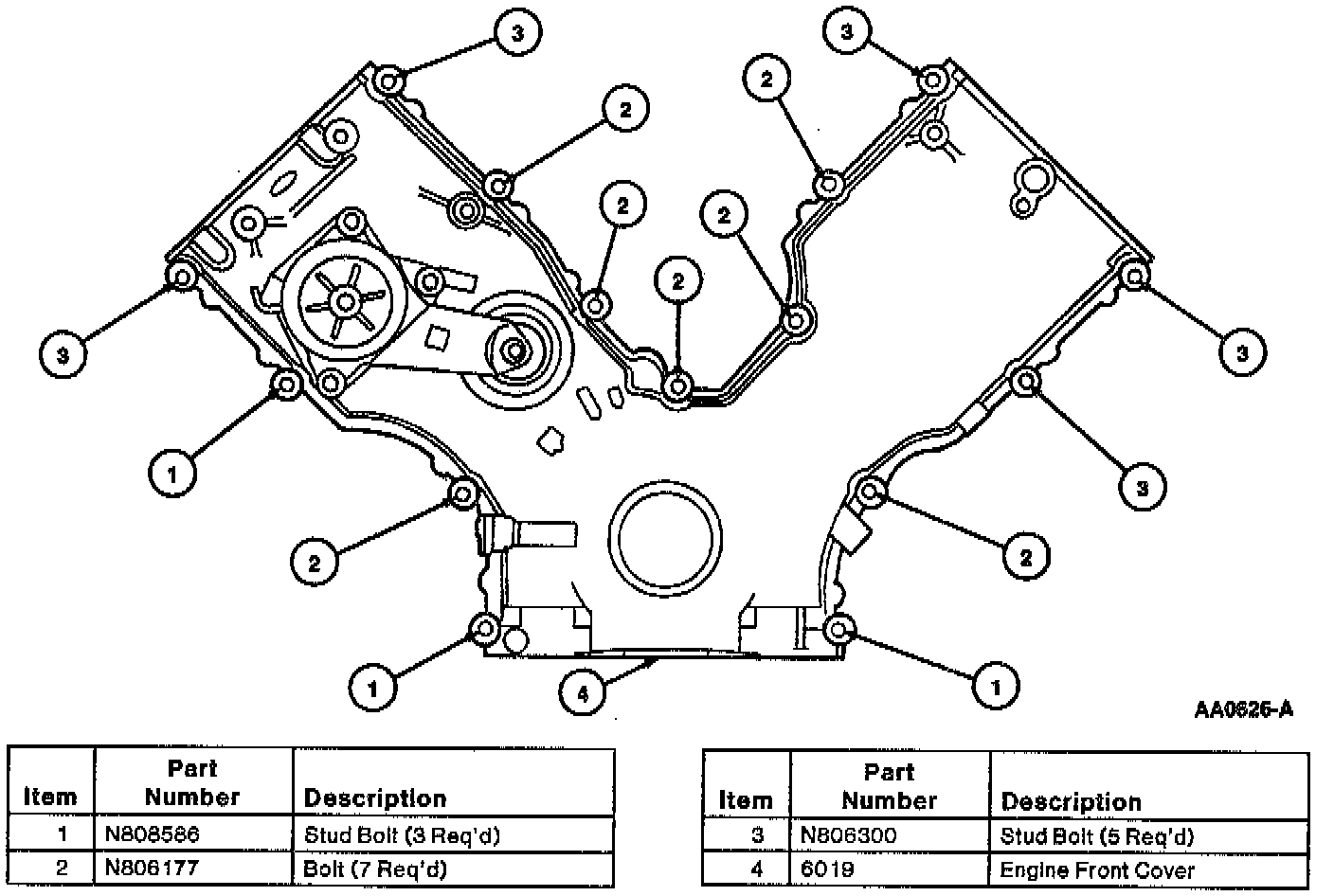

20. Remove eight stud bolts and seven bolts retaining engine front cover to engine.
21. Remove engine front cover.
