Valve Guide Inner Diameter

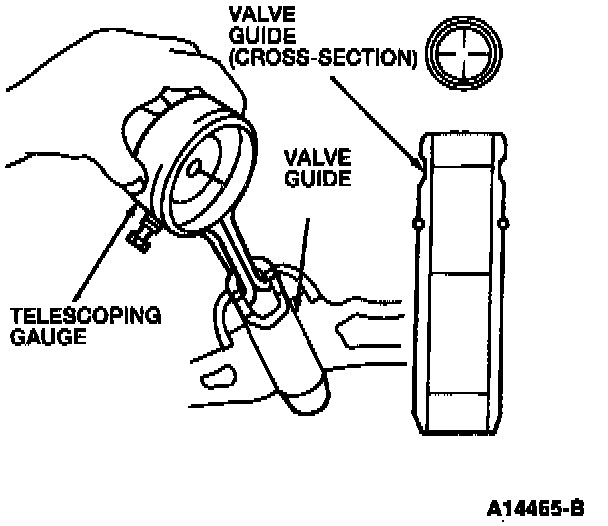

1. Measure the inner diameter of the valve guides at the points shown.
2. If valve guide is not within specification, ream the valve guide and install a valve with an oversize stem or replace the valve guide. Follow Service and Repair procedures.
