Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Caliper >> Rear

Rear

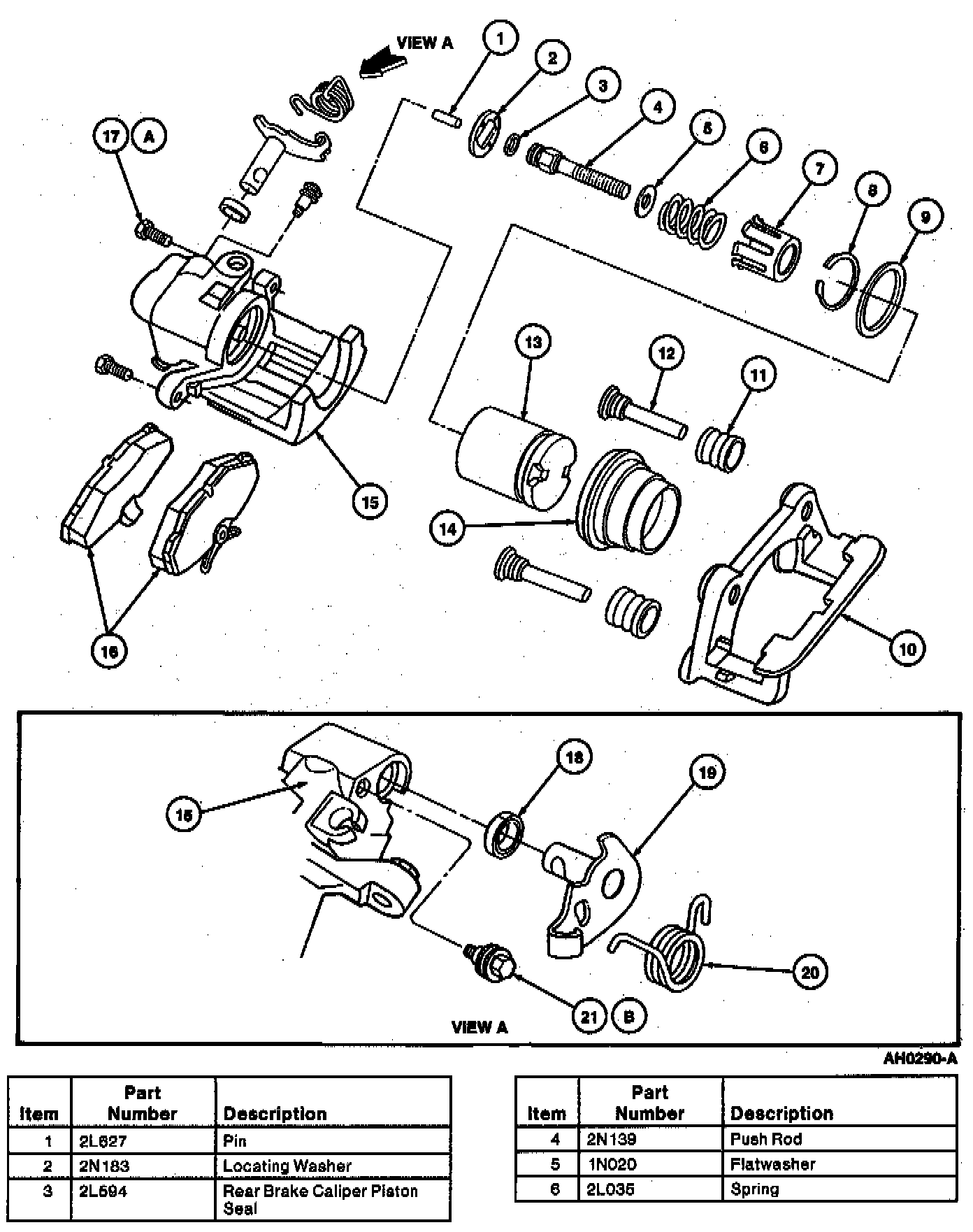

(Part 1 Of 2):

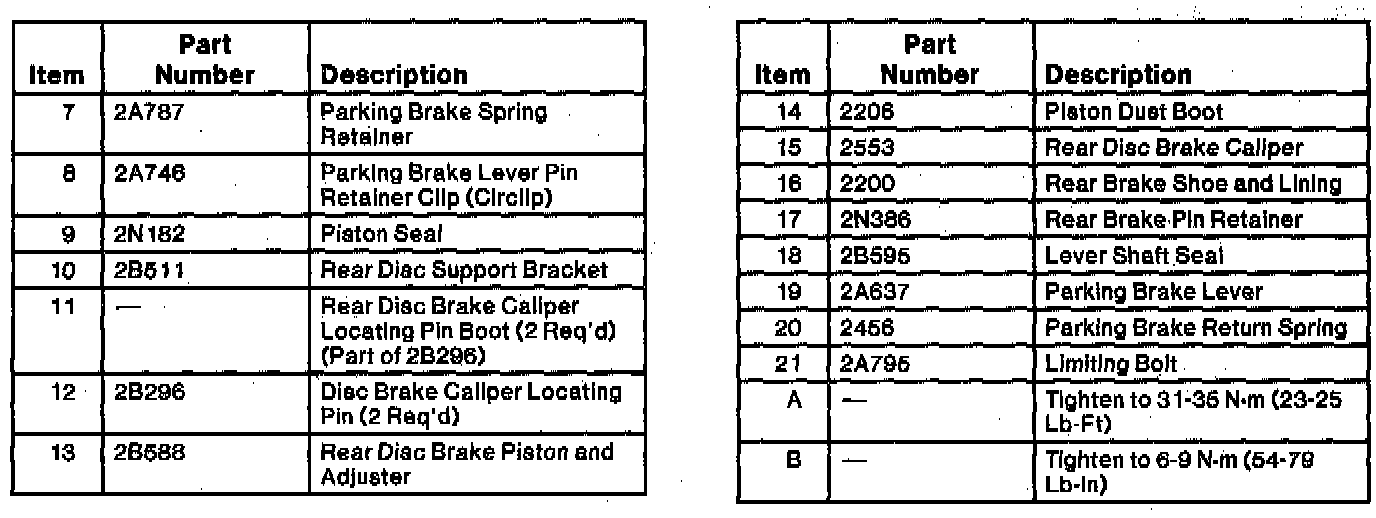

(Part 2 Of 2):
