System Diagram

Electronic Engine Controls (Part 1 Of 8):

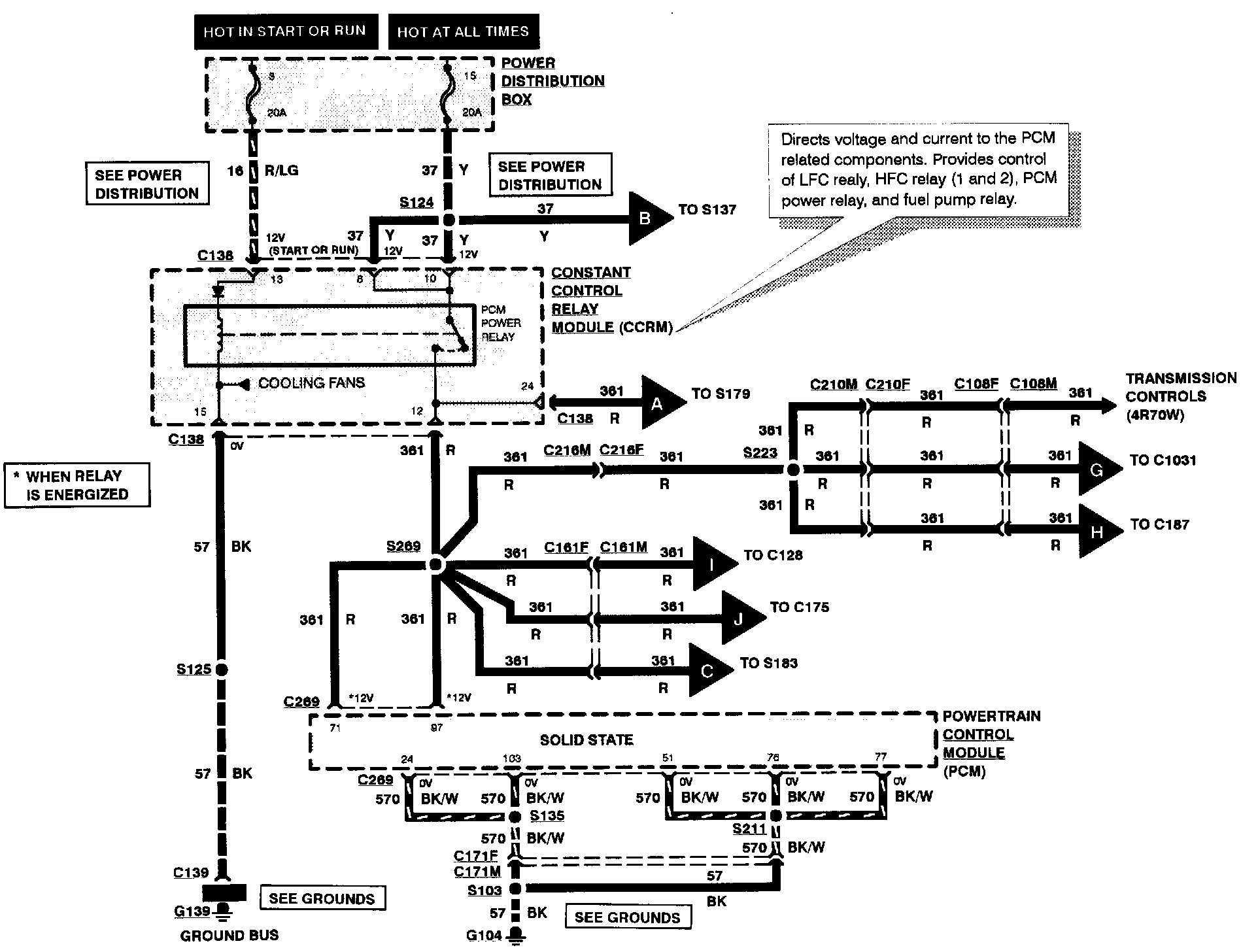

PCM POWER RELAY

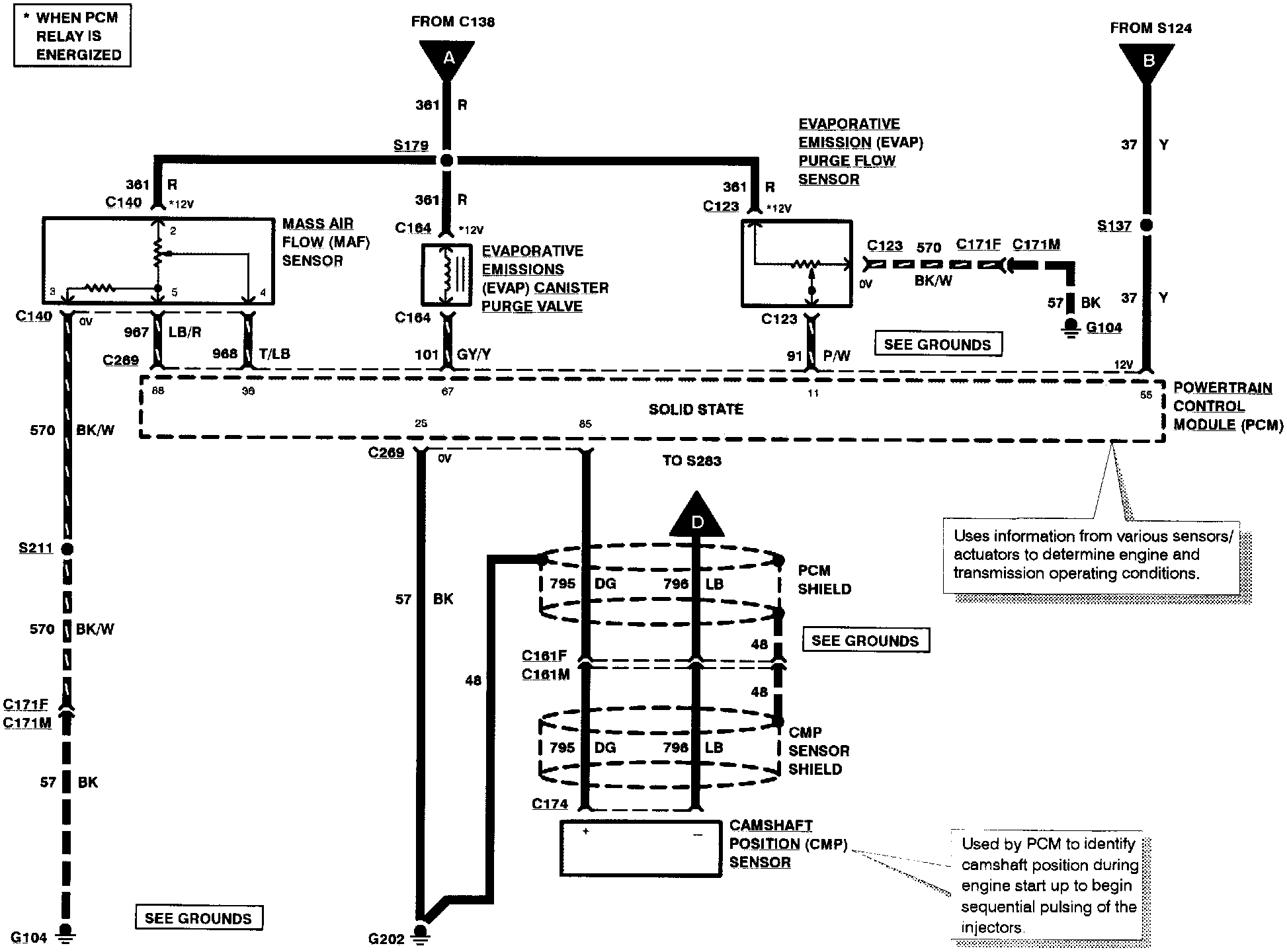

Electronic Engine Controls (Part 2 Of 8):

CAMSHAFT POSITION SENSOR
EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
EVAPORATIVE EMISSION PURGE FLOW SENSOR
MASS AIR FLOW SENSOR

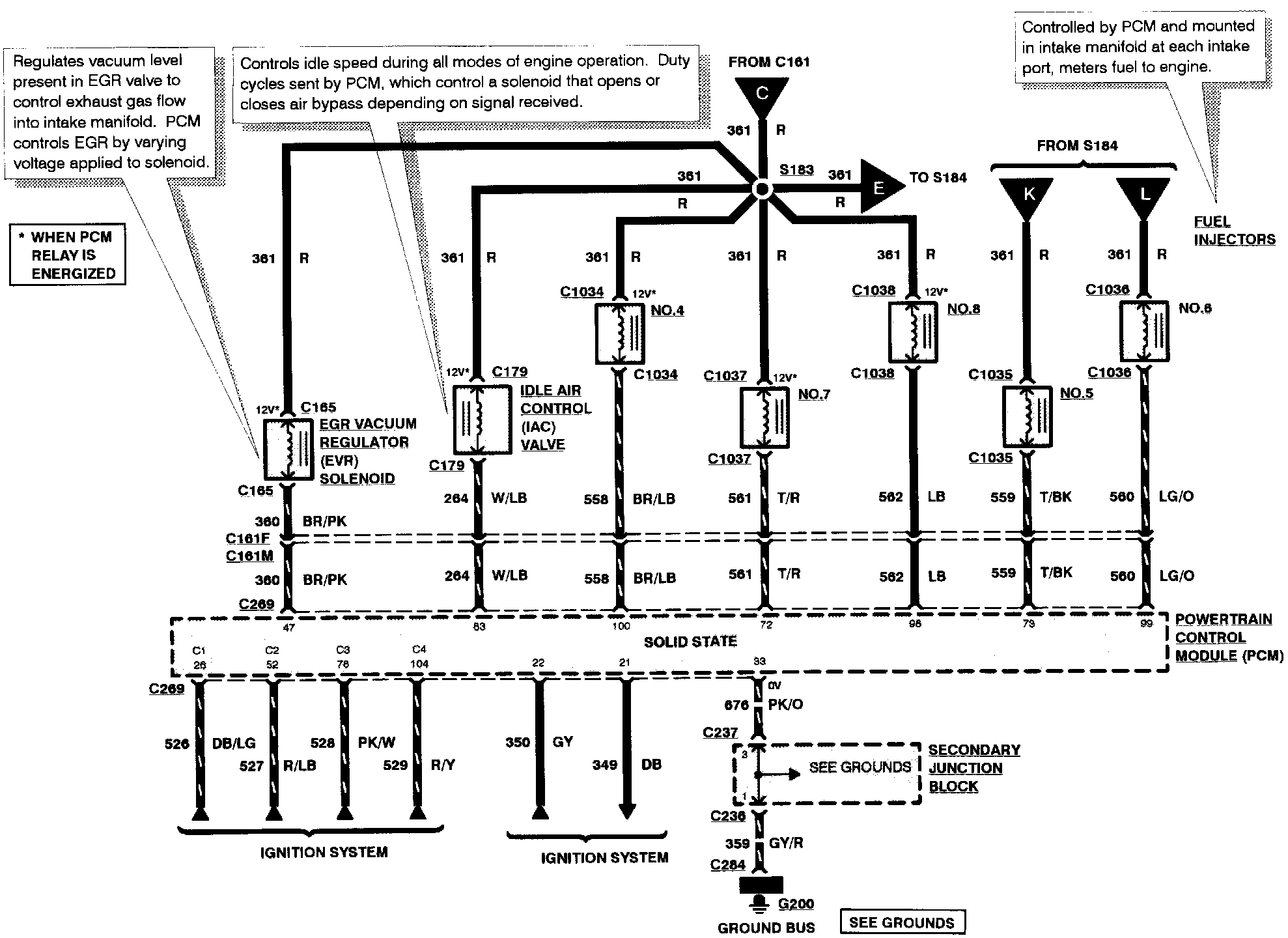

Electronic Engine Controls (Part 3 Of 8):

EGR VACUUM REGULATOR SOLENOID
FUEL INJECTOR 4
FUEL INJECTOR 5
FUEL INJECTOR 6
FUEL INJECTOR 7
FUEL INJECTOR 8
IDLE AIR CONTROL VALVE

Electronic Engine Controls (Part 4 Of 8):

FUEL INJECTOR 1
FUEL INJECTOR 2
FUEL INJECTOR 3
VEHICLE SPEED SENSOR

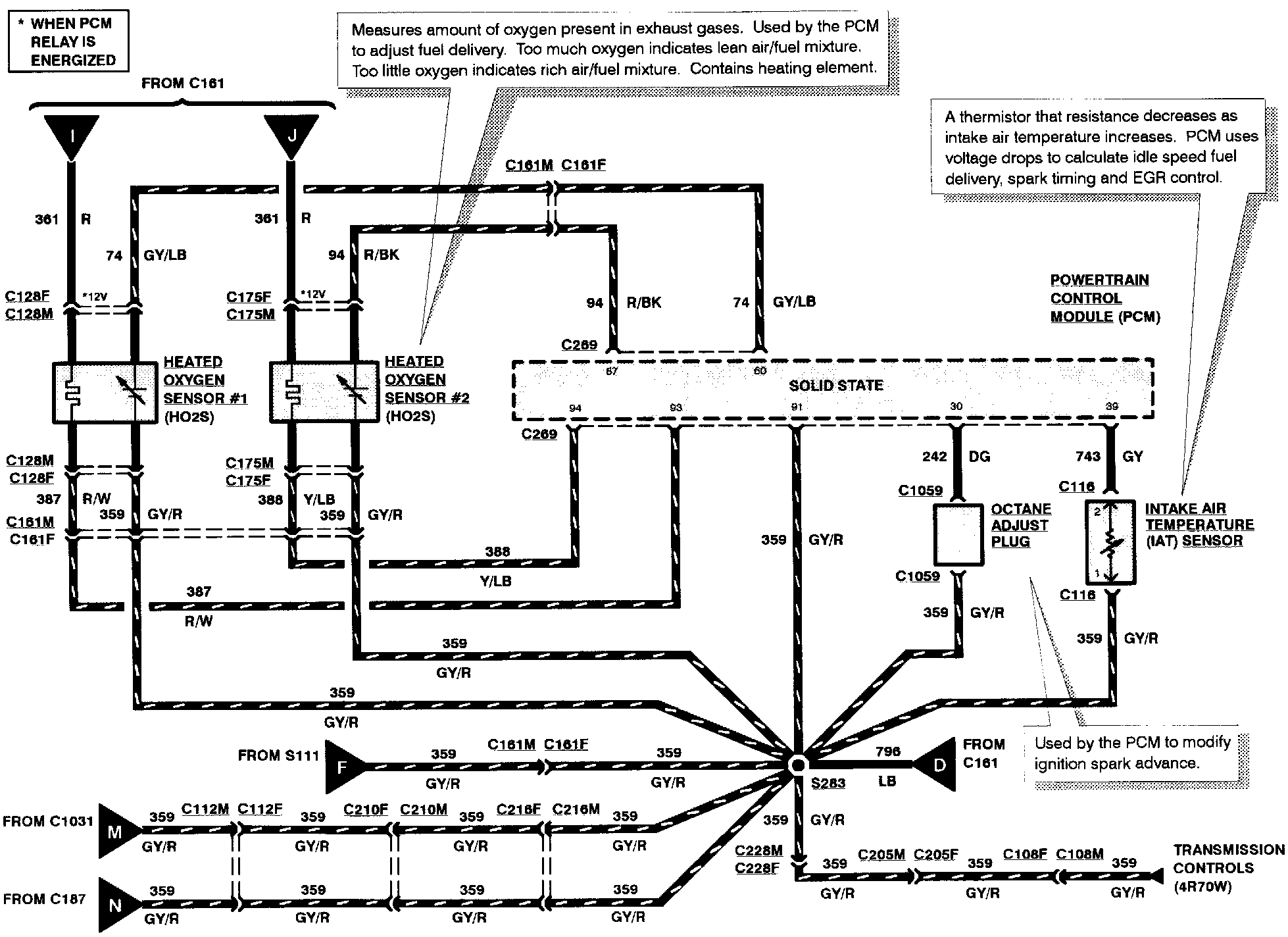

Electronic Engine Controls (Part 5 Of 8):

HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
INTAKE AIR TEMPERATURE SENSOR
OCTANE ADJUST PLUG

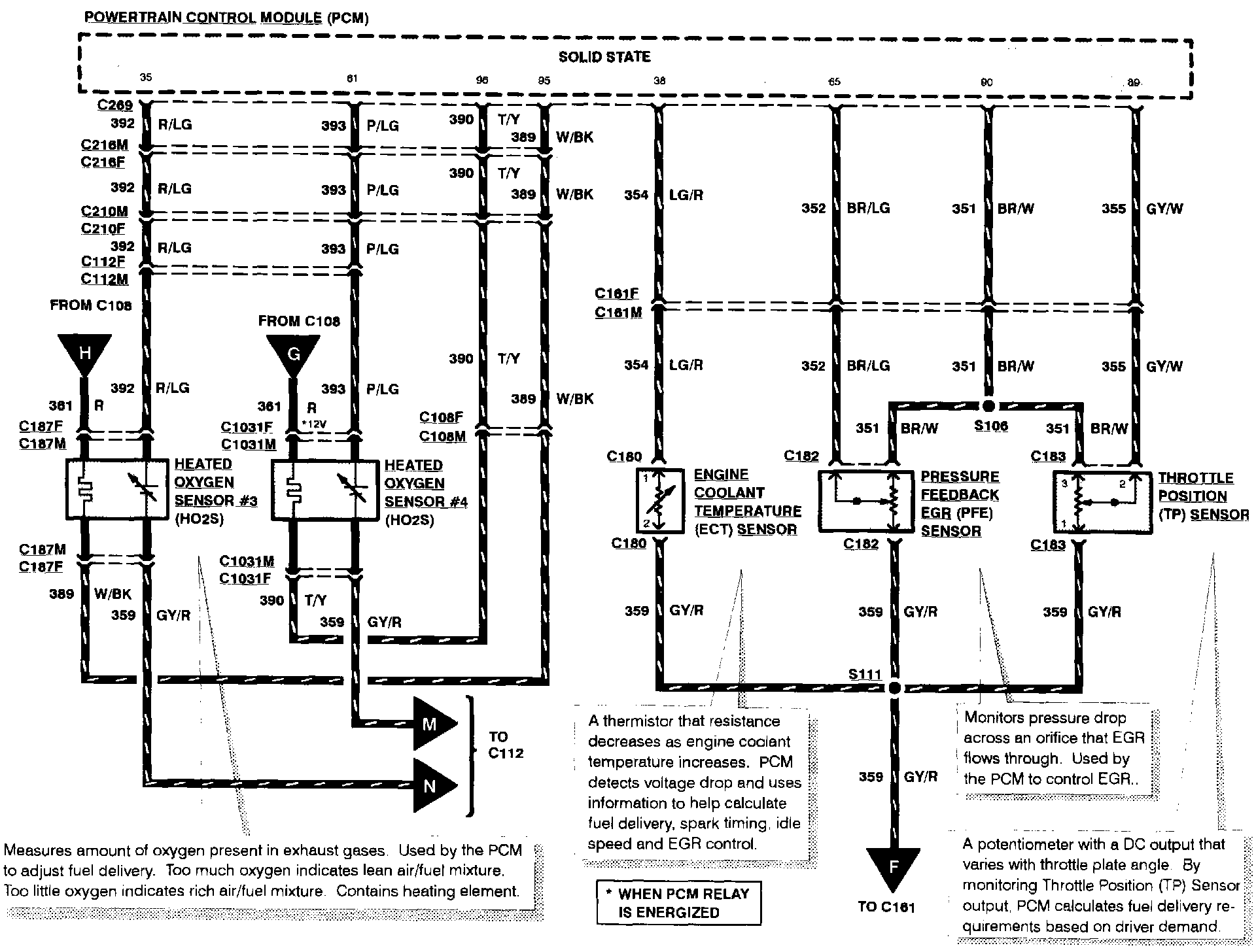

Electronic Engine Controls (Part 6 Of 8):

ENGINE COOLANT TEMPERATURE SENSOR
HEATED OXYGEN SENSOR #3
HEATED OXYGEN SENSOR #4
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR

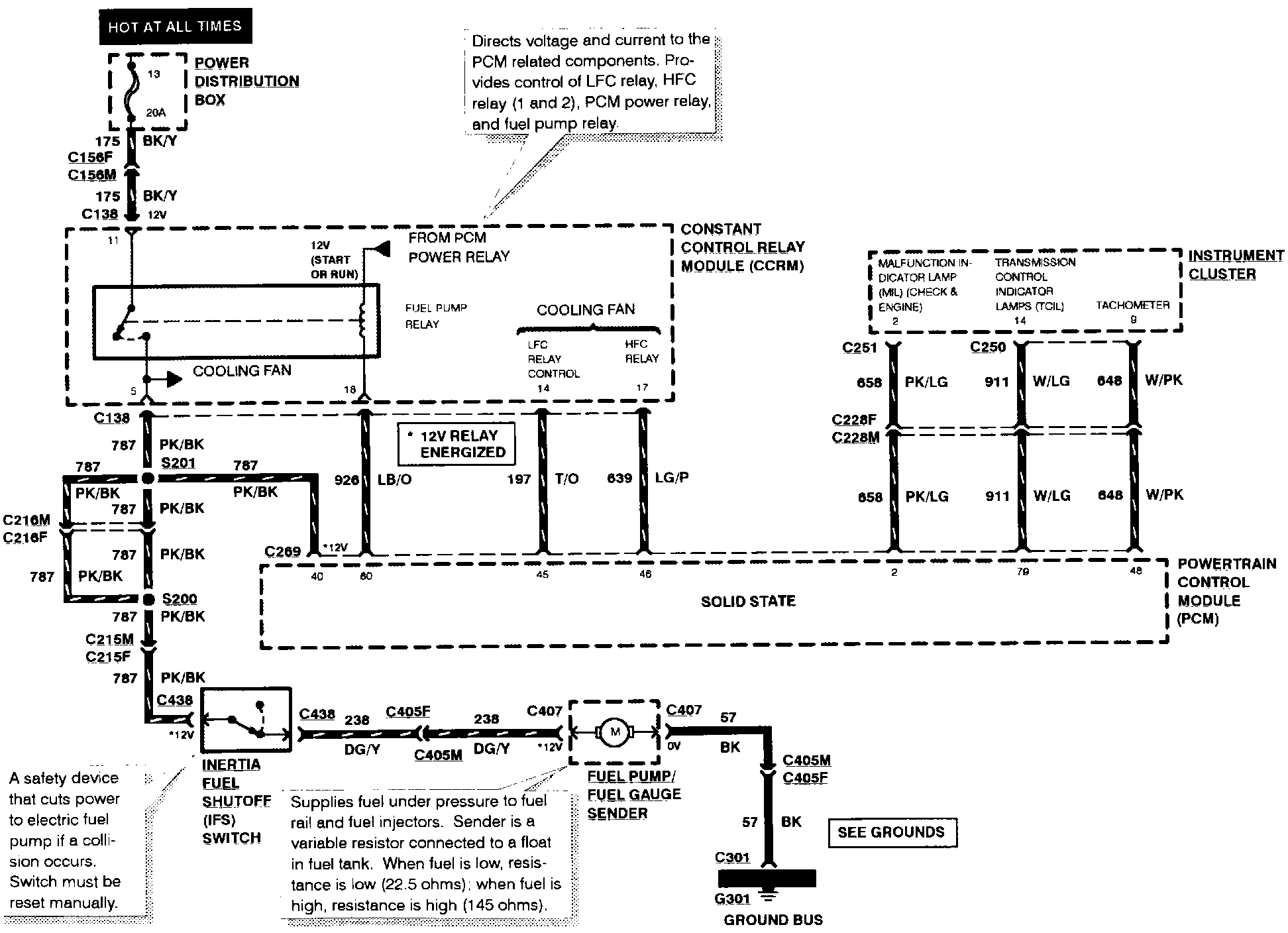

Electronic Engine Controls (Part 7 Of 8):

FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH

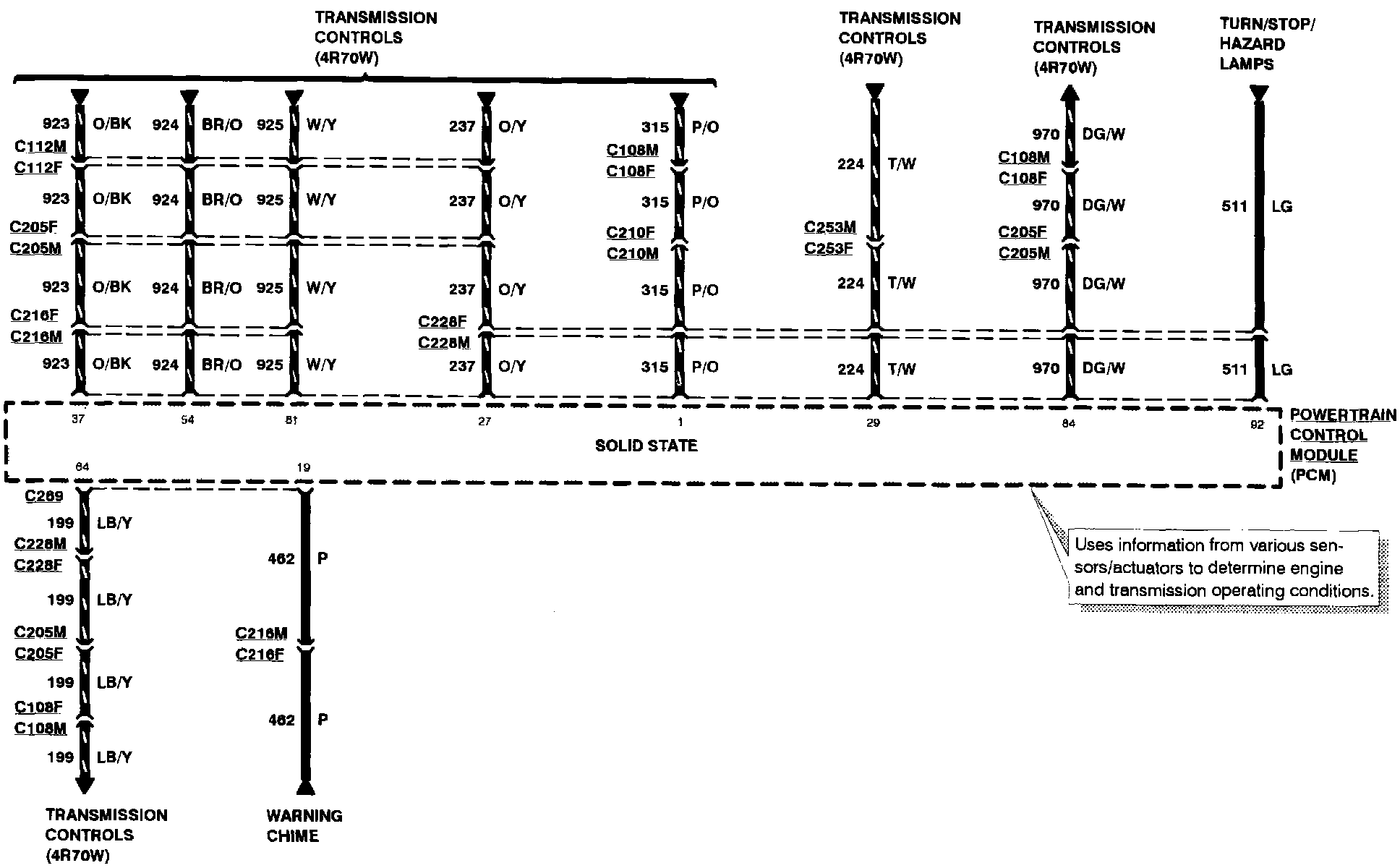

Electronic Engine Controls (Part 8 Of 8):
