Fuse 3

Fuse 3 - protects the following circuits:
- Ignition
- Constant Control Relay Module: PCM Power Relay)

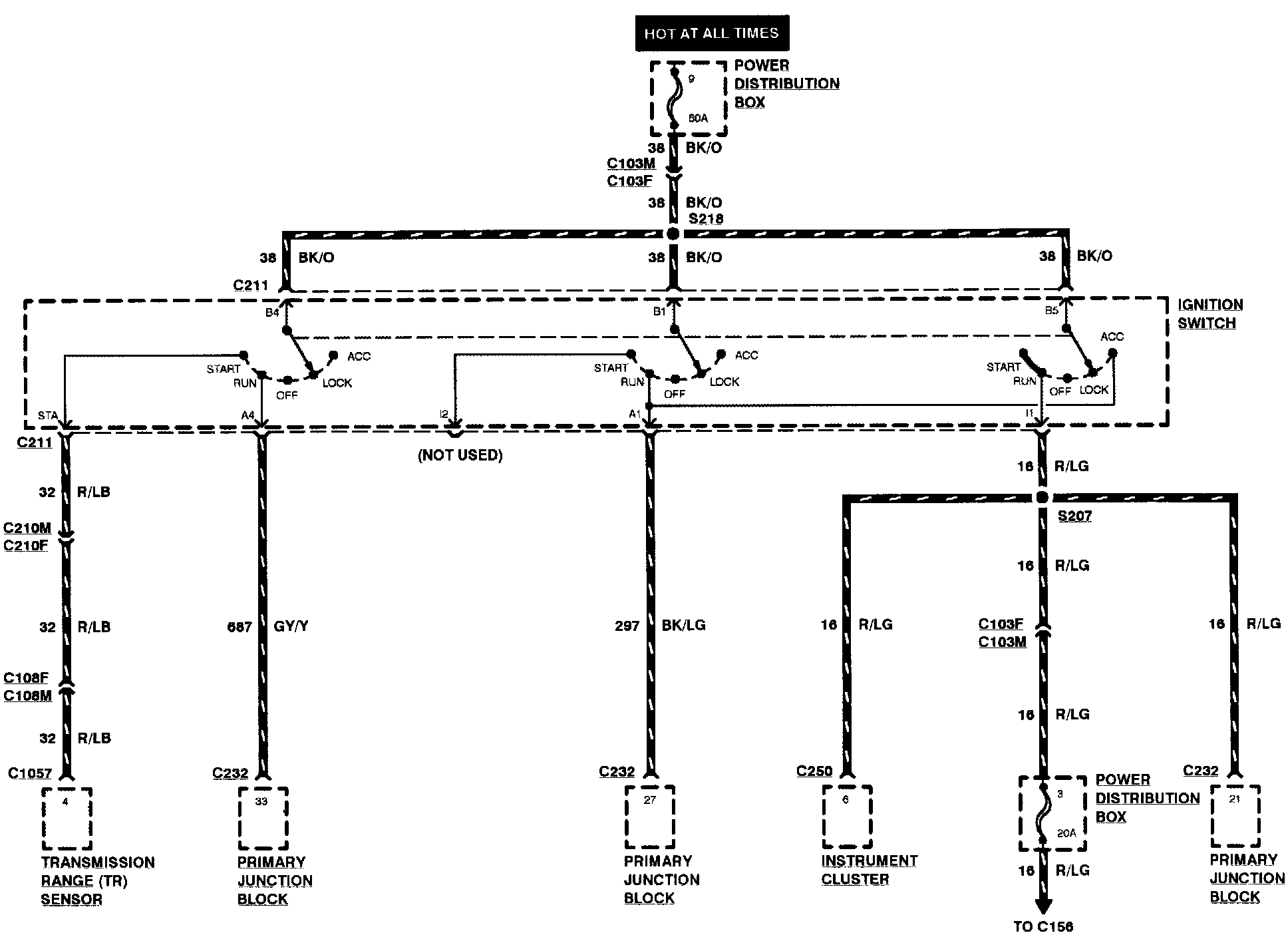

Power Distribution:

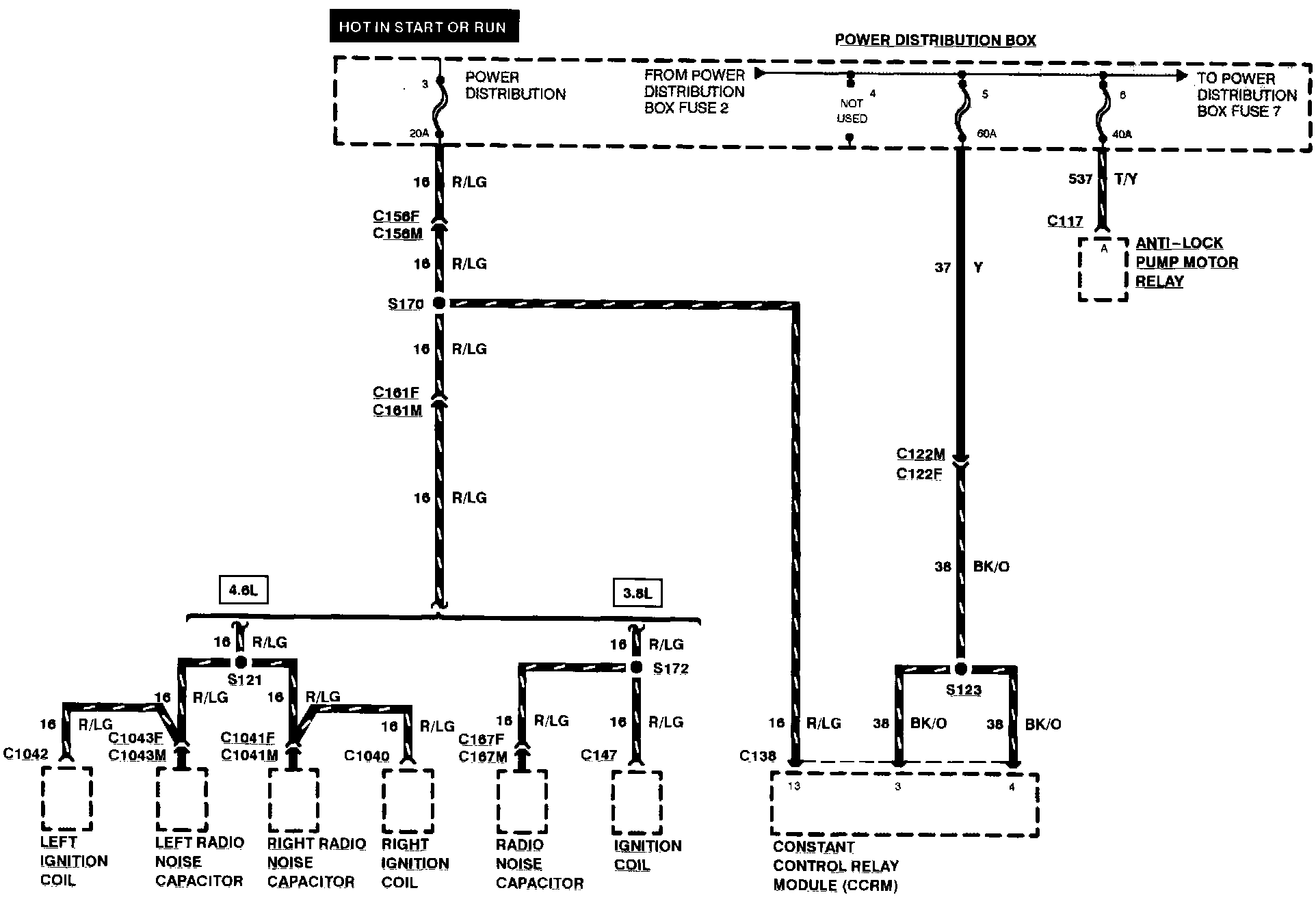

Power Distribution:
