G300

Grounds (G300 & G500):




Grounds (G300 & G500):




Grounds (G300 & G401):

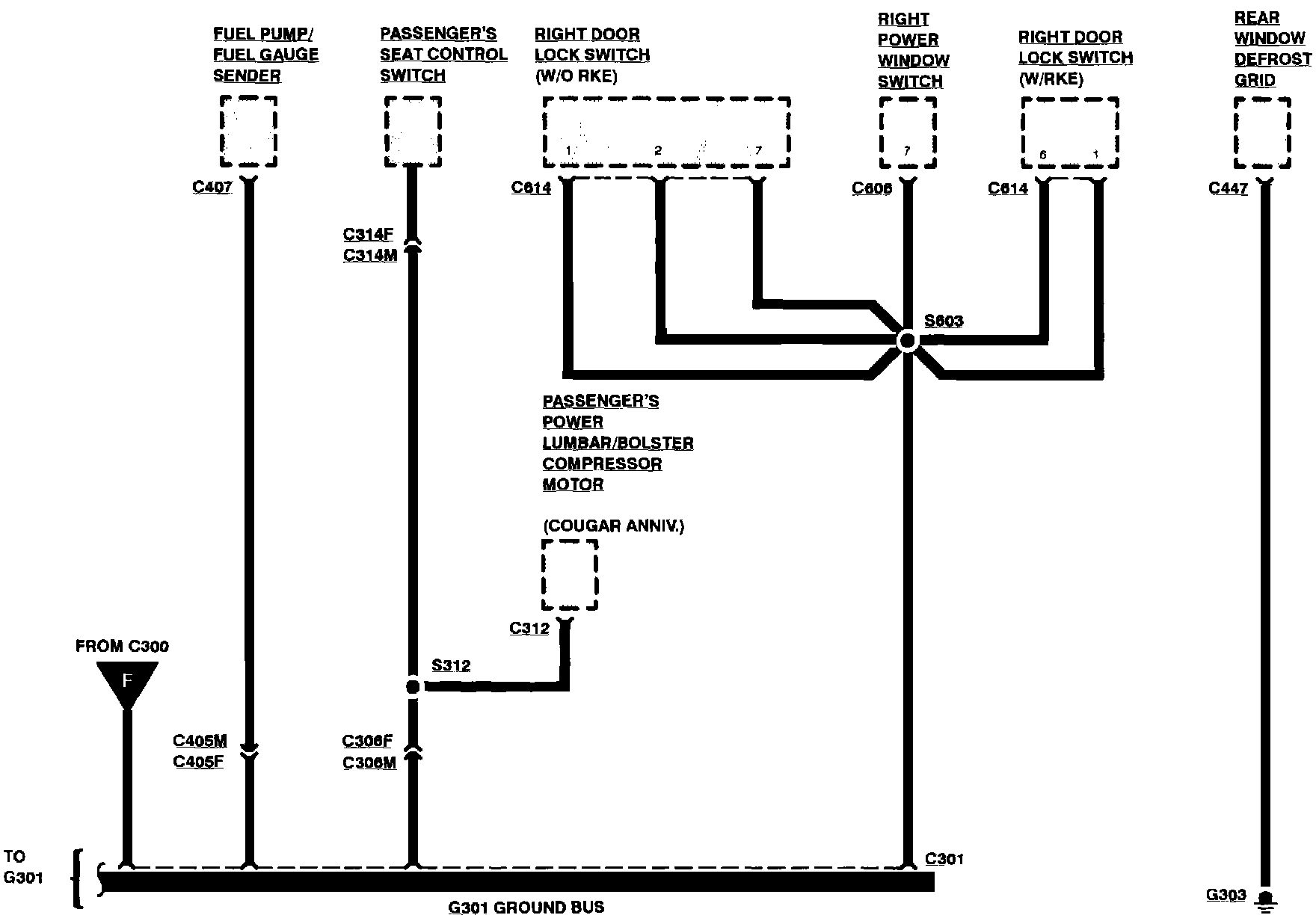

Grounds (G301 & G303):
