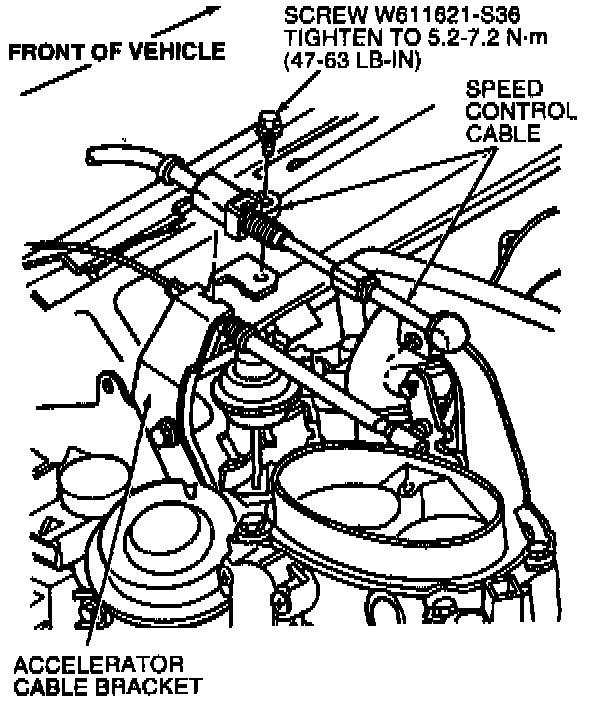

Cruise Control Servo Cable: Adjustments

1. Remove retaining clip from cable adjuster at throttle.
2. Make sure throttle is in fully closed position.
3. Pull on speed control cable to take up slack. Loosen at least one notch so there is approximately 3 mm (0.118 inch) of slack in the speed control cable.

CAUTION: The cable must not be pulled tight, otherwise speed control may not operate properly.

4. Insert speed control cable retaining clip and snap into place.
5. Check that throttle linkage operates freely and smoothly.
