Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> L ABS Warning Lamp OFF, Brake Lamp ON, Brake Wear Checked

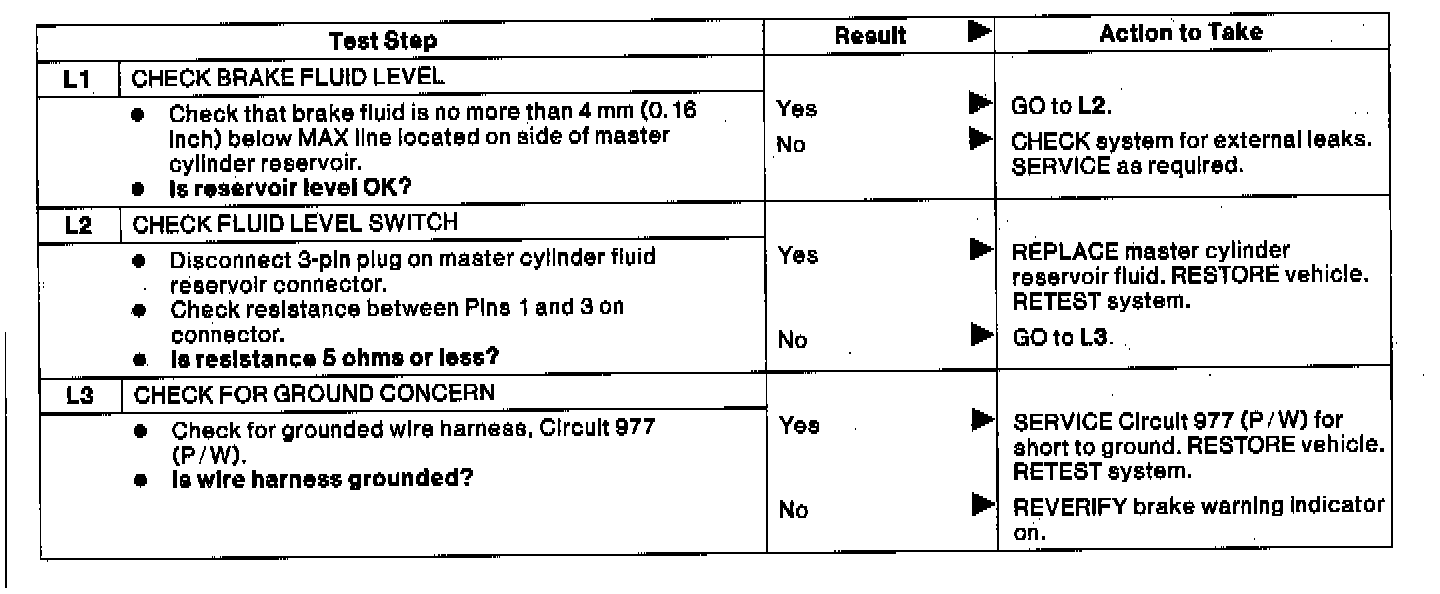

L ABS Warning Lamp OFF, Brake Lamp ON, Brake Wear Checked
