Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Manufacturer Code Charts
>>
19 - Isolation Valve No. 2 and Circuit
19 - Isolation Valve No. 2 and Circuit

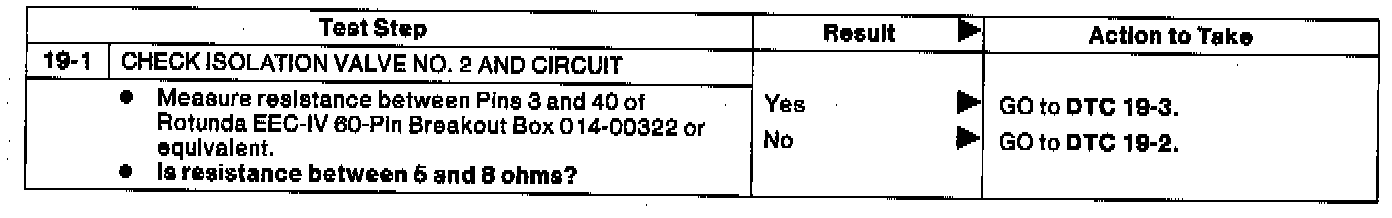

(Part 1 Of 2):

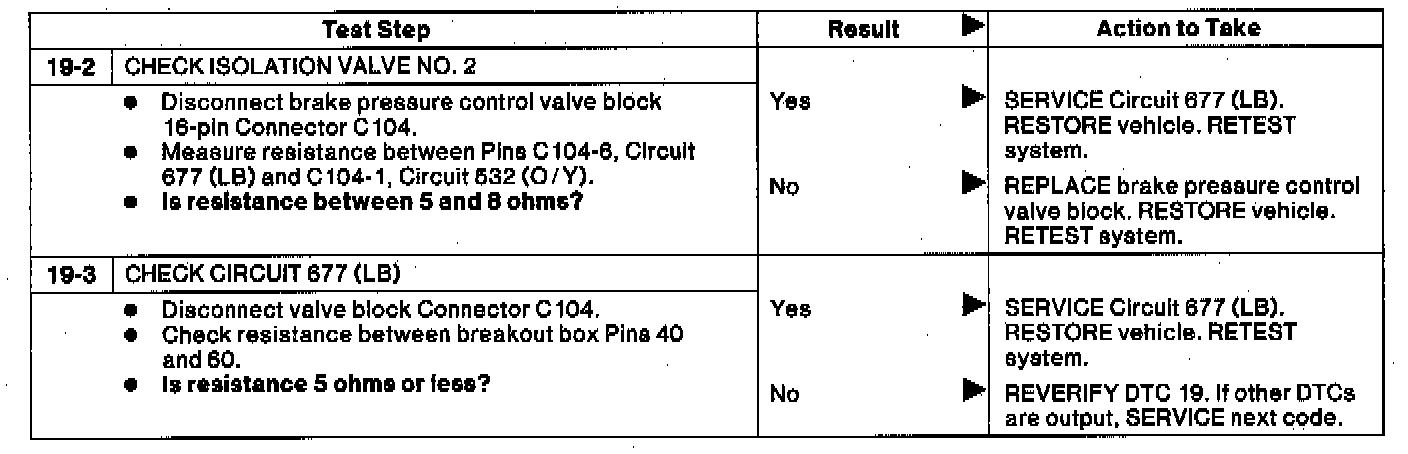

(Part 2 Of 2):
